MSI RTX 4070 Ti SUPER Ventus 3X Graphics Card Review

The Nvidia RTX 4070 Ti SUPER addresses the RTX 4070 TI’s shortcomings by adding more cores, and more VRAM while maintaining the same power and surprisingly a lower price. One thing that the RTX 4070 Ti SUPER has in common with the RTX 4070 Ti apart from the 285W TGP, and 2.61GHz boost speed is that both have no Founders Edition model. Thus we have the MSI RTX 4070 Ti SUPER Ventus 3X to see if it’s worth the Php 55,420 SRP.

DISCLOSURE NOTICE

MSI and Nvidia found a 5% performance discrepancy among RTX 4070 Ti SUPER GPUs and we were informed and given a vBIOS update which supposedly brought its performance closer to what the RTX 4070 Ti SUPER should be. Our benchmark results are now using the latest vBIOS which according to Nvidia, should now only have about a 3% variance.

Nvidia RTX 40 SERIES SPECS

Nvidia GeForce RTX 4070 Ti SUPER

As mentioned earlier, the Nvidia GeForce RTX 4070 Ti SUPER doesn’t have a Founders Edition variant like the previously launched RTX 4070 Ti. Like the RTX 4070 SUPER, the RTX 4070 Ti SUPER has a spec bump compared to its non-super counterpart albeit in a measly 10-percent increase compared to the 70 SUPER’s 20-percent uplift. That said, the RTX 4070 Ti SUPER is the only RTX 40 SUPER card to come with an increased memory of 16GB GDDR6X coming from the non-super’s 12GB GDDR6X config. The core count increase and the larger memory seem to not impact power consumption as we still have the same 285W TGP and 700W PSU requirement.

MSI RTX 4070 Ti SUPER Ventus 3X – Unboxing and Overview

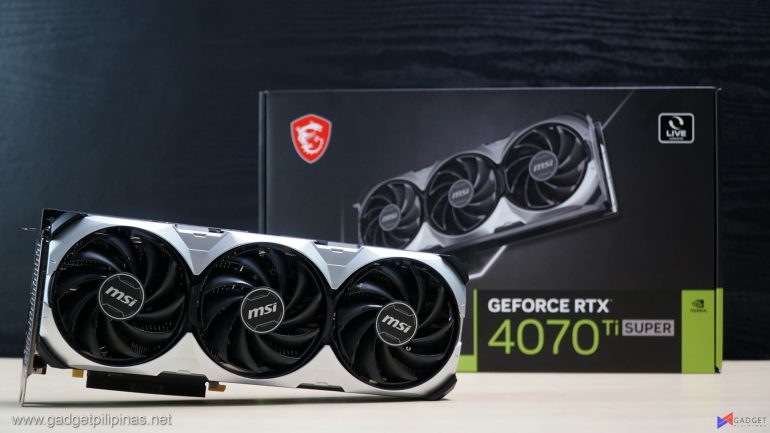

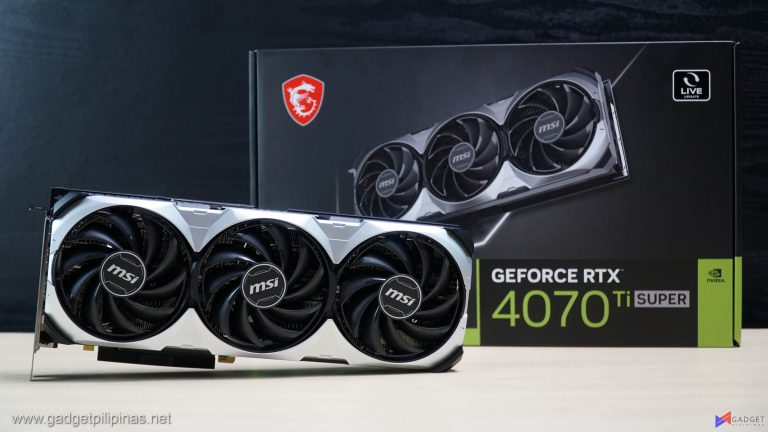

Unlike most GPU packaging we see these days, the MSI RTX 4070 Ti SUPER Ventus 3X has a render of the GPU in the front showcasing the triple-fan setup with a very plain background. The back shows more about the Ventus 3X cooler as well as Nvidia GeForce GPU features.

MSI includes an anti-sag graphics card holder apart from the 12VHWPR adapter. Unlike most anti-sag holders, the one included on the MSI RTX 4070 Ti SUPER Ventus 3X is installed via the PCIE bracket and supports the full length of the GPU.

The MSI RTX 4070 Ti SUPER Ventus 3X comes in a two-tone design for the cooling shroud. While MSI aimed for some sort of metallic or robotic design, you could easily tell even from a distance that the shroud is made out of plastic due to the finish on the silver part of the shroud.

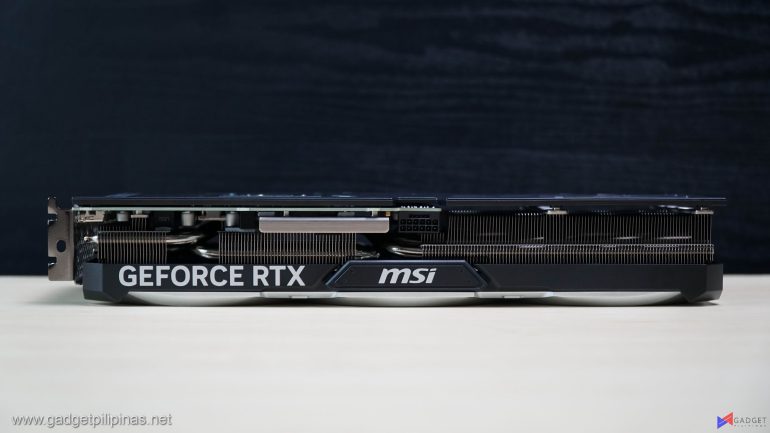

Despite the thin-looking design when viewed from the sides, the MSI GeForce RTX 4070 Ti measures 308 x 120 x 52 mm hence requiring about 3 slots.

The MSI RTX 4070 Ti SUPER Ventus 3X has a full coverage metal backplate despite being an MSRP card. Like most RTX 40 series GPUs, the backplate has a cutout where the PCB ends albeit its one of the smallest cutouts we’ve seen so far.

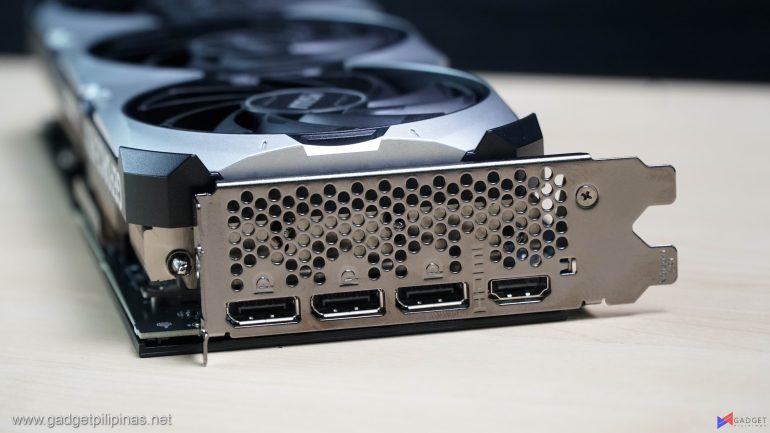

The MSI RTX 4070 Ti SUPER Ventus 3X has the common display outputs namely three Display Port 1.4a ports and one HDMI 2.1 port.

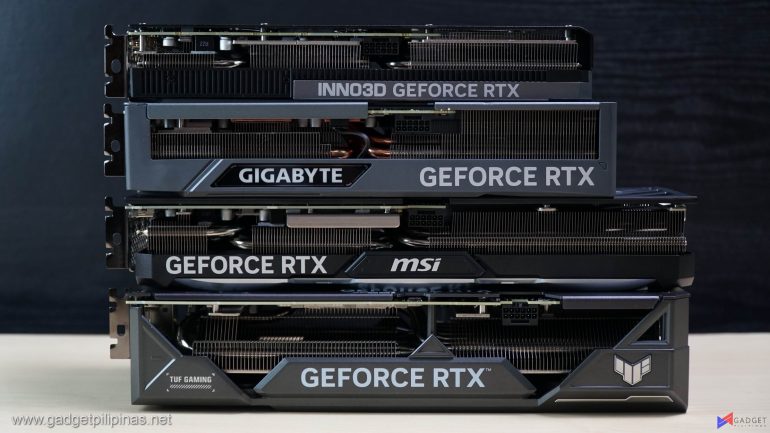

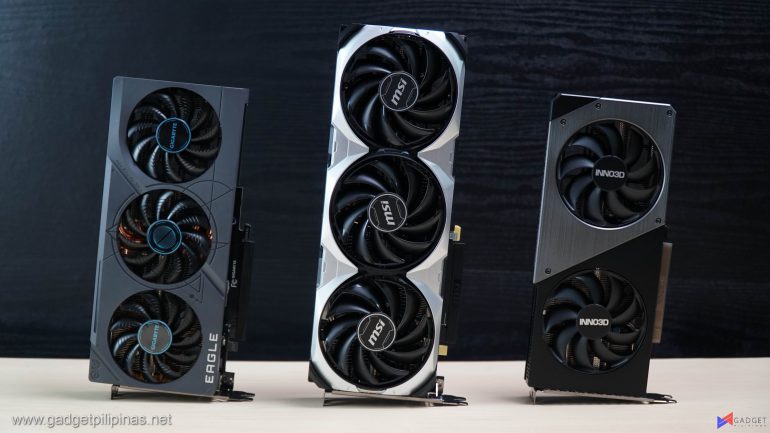

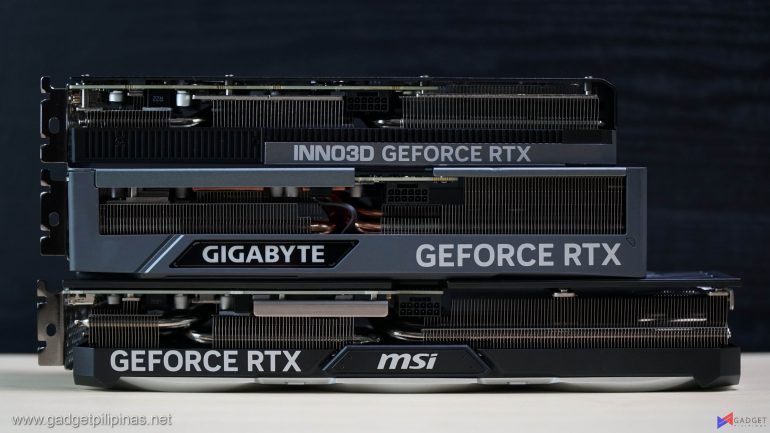

The MSI RTX 4070 Ti SUPER Ventus 3X is the second largest RTX 4070 Ti SUPER GPU in our stack only next to the ASUS TUF Gaming variant. Moreover, it’s the only three-fan MSRP card with the other MSRP card being the Inno3D RTX 4070 Ti SUPER Twin X2 which is also used as our reference RTX 4070 Ti SUPER GPU review.

Benchmark Setup and Test Methodology

Gadget Pilipinas’ testing philosophy is to provide detail-oriented results as accurately as possible so that our readers can replicate our tests given that these conditions are met. Different benchmarking apps and sequences are used depending on the component or device being tested.

We use CapFrameX 1.7.2 Beta as our primary FPS capture and analysis tool for all our gaming benchmarks. The latest build version of Windows 11 Pro and WHQL-certified drivers are used for our benchmarks. Readings such as temperatures and power draws are recorded using HWINFO64, and other relevant software for cross-checking.

For more information read our Benchmark Methodology article.

MSI RTX 4070 Ti SUPER Ventus 3X Synthetic and Productivity Benchmarks

3DMark Firestrike and TimeSpy

3DMark is the go-to benchmark for gamers because of the ability to share and compare results online. We test GPUs both in DX11 Firestike and DX12 Timespy to get a gauge of the performance.

Blender

Blender is a widely used, free, open-source 3D creation suite. It supports the whole 3D pipeline process from modeling, rigging, animation, simulation, rendering, and even motion tracking. Blender has become a standard for CPU benchmarks with the BMW27 and Classroom Scene most used. This prompted the company to release Blender Open Data Benchmark in 2018, a benchmark-specific version allowing users to run a preset benchmark and share the results online like 3DMark.

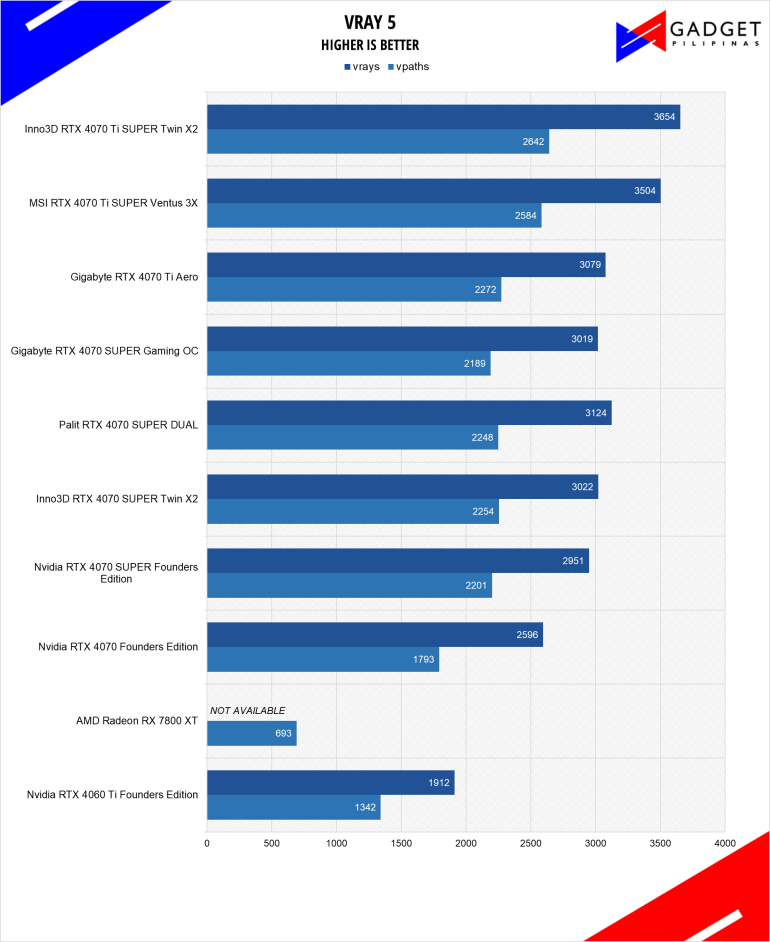

VRAY 5

V-Ray Benchmark is a stand-alone version of V-Ray developed by Chaos Group. It is designed to test the CPU and GPU by rendering sample scenes at a fixed amount of time. V-Ray is a plug-in mostly utilized by 3D computer graphics software applications mainly for industrial design, product design, architecture, film, and video game production. V-Ray is not limited to 64-threads as it supports multi and mega-threading.

GeekBench 6.2.2

Geekbench is a multi-platform benchmark used to gauge CPU performance and compare them across Windows, Mac, and Mobile. Geekbench 6 is the latest version and test are done in both OpenCL and Vulkan to gauge a CPU’s compute performance.

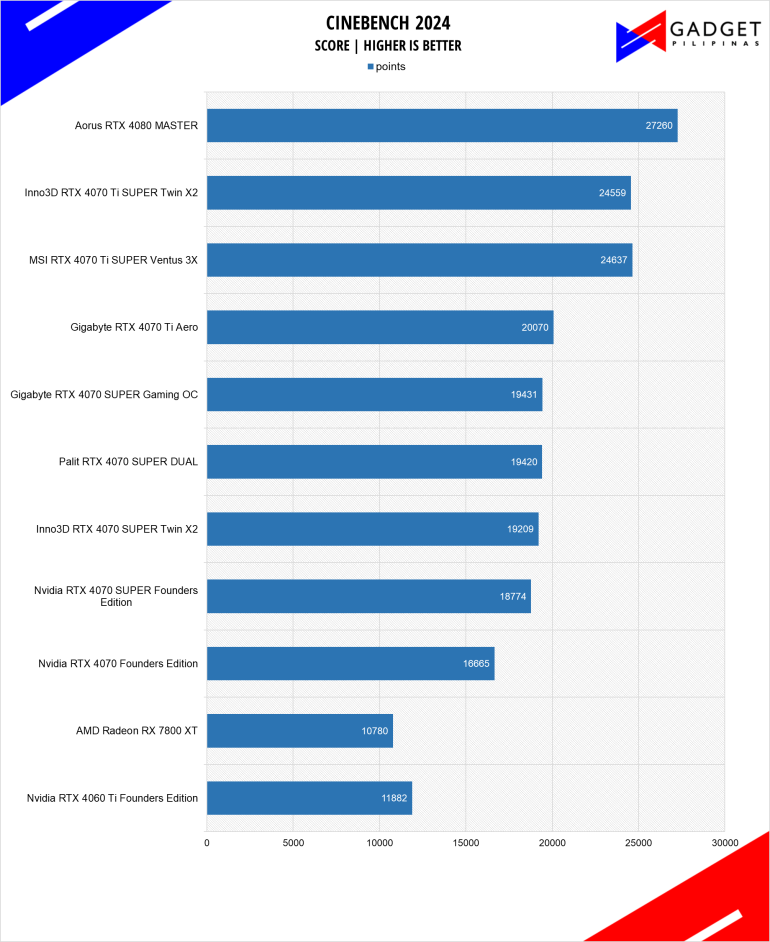

CINEBENCH 2024

Maxon’s Cinebench benchmark is one of the most iconic benchmark applications used by reviewers and enthusiasts. The latest Cinebench 2024 now supports GPU rendering benchmarks which is why added Cinebench 2024 in our GPU benchmark suite.

MSI RTX 4070 Ti SUPER Ventus 3X Gaming Benchmarks

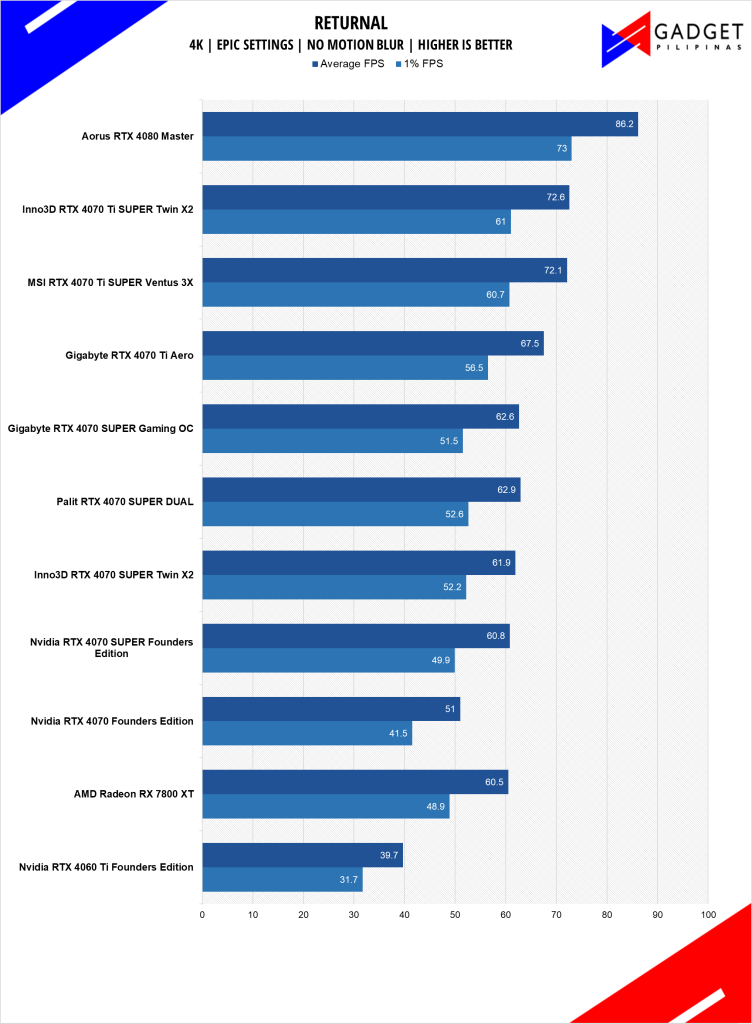

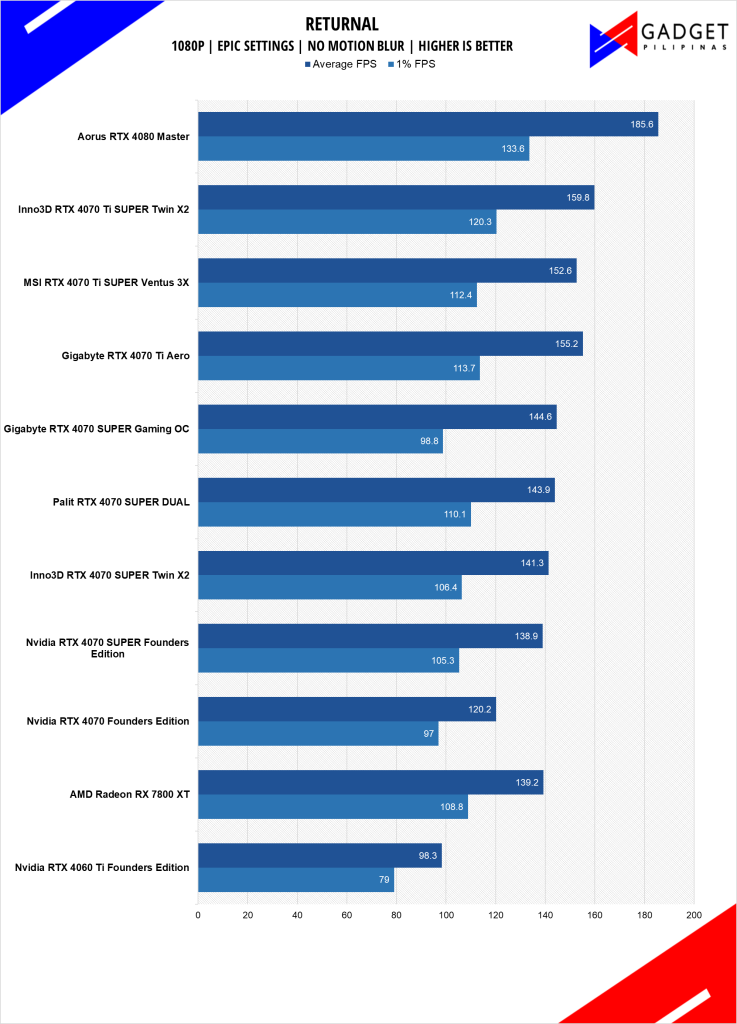

RETURNAL

Returnal is one of the most technologically advanced game since the launch of Cyberpunk 2077. Released last April 2021 on PS5 and February 2023 on PC, it uses Unreal Engine 4 and supports multiple technologies such as Ray Tracing, DLSS, VSR, and FSR.

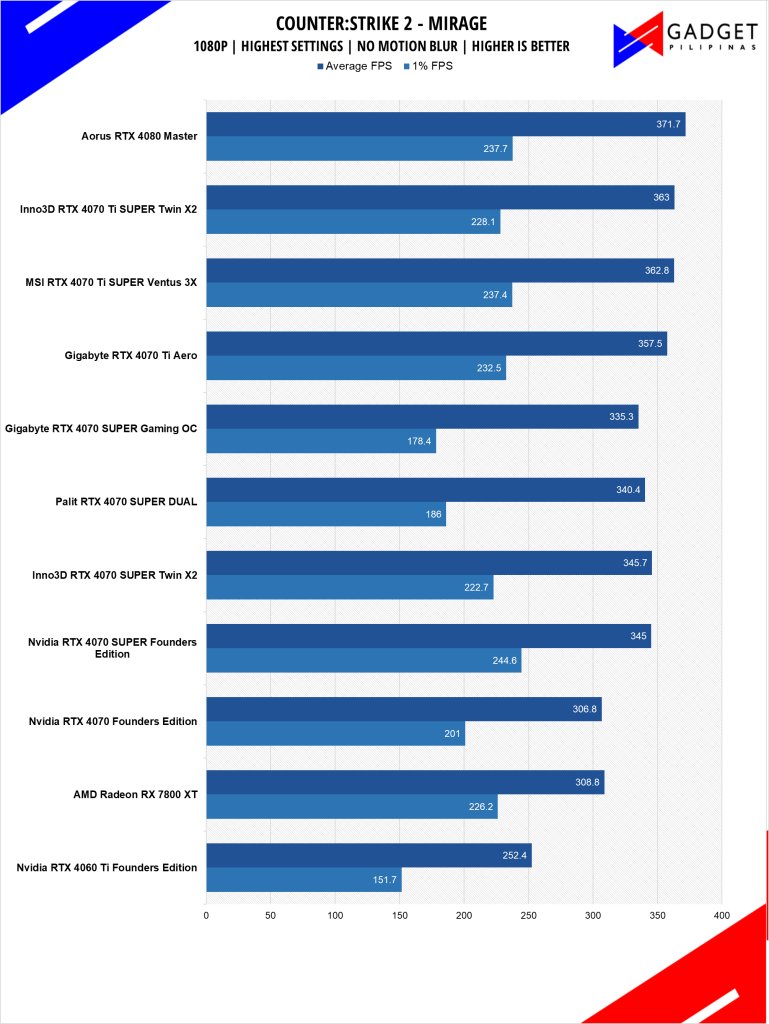

COUNTERSTRIKE 2

CounterStrike 2 or CS2 is a the successor to the now retired CSGO and now uses the Source 2 Engine – the same engine used on DOTA 2. CS2 is a great FPS game to test out CPU performance. Our benchmark process uses a the replay function of the game.

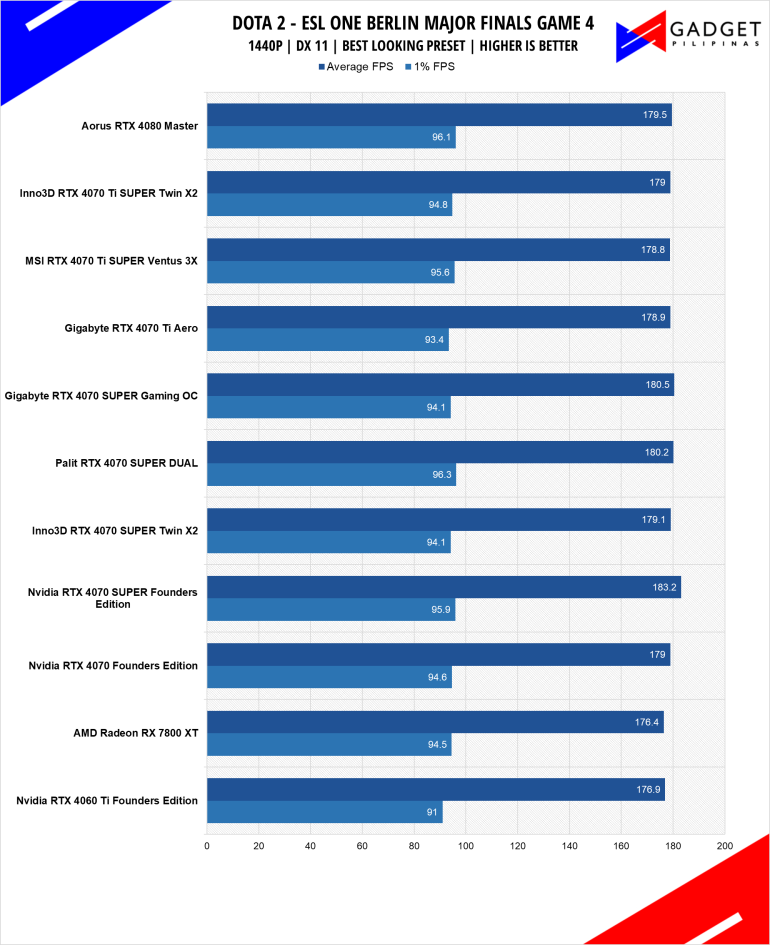

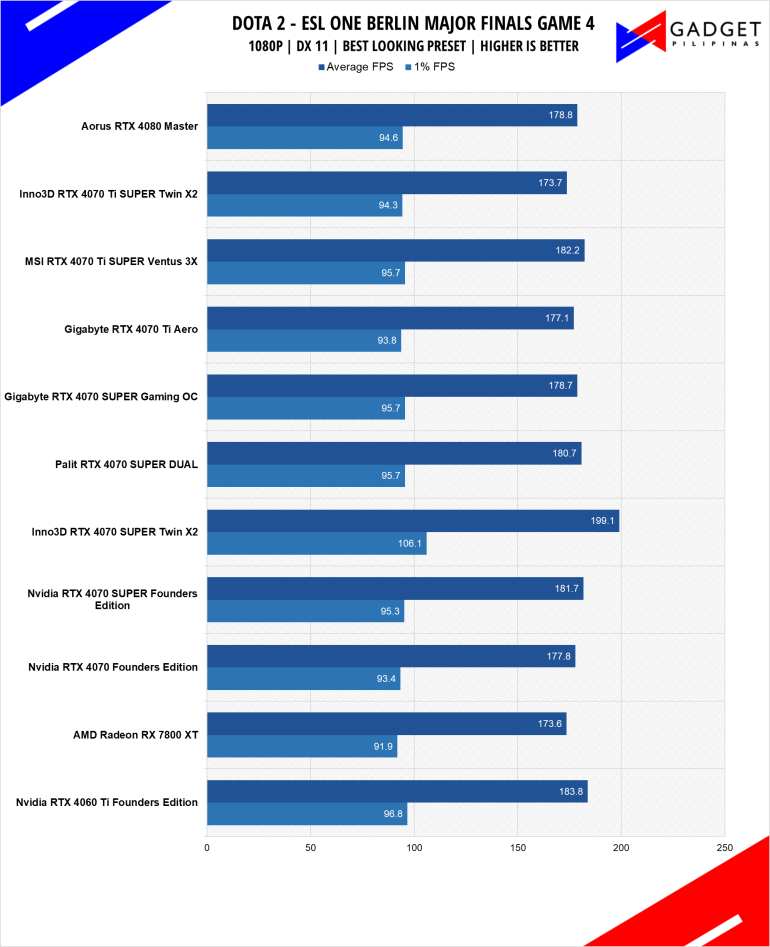

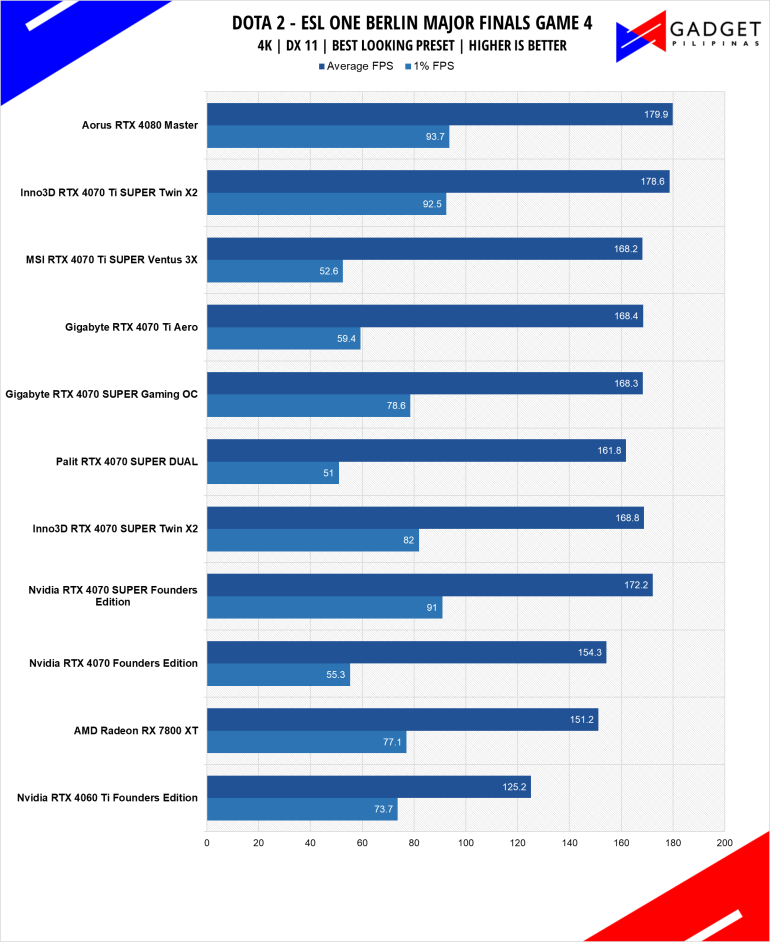

DOTA 2

Dota 2 is a good repesentation among F2P titles especially MOBAs and RTS as it lands on the demanding side of the spectrum. Its gameplay and quality of life updates are far more frequently than most F2P titles thanks to its vast popularity. Our benchmark sequence is based on a replay of OG vs. Gaimin Gladiators in the ESL ONE Berlin Major Finals Game 4 from the team fight that happened from 23:00 to 24:00.

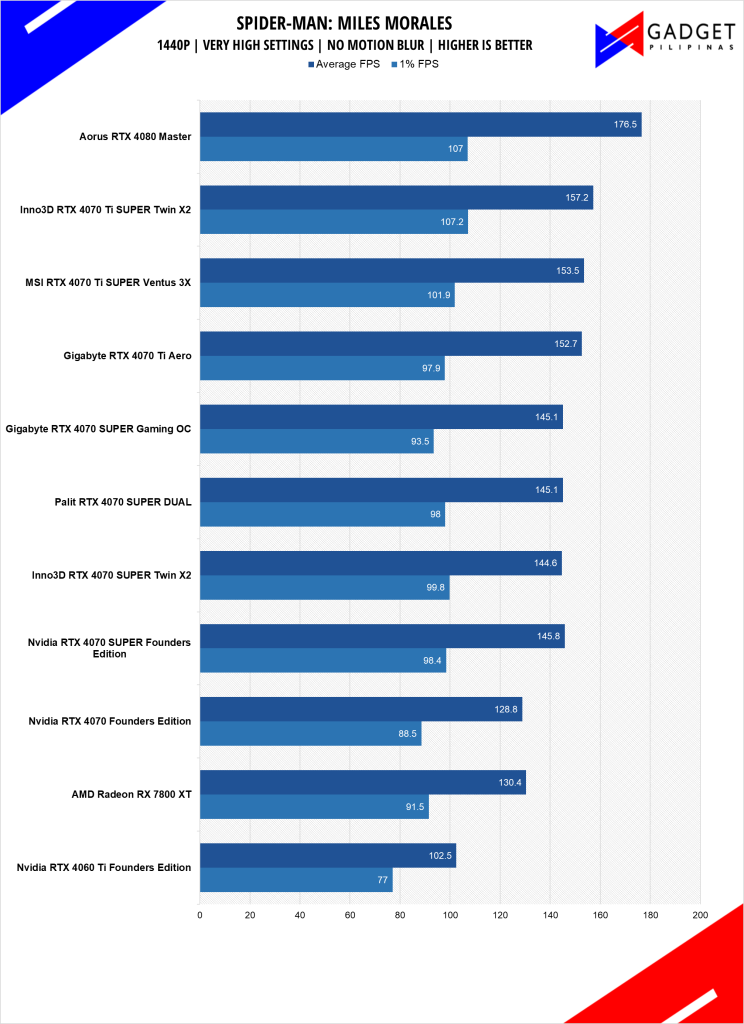

SPIDER-MAN: MILES MORALES

Marvel’s Spider-Man: Miles Morales is developed by Insomniac Games and published by Sony is one of the most popular PC port titles last 2022. It’s one of the few modern game titles that support upscaling technologies FSR, DLSS, and XeSS making it a great title to use for benchmarks.

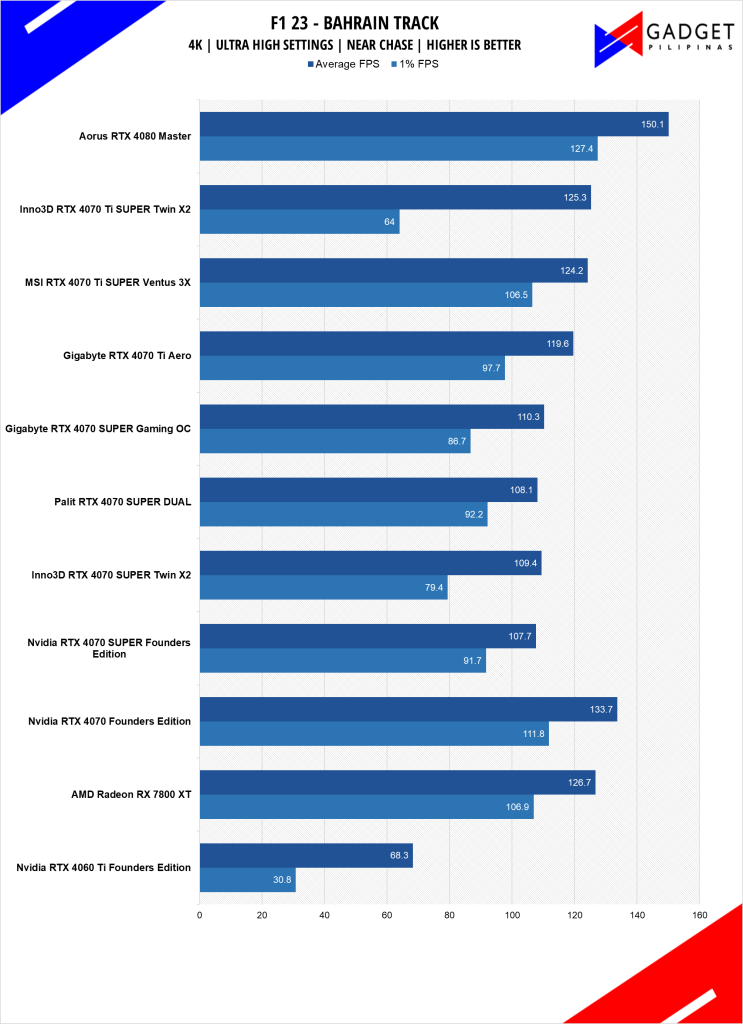

F1 23

F1 23 is the official video game of the 2023 Formula One and Formula 2 championships developed by Codemasters. F1 2023 is the sixteenth installment in the franchise and uses the Ego Engine 4.0. F1 233 is a good representation of racing games thanks to its realistic graphics and fairly demanding spec requirements as well as support for Ray Tracing and the latest upscaling technologies such as DLSS, XeSS, and FSR.

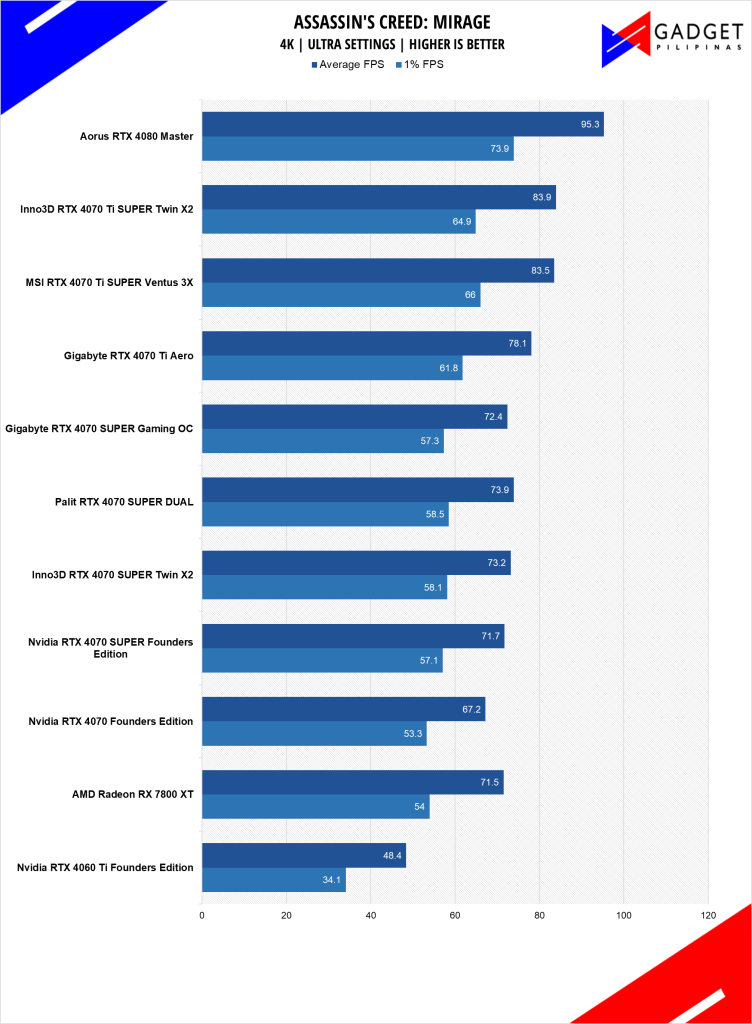

ASSASSIN’S CREED: MIRAGE

Assassin’s Creed Mirage is the latest Assassin’s Creed game from Ubisoft making it the thirteenth major installment in the franchise. It uses the AnvilNext 2.0 game engine and is the very first AC game to support the latest upscaling technology such as XeSS, FSR, and DLSS.

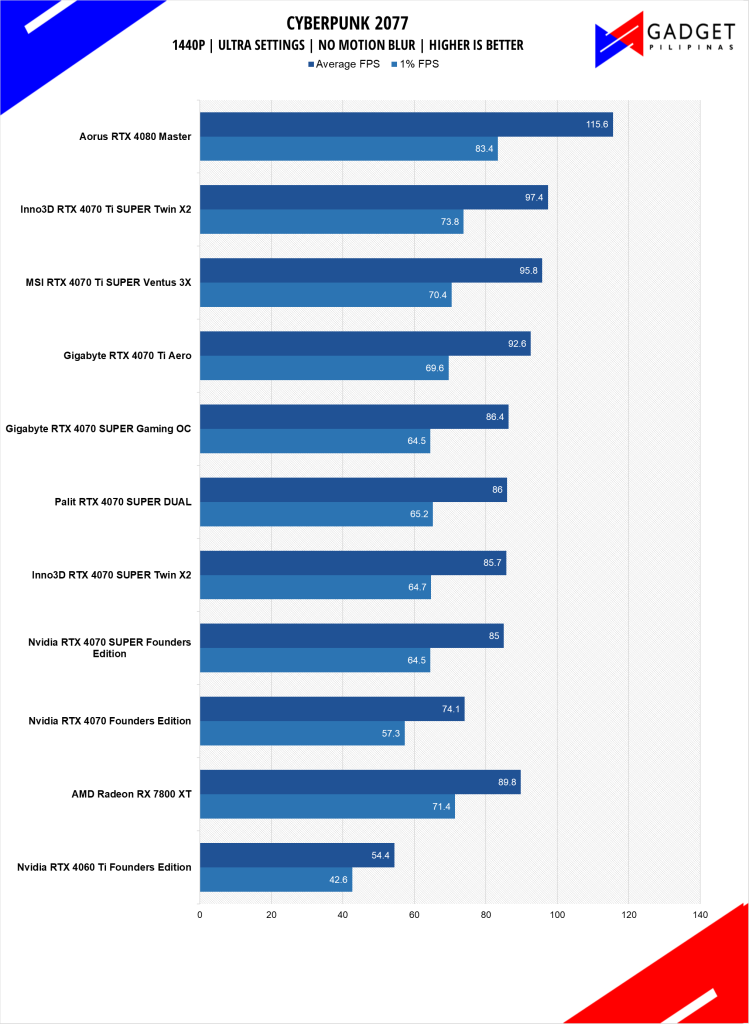

Cyberpunk 2077

Cyberpunk 2077 is arguably the most hyped game of 2020. Developed by CD Projekt Red, the dystopian open-world, action-adventure RPG sports is one of the most demanding titles to date. Cyberpunk 2077 also supports three Ray Tracing settings as well as DLSS which makes the game a great tool to measure Ray tracing performance for both AMD and Nvidia graphics cards.

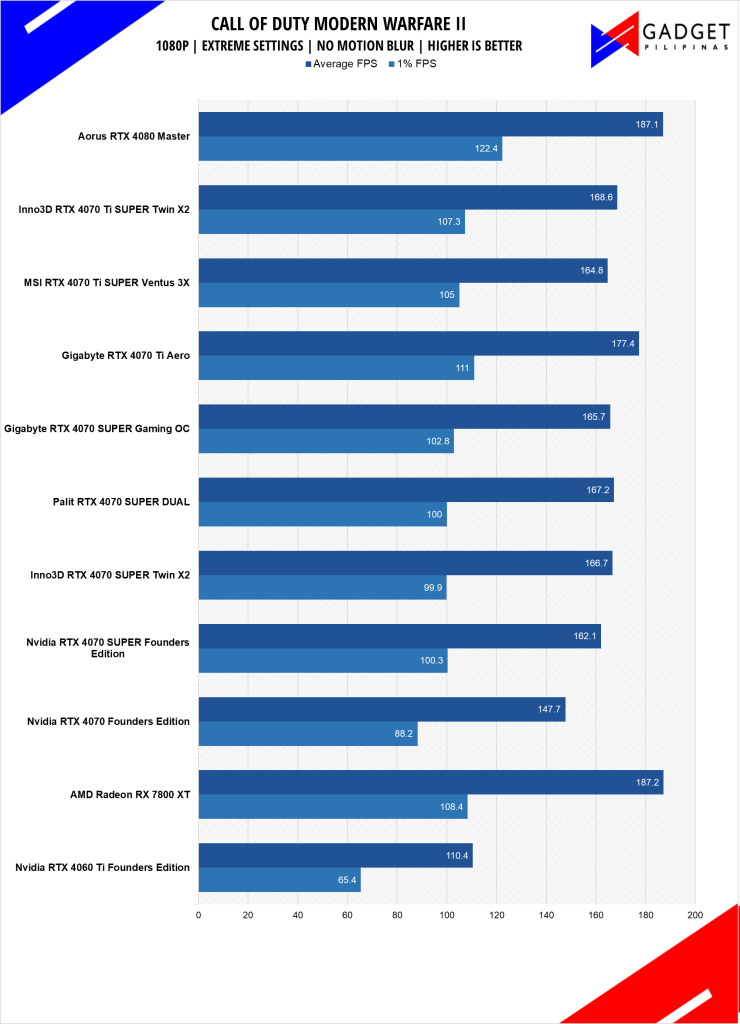

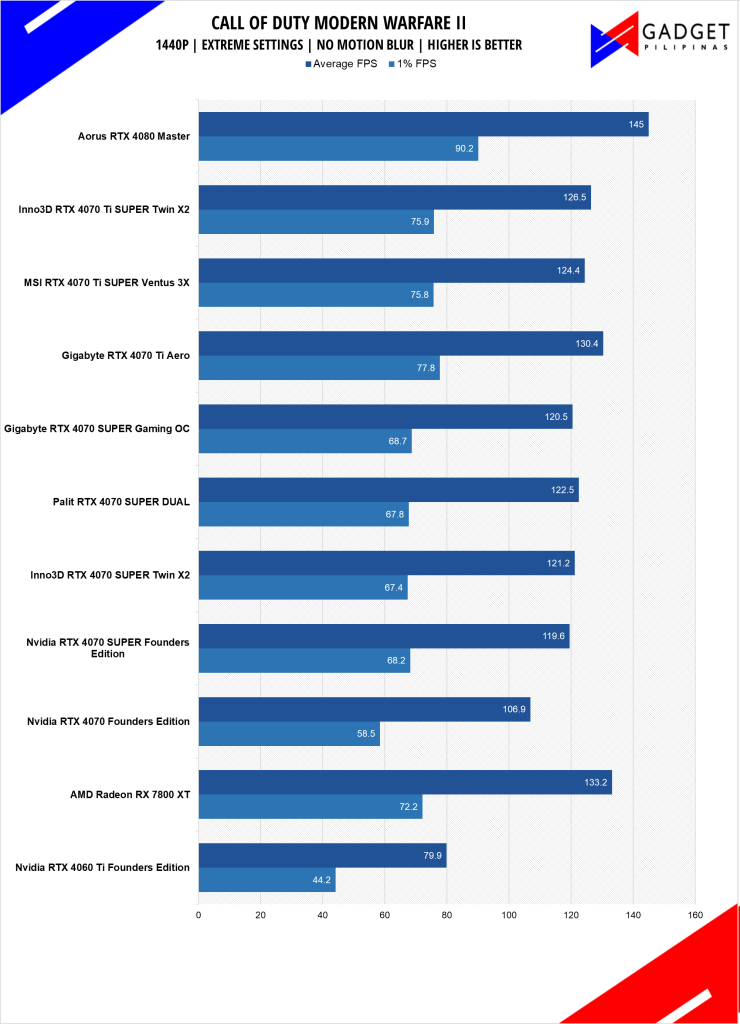

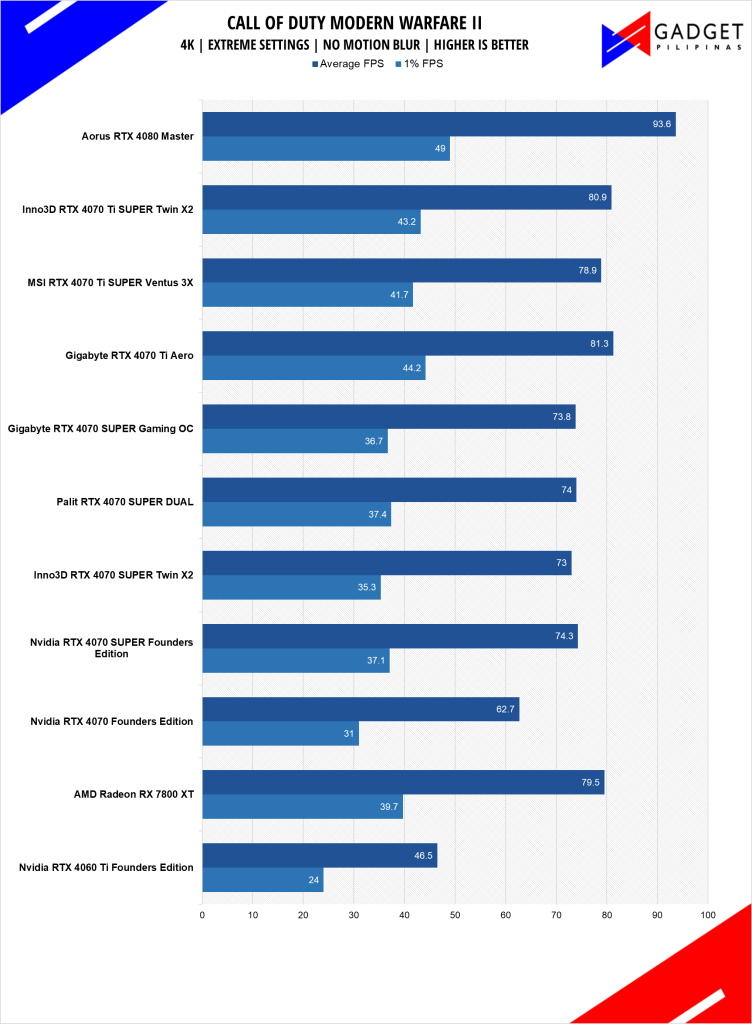

CALL OF DUTY MODERN WARFARE

The latest installment in the Call of Duty franchise is a sequel to the much-loved Modern Warfare game that launched in 2019. Call of Duty Modern Warfare II is one of the most demanding titles to date, pushing the latest hardware from Intel, AMD, and Nvidia. CODMW2 is one of the few games that comes with the DLSS feature without Ray Tracing.

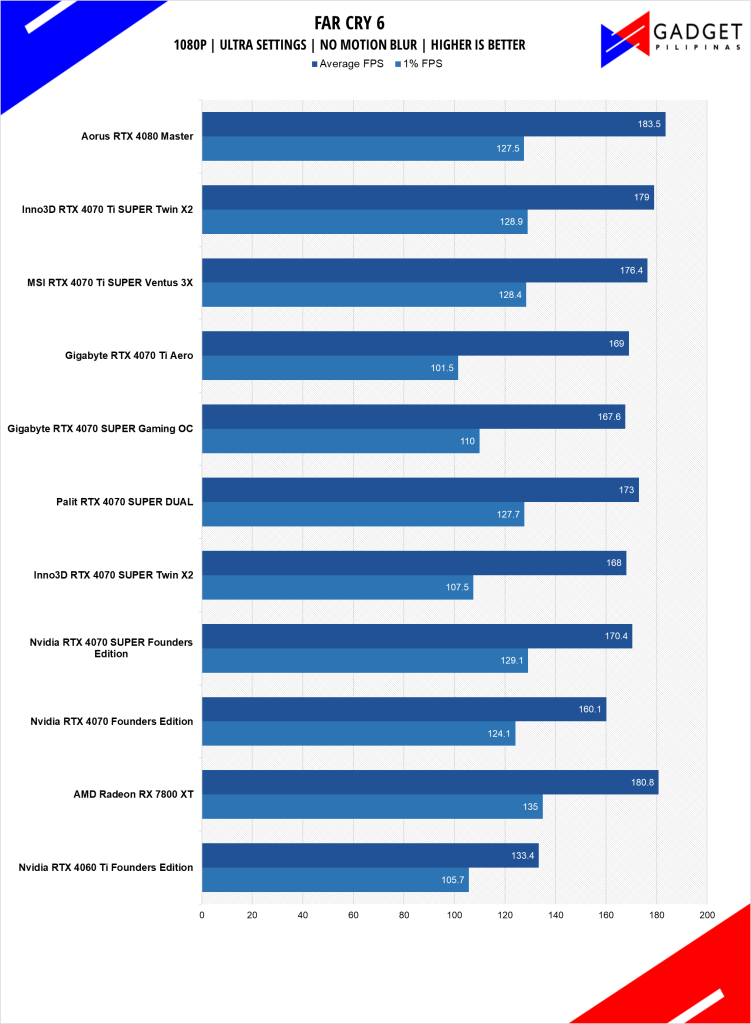

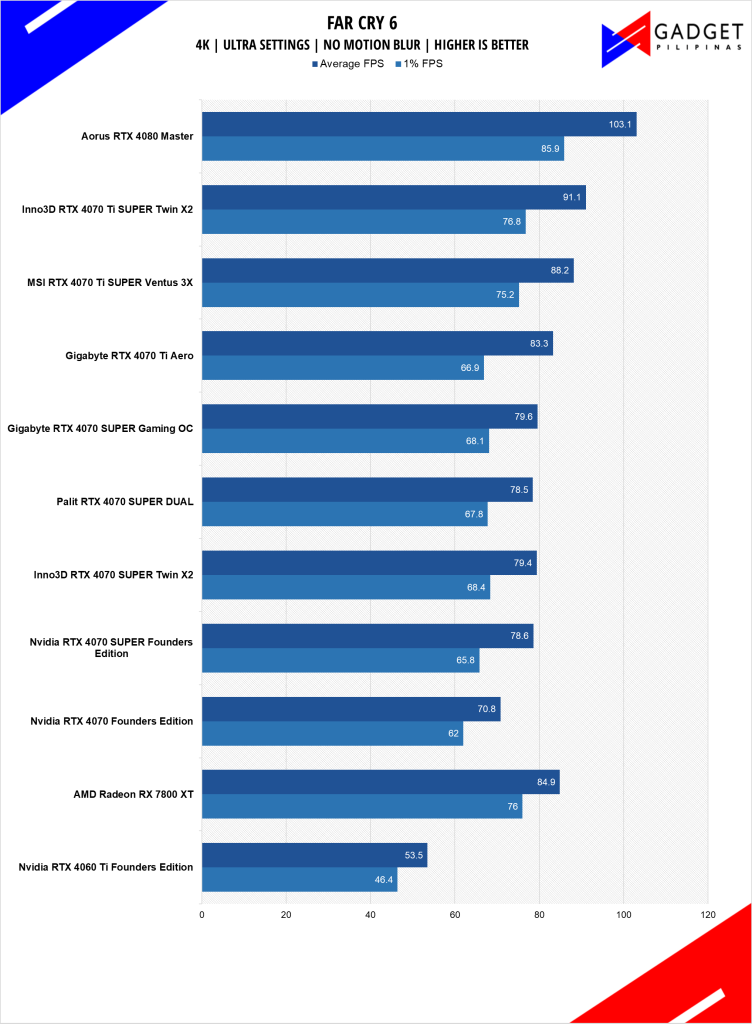

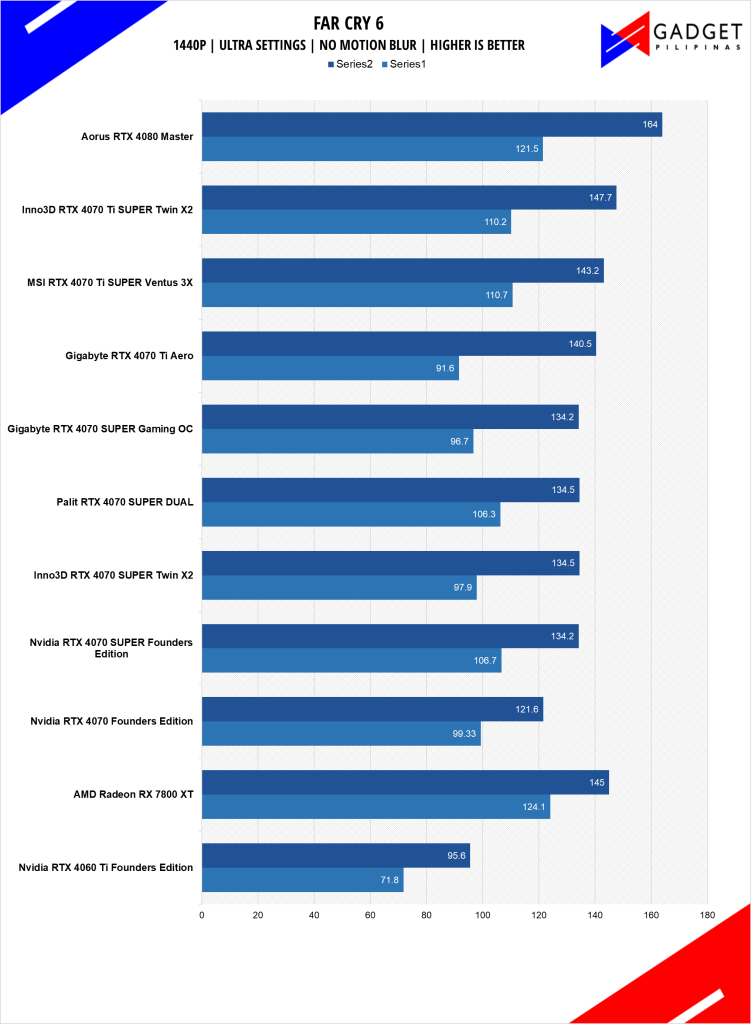

Far Cry 6

FarCry 6 is an FPS game published by Ubisoft and uses the Dunia engine. It heavily relies on and takes advantage of DirectX 12 to render a realistic environment that makes it taxing to both the CPU and GPU. It’s also the first game of the franchise to support Ray Tracing.

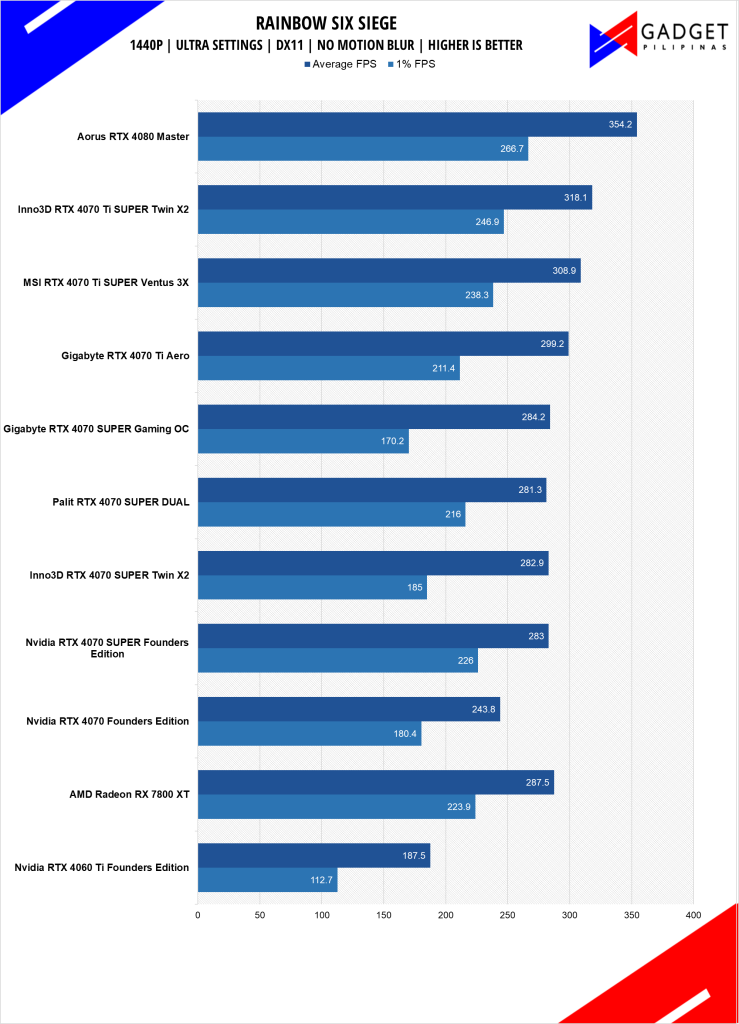

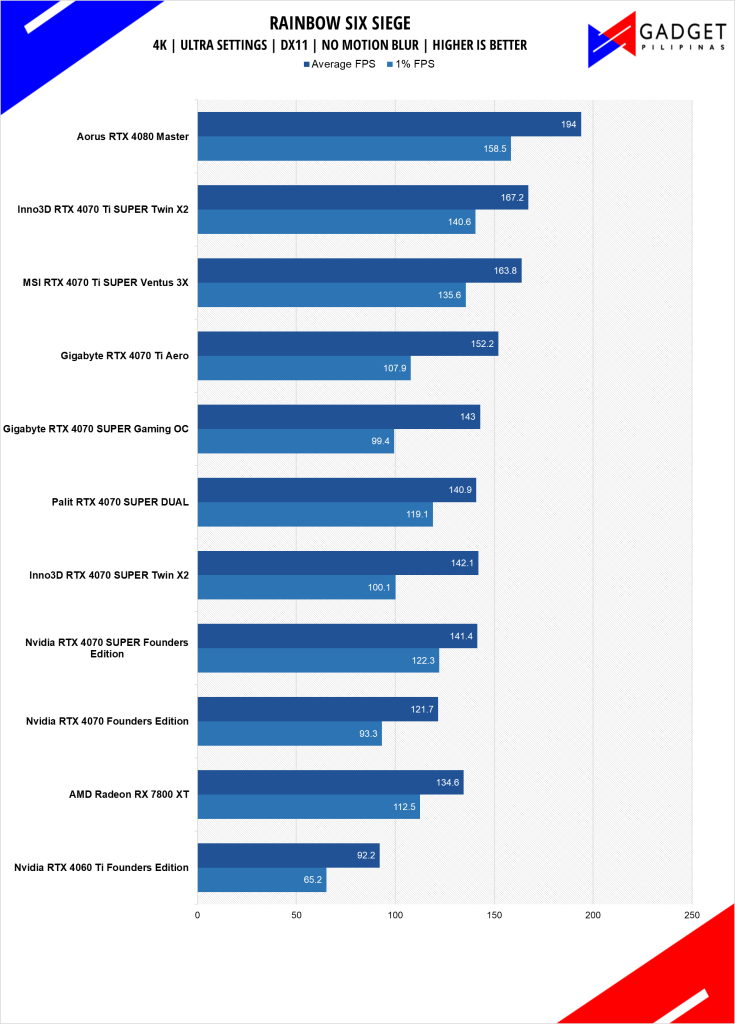

Rainbow Six Siege

Rainbow Six Seige is one of the few popular AAA games that’s still popular in 2021 due to its competitive gameplay mechanics. R6S uses the AnvilNext game engine, which the game’s publisher, Ubisoft, developed. As of writing, Rainbow Six Siege is currently the most popular Tom Clancy title beating out Wildlands, Breakpoint, and even Division 2.

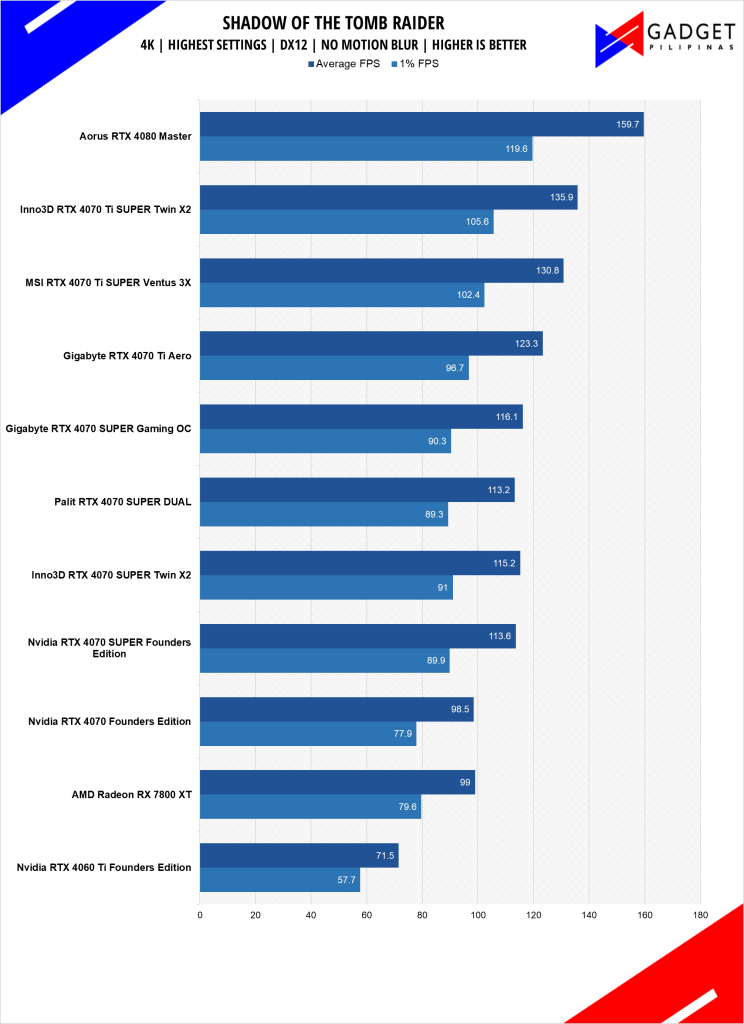

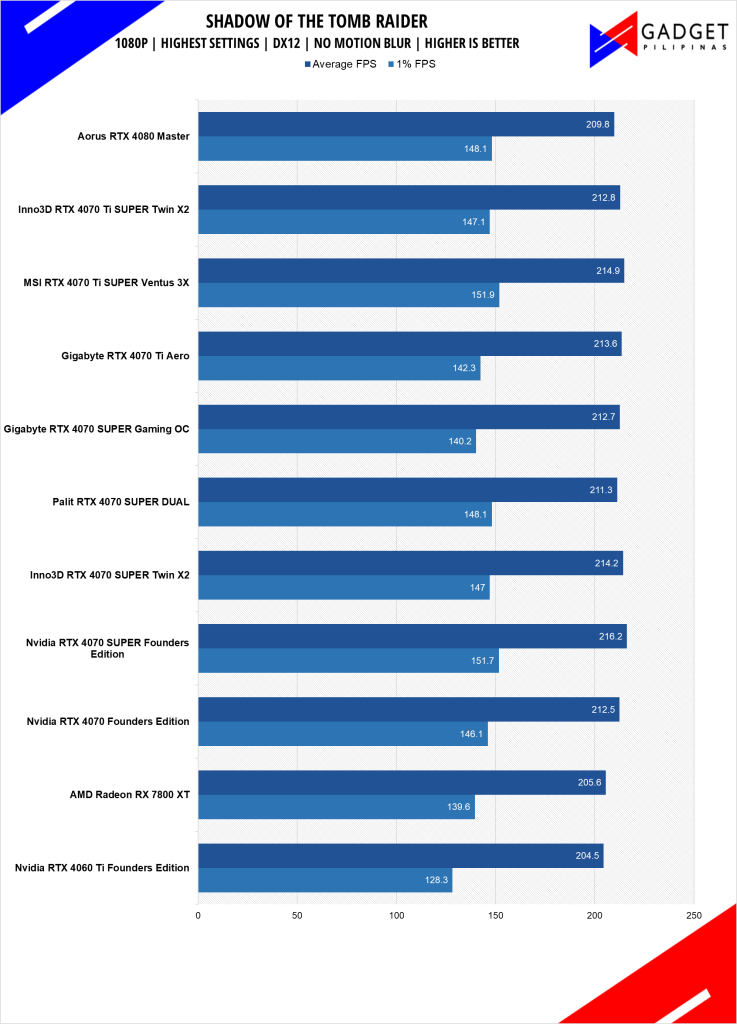

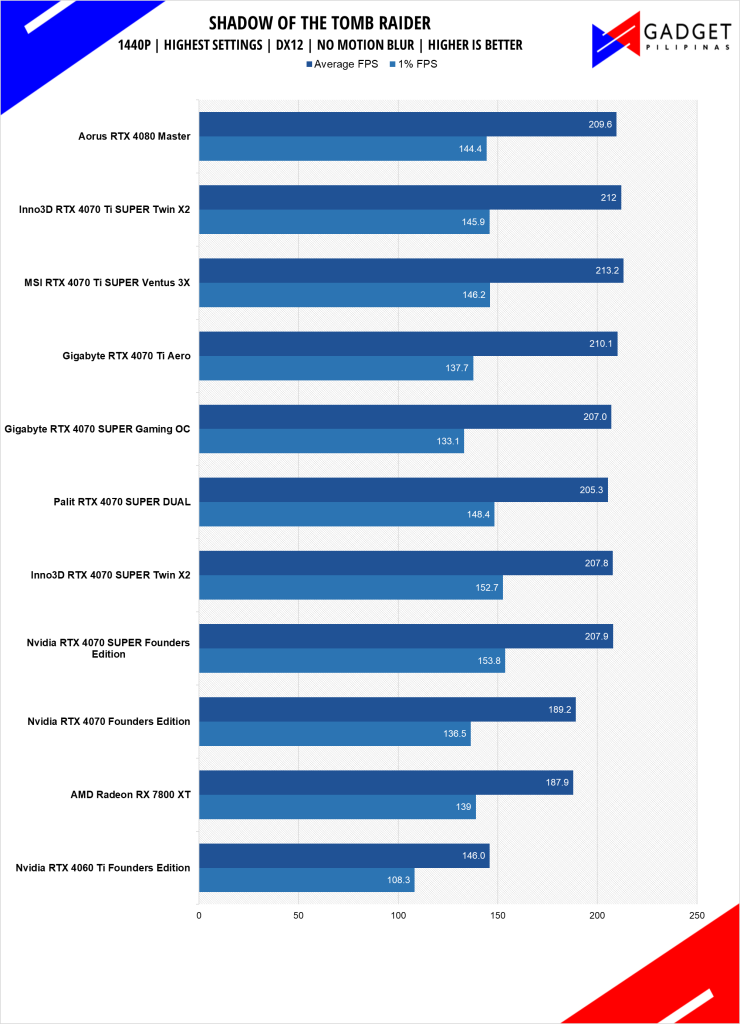

Shadow of The Tomb Raider

Shadow of The Tomb Raider or SOTR is the latest installment of the Lara Croft Tomb Raider franchise. Developed by Square Enix, SOTR uses the Foundation engine and is further enhanced by Eidos Montreal. SOTR is also one of the first games to come out with Ray Tracing and DLSS support.

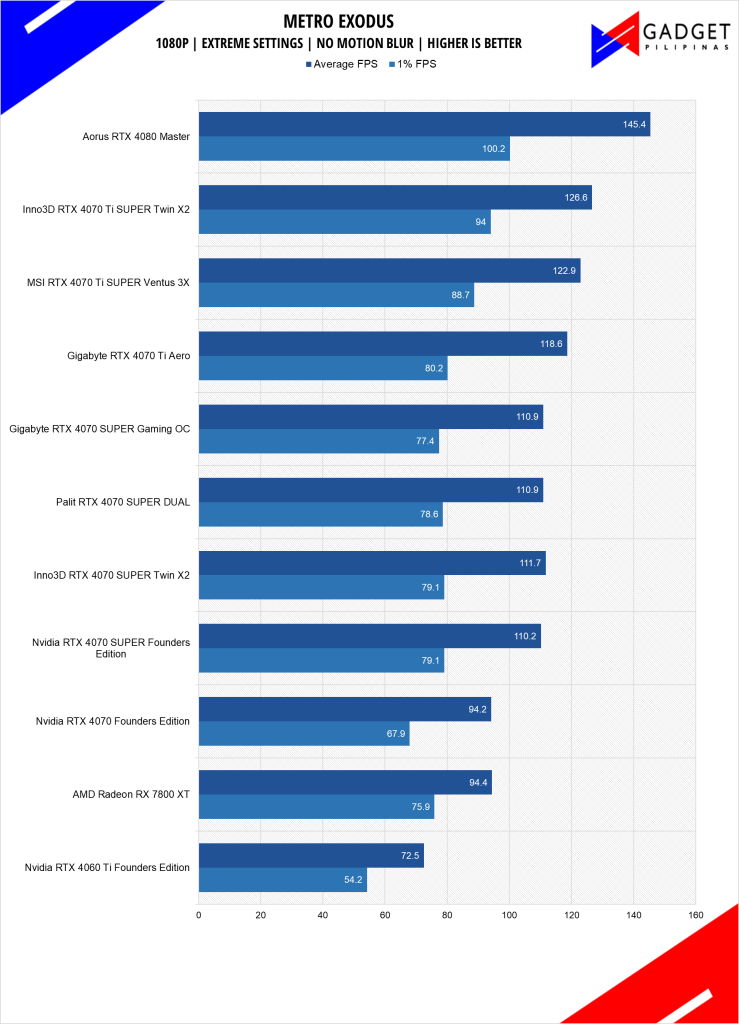

Metro Exodus

Metro Exodus is the third Metro game trilogy based on Dmitry Glukhovsky’s novels. The game is a first-person shooter with survival horror and stealth elements. The post-apocalyptic game uses 4A Engine by 4A games. Released last 2019, Metro Exodus remains to be one of the most graphically pleasing and demanding games that’s popular to date.

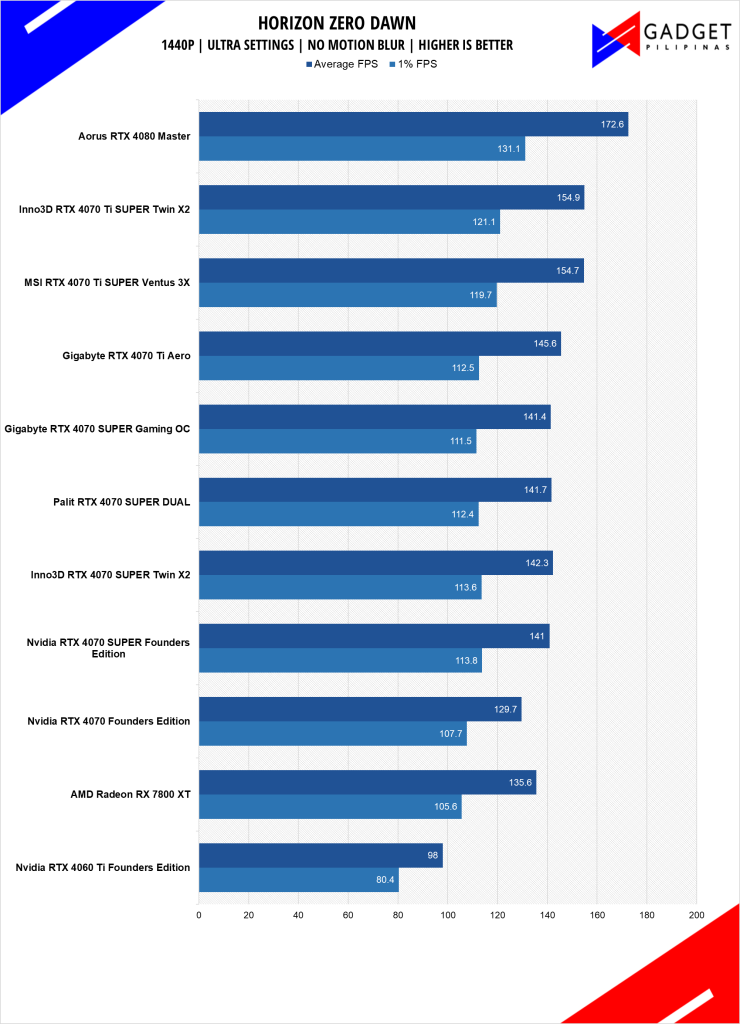

HORIZON ZERO DAWN

Horizon Zero Dawn is one of the most popular console-port RPG developed by Guerilla Games and published by Sony Interactive Entertainment. Horizon Zero Dawn is a multi-award-winning action RPG, and its popularity resulted in an exclusive Complete Edition game bundle on Steam.

MSI RTX 4070 Ti SUPER Ventus 3X Temperatures and Power Draw

Despite the vBIOS performance issue, the MSI RTX 4070 Ti SUPER Ventus 3X had a decent peak temperature of 70.9°C but had the highest idle temp of 37.2°C among Nvidia GPUs in our stack and is the second highest idle temp in our benchmark suite next to the AMD RX 7800 XT.

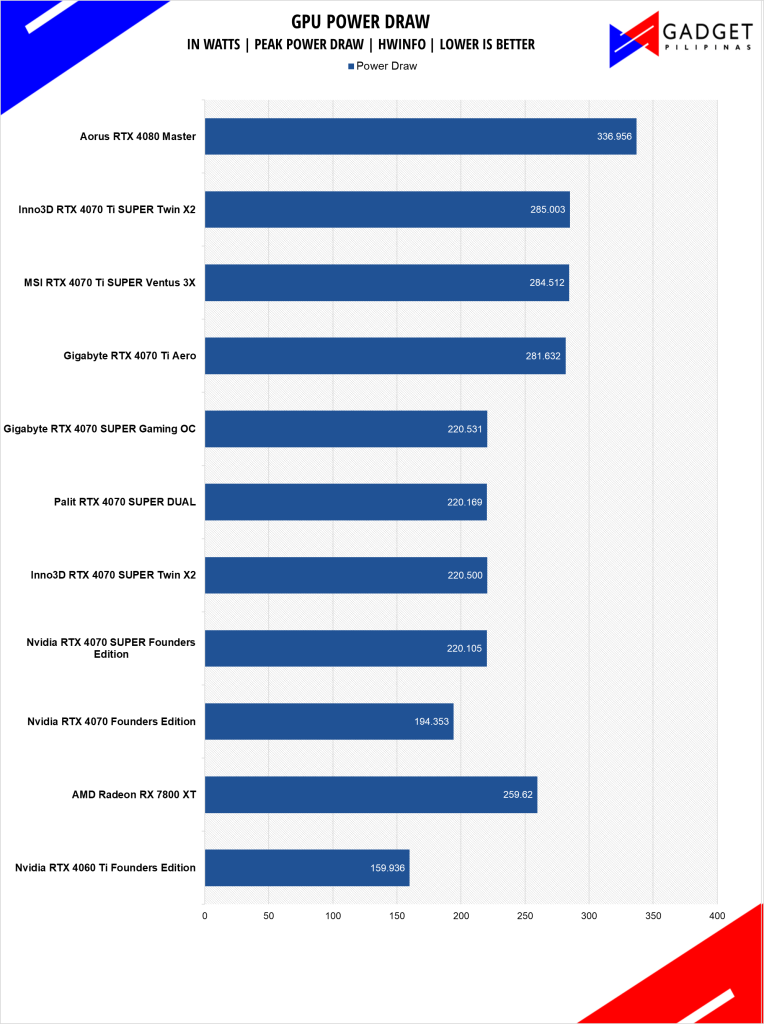

GPU Power draw is relatively okay as it only peaked at 284.512W however other reviews are reporting higher than usual power draw – possibly related to the vBIOS performance issues.

Performance Summary Conclusion

Per our benchmarks, you could see the 3% performance disparity with our other RTX 4070 Ti SUPER MSRP card hurting the MSI Ventus 3X’s numbers, especially at 1080p and 1440p. That said, considering how fast MSI and Nvidia worked on a patch and the mere fact that Nvidia themselves are involved, we’re expecting the performance issue to be solved by the time the second wave of stocks arrive – the first batch probably still has the older vBIOS and early buyers may have to update their GPUs themselves.

Supposed issue aside, the MSI RTX 4070 Ti SUPER Ventus 3X is a Php 55,420 MSRP card which is its saving grace. Rarely do you get a larger cooler-sized card that has three fans and consumes almost 3-slots only to be priced at MSRP. It shares the two-tone silver and black design with the Inno3D variant albeit its approach is completely different which attracts a different audience altogether.

That said, the larger heatsink and triple fan setup may attract those who are looking to build a “powerful-looking” rig. So, if you’re not building an SFF rig or you’ve cleared out case compatibility, then the MSI Ventus RTX 4070 Ti SUPER 3X is a decent alternative, especially when you’re aiming for a more well-rounded design and aesthetics to complement your PC build – provided that the performance issue is solved by the time you’re reading this review or out to purchase the GPU.
