Inno3D has been consistent in providing value graphics cards in the market as we have reviewed their GPUs from the RTX 4090 all the way to the RTX 4060, including the RTX 40 SUPER GPUs. Inno3D hasn’t really changed its formula on its GPUs from the RTX 40 series launch to the SUPER launch. The release of the RTX 50 series means new cooler designs for brands to accommodate the performance uplift of the new generation of GPUs. Today, we have the Inno3D RTX 5080 X3 to test against a wide range of Founders Edition cards both current and last-gen.
Nvidia Blackwell Architecture

The Blackwell Architecture is probably one of the most hyped graphics architectures from NVIDIA since the announcement of the NVIDIA GH200 Grace Hopper Superchip for data centers, especially for AI. Its performance advancement in the server and AI field led enthusiasts to believe in a similar uplift on the consumer side. NVIDIA highlights Neural Rendering as the next era of computer graphics and that is what Blackwell is built upon. Blackwell Architecture uses the latest NVIDIA DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2 features with NVIDIA RTX Neural Shaders alongside other advancements such as the use of GDDR7 memory.
DLSS 4 Multi Frame Generation




One of the key highlights of the Nvidia GeForce RTX 50 series is DLSS 4 which takes advantage of the RTX Neural Shaders. In a nutshell, DLSS 4 is a steroid version of DLSS 3.5 where it’s able to generate up to three frames based on one rendered frame. unlike DLSS 3.5’s one generated frame per one rendered frame.
To put it into perspective, in a DLSS Frame Generation 4X setup at 120 FPS, only 30 frames are rasterized aka “traditionally rendered,” while the 90 frames are AI-generated with 15 out of 16 pixels in are generated by AI. There are three frames inserted in between the traditional rendered frames.
Neural Shaders, Shader Execution Reordering & Flip Metering
Is DLSS 4 available on previous RTX GPUs? Yes and No




While DLSS 4 features an upgrade in every aspect of its feature set, the main DLSS Multi Frame Generation feature is exclusive to the RTX 50 series GPUs. DLSS 3 Frame Generation’s AI model relied on game data and the RTX 40 series’ optical flow accelerator based on motion vectors, and depth to generate one frame. DLSS 4 Multi-FrameGen takes advantage of the RTX 50 series’ Neural Shaders, more efficient SER, and AI management processor to render additional frames.
Multiframe generation is taxing on older RTX GPUs due to the hardware or architectural limitations making them a “decelerator” as these renders happen within a few milliseconds. Nvidia 5th Gen Tensor Cores addresses this by having up to 2.5x more AI processing performance compared to last gen. That said, there are complexities in generating three frames in between traditional ones. For this reason, Blackwell uses hardware Flip Metering which transfers the frame pacing logic to the GPU instead of the CPU for better display timings.
These combinations of hardware and software implementations improve, or at the very least, minimize the negative impact on image quality, smoothness, and latency especially when compared to the previous DLSS technology.
DLSS Transformer Model
The previous DLSS technologies used Convolutional Neural Networks(CNNs) to generate new pixels by analyzing localized context and tracking changes in those areas over successive frames. Nvidia claimed to have peaked in maximizing DLSS CNN architecture six years after the introduction of DLSS on the RTX 20 series. This prompted them to move to the new Transformer Model for Image Quality improvements.
The new DLSS Transformer Model uses a vision transformer, enabling self-attention operations to evaluate the importance of each pixel in a frame and the next frame/s. This new model doubles the parameters of the CNN model allowing it to generate pixels with better stability, reduced ghosting, higher details, and smoother edges depending on the scene.
Nvidia Reflex 2

Nvidia implements Frame Warp, a technology commonly used in VR games. Based on the latest mouse or controller input, the CPU calculates the camera position of the next frame as the frame is being rendered by the GPU. Frame warp uses the new camera position and “warps” the frame just rendered by the GPU to the extrapolated frame. The warping is done at the last possible moment, before the rendered frame is sent to the display, ensuring the latest input is reflected on the display.
The “warped frame” has small holes or blank pixels as the supposed pixels are moved to reflect the recent movement. Nvidia’s predictive rendering algorithm uses camera, color, and depth data from prior frames to in-paint these holes. This results in users seeing the rendered frame with an updated camera perspective, without the holes. This effectively reduces the latency for any camera-moving actions in the game for better aiming or tracking.
There are currently no games that support Reflex 2 at launch but Nvidia confirmed that Reflex 2 will be coming to Valorant and The Finals.
NVIDIA GeForce RTX 5080 Specifications
RTX 40 SERIES SPECS | RTX 5090 | RTX 5080 | RTX 4090 | RTX 4080 SUPER | RTX 4080 | RTX 4070 Ti SUPER | RTX 4070 Ti | RTX 4070 SUPER |
Cores | 21760 | 10752 | 16384 | 10240 | 9728 | 8448 | 7680 | 7168 |
Tensor Cores | 680 | 336 | 512 | 320 | 304 | 264 | 240 | 224 |
RT Cores | 170 | 84 | 128 | 80 | 76 | 66 | 60 | 56 |
Boost Clock (GHz) | 2.41 | 2.62 | 2.52 | 2.55 | 2.51 | 2.61 | 2.61 | 2.48 |
Base Clock (GHz) | 2.01 | 2.3 | 2.21 | 2.21 | 2.21 | 2.34 | 2.31 | 1.92 |
Memory Config | 32GB GDDR7 | 16GB GDDR7 | 24GB GDDR6X | 16GB GDDR6X | 16GB GDDR6X | 16GB GDDR6X | 12GB GDDR6X | 12GB GDDR6X |
Memory Interface | 512-bit | 256-bit | 384-bit | 256-bit | 256-bit | 256-bit | 192-bit | 192-bit |
Total Graphics Power | 575W | 360W | 450W | 320W | 320W | 285W | 285W | 220W |
Min Required PSU | 1000W | 850W | 850W | 750W | 750W | 700W | 700W | 650W |
Price | Php 145,800 | Php 72,860 | Php 112,300 | Php 69,300 | Php 84,200 | Php 55,420 | Php 63,200 | Php 41,550 |

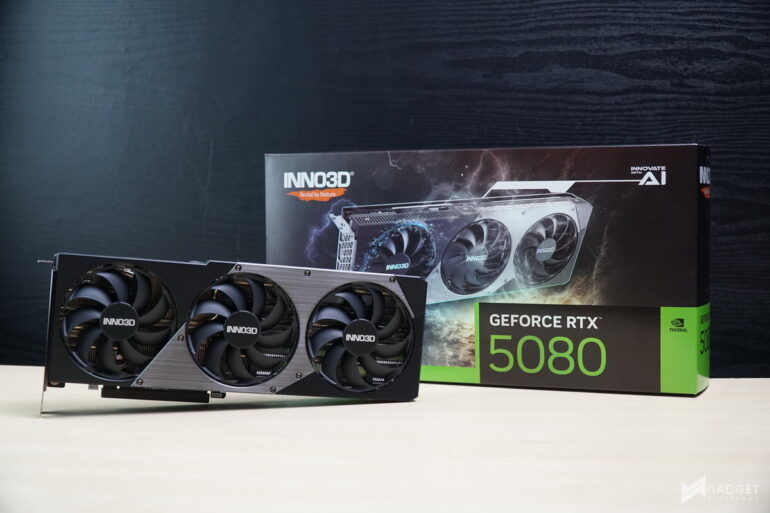

Inno3D RTX 5080 X3 – A Closer Look


Inno3D has graduated from using its mecha tiger/animals in its packaging design. Instead, you have a focused glamour shot of the cooling shroud with effects showcasing its cooling. Moving to the back you have a breakdown of its cooler design apart from the usual Blackwell Architecture feature highlights.

You have a pretty standard packaging of the Inno3D RTX 5080 X3 – given that it’s an MSRP variant.

The Inno3D RTX 5080 X3 has a two-tone black and gunmetal design for its cooling shroud. The brushed aluminum covers half of the GPU albeit off-center. Despite aiming for the same industrial design as last year, this year’s design seems to feel more premium, especially thanks to the different textures at either end of the black part of the shroud.

Moving to the back you have a full coverage backplate spanning across the entire GPU shroud. There’s a cutout that exposes about one and a half fans which slightly mimicks Nvidia’s flowthrough design for better cooling.

Compared to last year’s X3 variant, the Inno3D RTX 5080 X3 is surprisingly thin as it only occupies two slots therefore making it SFF ready according to NVIDIA’s specifications.

Unfortunately, you have the same 12VHPWR location on the RTX 5080 X3 at the same orientation unlike what we’ve seen with the 90-degree connector found on the Founders Edition variants. Plugging in the cable or the included adapter is sure to block the INNO3D and/or GEFORCE print on the side. Speaking of adapters, you have the older three 8-pin PCIE to 12VHPWR adapter included on the RTX 5080 X3. It would’ve been nice to see the updated, individually sleeved cable for the GPU

You have the standard has three DisplayPort 2.1b ports and one HDMI 2.1b port on the Inno3D RTX 5080 X3. There are perforated triangle cutouts on the IO bracket for ample exhaust airflow for the card.
Size Comparison vs other GPUs
Inno3D RTX 5080 X3 vs RTX 5080 Founders Edition


Inno3D RTX 5080 X3 vs RTX 5080 FE, RTX 4080 SUPER FE, RTX 4070 FE


Benchmark Setup and Test Methodology
Gadget Pilipinas’ testing philosophy is to provide detail-oriented results as accurately as possible so that our readers can replicate our tests given that these conditions are met. Different benchmarking apps and sequences are used depending on the tested component or device.
CPU | AMD Ryzen 7 9800X3D |
COOLER | ASUS ROG RYUJIN II 360mm V2 – Noctua NT-H2 Thermal Paste |
MOTHERBOARD | Gigabyte X870E Aorus Master | BIOS F4i |
MEMORY | GSkill Trident Z Neo 32GB(2x16GB) DDR5-6000 CL28 |
GPUs | Nvidia RTX 5090 Founders Edition | Nvidia RTX 5080 Founders Edition | Inno3D RTX 5080 X3 | Nvidia RTX 4090 Founders Edition |
STORAGE | Kingston Renegade 2TB NVME SSD |
POWER SUPPLY | FSP VITA GM1000W Gold ATX 3.1 |
OPERATING SYSTEM | Windows 11 Pro Build 24H2, VBS off |
CASE | Open Benchtable V2 |
We use CapFrameX 1.7.5 BETA as our primary FPS capture and analysis tool for all our gaming benchmarks. The latest build version of Windows 11 Pro and WHQL-certified drivers are used for our benchmarks. Readings such as temperatures and power draws are recorded using HWINFO64, and other relevant software for cross-checking.
For more info, read our Review and Benchmark methodology article.
Inno3D RTX 5080 X3 Synthetic and Productivity Benchmarks
CINEBENCH 2024
Maxon’s Cinebench benchmark is one of the most iconic benchmark applications used by reviewers and enthusiasts. The latest Cinebench 2024 uses the latest rendering architectures, including Intel’s Embree ray tracing technology and other advanced features from AMD and Intel that allow users to render the same scene on the same hard.
ADOBE PREMIERE PRO VIDEO EDITING BENCHMARK

Procyon benchmark suite is developed by the UL, the same team behind 3DMark and PCMark benchmarks. The UL Procycon video editing benchmark uses Adobe Premiere in a typical video editing workflow. The benchmark starts by importing two video project files with various edits, adjustments, and effects – the second project uses several GPU-accelerated effects. Each project is exported in 1080p with H.264 encoding and again in 4K with HEVC H.265. The reported score is based on the time taken to export all four videos. GPU acceleration is turned on for GPU benchmarks.
PCMark10
From the same developers of the popular game benchmarking tool 3DMark, PCMark 10 is a benchmarking app for measuring a whole PC’s performance. It covers a wide variety of tests to reflect common tasks performed in a modern workplace. We selected PCMark 10’s extended benchmark and reported both the overall score and the Digital Content Creation Score.
V-RAY 6

V-Ray Benchmark is a stand-alone version of V-Ray developed by Chaos Group. It is designed to test the CPU and GPU by rendering sample scenes at a fixed amount of time. V-Ray is a plug-in mostly utilized by 3D computer graphics software applications mainly for industrial design, product design, architecture, film, and video game production. V-Ray is not limited to 64-threads as it supports multi and mega-threading.
GeekBench 6.3

Geekbench is a multi-platform benchmark used to gauge CPU performance and compare them across Windows, Mac, and Mobile. Geekbench 6 is the latest version and doesn’t rely on memory more than the previous Geekbench 4, making it a great tool to measure both single-core and multi-core CPU performance. Geekbench also sa GPU benchmarks using the OpenCL and Vulkan API.
BLENDER 4.3.0

Blender is a widely used, free, open-source 3D creation suite. It supports the whole 3D pipeline process from modeling, rigging, animation, simulation, rendering, and even motion tracking. Blender has become a standard for CPU benchmarks with the BMW27 and Classroom Scene most used. This prompted the company to release Blender Open Data Benchmark in 2018, a benchmark-specific version allowing users to run a preset benchmark and share the results online like 3DMark.
HANDBRAKE 1.8.2
Handbrake is a top-rated open-source video conversion software that is used by professionals, enthusiasts, and even reviewers as a reference point mainly because of its wide variety of media codecs. The rise of streaming and blogging makes video content, both encoding and transcoding important for these people, regardless of whether they’re seasoned professionals or just starting out. Handbrake also takes advantage of AVX-512 and OpenCL to accelerate certain types of media codecs. Our Handbrake benchmark converts a 3:16 4K60 clip shot from an S24 Ultra to 1080p60 H264 mp4 for CPU or 1080p NVENC H265 for GPU.
3DMark Benchmark Suite

3DMark is the go-to benchmark for gamers because of the ability to share and compare results online. We test GPUs both in DX11 Firestike and DX12 Timespy for the “classic” benchmarks. We also used 3DMark’s latest Steel Nomad and SpeedWay benchmarks as we slowly shift to these “more accurate” synthetic game benchmarks.
Inno3D RTX 5080 X3 AI Benchmarks
Geekbench AI

Inno3D RTX 5080 Gaming Benchmarks
RETURNAL

Returnal is one of the most technologically advanced games since the launch of Cyberpunk 2077. Released last April 2021 on PS5 and February 2023 on PC, it uses Unreal Engine 4 and supports multiple technologies such as Ray Tracing, DLSS, VSR, and FSR.
COUNTERSTRIKE 2

CounterStrike 2 or CS2 is the successor to the now-retired CSGO and now uses the Source 2 Engine – the same engine used on DOTA 2. CS2 is a great FPS game to test out CPU performance. Our benchmark process uses the replay function of the game.
DOTA 2

Dota 2 is a good reputation among F2P titles especially MOBAs and RTS as it lands on the demanding side of the spectrum. Its gameplay and quality of life updates are far more frequent than most F2P titles thanks to its vast popularity. Our benchmark sequence is based on a replay of Liquid vs. Gaimin Gladiators in the The International Grand Finals Game 3 from the team fight that happened from 16:24 to 17:24.
SPIDER-MAN: MILES MORALES

Marvel’s Spider-Man: Miles Morales is developed by Insomniac Games and published by Sony is one of the most popular PC port titles last 2022. It’s one of the few modern game titles that support upscaling technologies FSR, DLSS, and XeSS making it a great title to use for benchmarks.
F1 23

F1 23 is the official video game of the 2023 Formula One and Formula 2 championships developed by Codemasters. F1 2023 is the sixteenth installment in the franchise and uses the Ego Engine 4.0. F1 233 is a good representation of racing games thanks to its realistic graphics and fairly demanding spec requirements as well as support for Ray Tracing and the latest upscaling technologies such as DLSS, XeSS, and FSR.
ASSASSIN’S CREED: MIRAGE

Assassin’s Creed Mirage is the latest Assassin’s Creed game from Ubisoft making it the thirteenth major installment in the franchise. It uses the AnvilNext 2.0 game engine and is the very first AC game to support the latest upscaling technology such as XeSS, FSR, and DLSS.
Cyberpunk 2077

Cyberpunk 2077 is arguably the most hyped game of 2020. Developed by CD Projekt Red, the dystopian open-world, action-adventure RPG sports is one of the most demanding titles to date. Cyberpunk 2077 also supports three Ray Tracing settings as well as DLSS which makes the game a great tool to measure Ray tracing performance for both AMD and Nvidia graphics cards.
HORIZON FORBIDDEN WEST

Horizon Forbidden West is a 2022 action role-playing game developed by Guerrilla Games and published by Sony Interactive Entertainment. The Horizon Zero Dawn game sequel launched on PC last March 2024 built on the Decima Game Engine, the same one used on Death Stranding. Horizon Forbidden West features Ray Tracing and Upscaling technologies not present in the prequel game.
BLACK MYTH WUKONG

Black Myth: Wukong is one of the most popular game titles launched in 2024 with its stunning graphics thanks to the Unreal Engine 5. Developed by Game Science, Black Myth: Wukong is one of the most demanding titles recently released titles with complete Ray Tracing and Upscaling technology features making it a great benchmark for new hardware.
GHOST OF TSUSHIMA

Ghost of Tsushima is an action-adventure game developed by Sucker Punch Productions and published by Sony Interactive Entertainment. It was initially released for the PlayStation 4 in July 2020 and later for PlayStation 5 and Windows. Ghost of Tsushima runs on a modified and optimized version of Sucker Punch’s in-house engine, originally built for the PlayStation platforms.
HOGWARTS LEGACY

Hogwarts Legacy is a popular game catering to the hearts of Harry Potter fans and gamers with its rich world and engaging gameplay. Developed by Avalanche Software and built on the Unreal Engine 4, Hogwarts Legacy delivers detailed environments and character models with support for the latest rendering and upscaling technologies.
FAR CRY 6

FarCry 6 is an FPS game published by Ubisoft and uses the Dunia engine. It heavily relies on and takes advantage of DirectX 12 to render a realistic environment that makes it taxing to both the CPU and GPU. It’s also the first game of the franchise to support Ray Tracing.
Inno3D RTX 5080 X3 Temps and Power Draw

The Inno3D RTX 5080 X3 has almost the same dimensions as the impressive RTX 5080 Founders Edition cooler. Yet its extra 9cm fan is able to make the difference and beat the double flowthrough cooler design as the RTX 5080 X3 peaked at only 70.7°C compared to the 73.2°C on the RTX 5080 FE. It also has a lower idle temp than the RTX 5080 FE at only 31.6°C making it one of the coolest GPUs on our test suite.
Conclusion – If it ain’t broke, don’t fix it
Right off the bat, there’s really nothing to complain about the Inno3D RTX 5080 X3 apart from its arguably outdated design. Now, this is coming from someone who has held every Twin X2 or X3 card on the brand’s entire last-gen lineup so this is more of a nitpick rather than an issue. If anything, Inno3D has managed to make the 80-class X3 cooler more compact than the one found on the RTX 40 series and still deliver outstanding cooling performance something worth celebrating.
Inno3D has simply applied the “if it ain’t broke, don’t fix it” mentality with its X3 cooler. Its proven and tested cooler design makes it one of the best MSRP cards in the market in terms of performance and cooling – not to mention the relatively slim form factor that also makes it a great choice for SFF builds. That said, the aforementioned “outdated design” makes the card look “boring” when compared to the rest of the market as not only does it sport a last-gen look but it also doesn’t have RGB lighting let alone any kind of lighting.
If you happen to not care about looks or prioritize getting an SFF-ready GPU without paying no more than the RTX 5080 MSRP of Php 72,860, then the Inno3D RTX 5080 X3 is simply a no-brainer option, especially for regions that don’t offer the Founders Edition variant as you won’t have to worry about losing on performance or cooling thanks to the proven and tested cooling design.
