Palit RTX 4070 SUPER DUAL Review Philippines

Contents (maximize to view)

2024 is off to a good start with the launch of the latest Nvidia RTX 40 SUPER series giving gamers more options to choose from on their next GPU upgrade. Expanding those pool of upgrade options are various models from partner brands such as the one that we have now for review, the Palit RTX 4070 SUPER DUAL graphics card. It’s the brand’s entry-level, MSRP offering of its RTX 4070 SUPER line.

Nvidia RTX 40 SERIES SPECS

RTX 40 SERIES SPECSRTX 4080 SUPERRTX 4080RTX 4070 Ti SUPERRTX 4070 TiRTX 4070 SUPERRTX 4070
Cores1024097288448768071685888
Tensor Cores320304264240224184
RT Cores807666605646
Boost Clock (GHz)2.552.512.612.612.482.47
Base Clock (GHz)2.212.212.342.311.921.92
Memory Config16GB GDDR6X16GB GDDR6X16GB GDDR6X12GB GDDR6X12GB GDDR6X12GB GDDR6X
Memory Interface256-bit256-bit256-bit192-bit192-bit192-bit
Total Graphics Power320W320W285W285W220W200W
Min Required PSU750W750W700W700W650W650W
PricePhp 69,300Php 84,200Php 55,420Php 63,200Php 41,550Php 40,590

Nvidia GeForce RTX 4070 SUPER

Nvidia RTX 4080 Super RTX 4070 Super RTX 4070Ti Super RTX 4070 Super Specs
Nvidia RTX 4070 Super

The Nvidia RTX 4070 SUPER has the same $599 launch price as its non-SUPER counterpart, meaning that we’re getting an upgrade in terms of specs and of course, performance. The RTX 4070 SUPER gets a 20% increase in CUDA, RT, and Tensor core count resulting in 10% higher TGP from 200W on the RTX 4070 to 220W on the RTX 4070 SUPER. Nvidia also managed to increase the boost clock, albeit minimal to 2480 MHz from 2470 MHz but considering the higher core count, it’s still a welcomed improvement.

Palit RTX 4070 SUPER DUAL – Unboxing and Overview

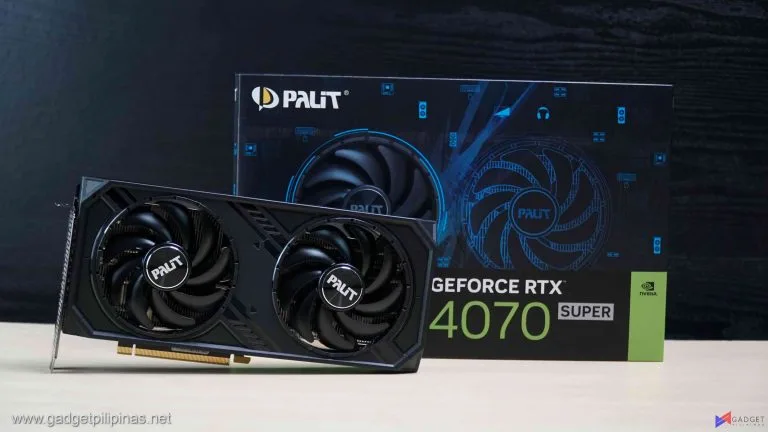

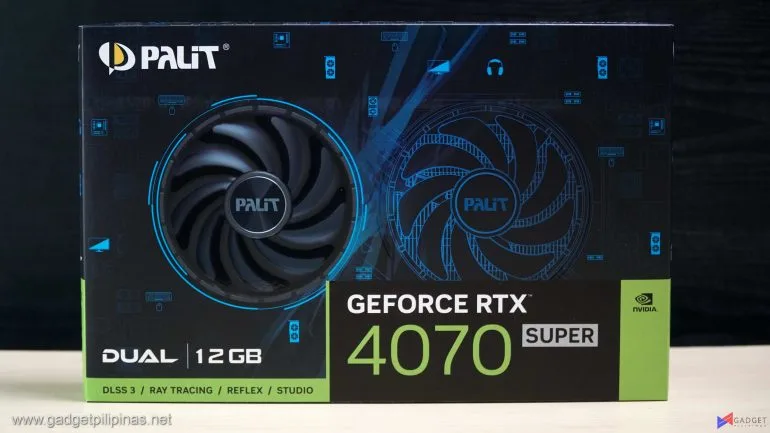

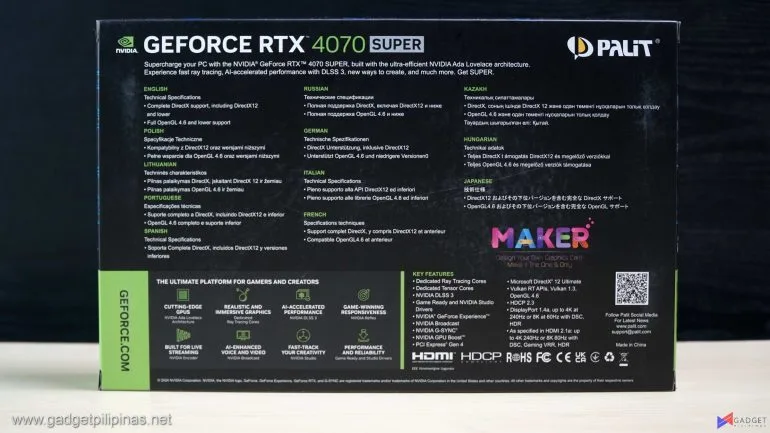

Palit retained its original packaging design on its RTX 40 SUPER series cards as opposed to using a different color shade to distinguish them from non-super counterparts.

Palit RTX 4070 SUPER DUAL Review 019
Palit RTX 4070 SUPER DUAL Review 019

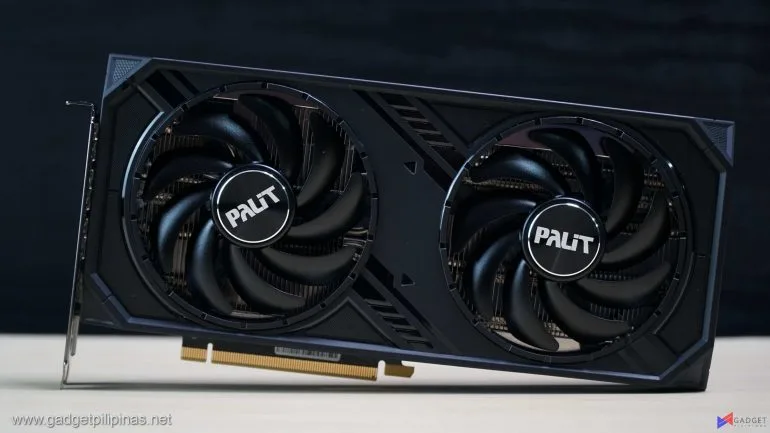

The Palit RTX 4070 SUPER DUAL uses the same design shroud found on the Palit RTX 4060 Ti DUAL that we reviewed earlier. Like the rest of the RTX 40 DUAL series, the Palit RTX 4070 SUPER DUAL also supports Maker, Palit’s 3D-printed custom cover.

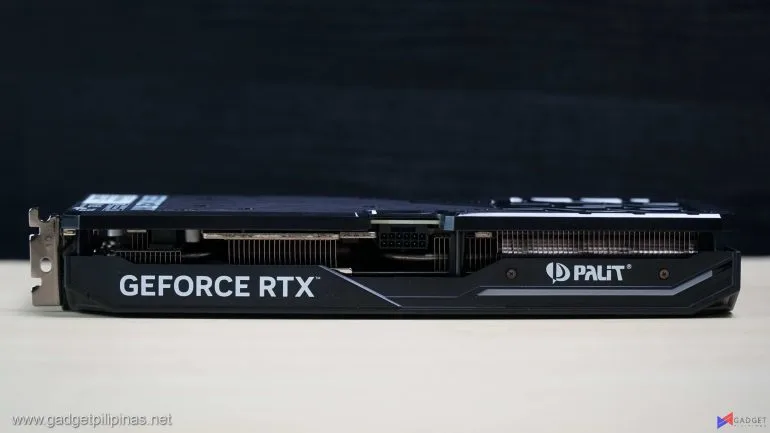

Palit RTX 4070 SUPER DUAL Review 024
Palit RTX 4070 SUPER DUAL Review 024

The Palit RTX 4070 SUPER DUAL is a dual-slot GPU measuring 269.1 x 127.5 x 40.1mm easily making it compatible with most if not all modern SFX/ITX cases.

Palit RTX 4070 SUPER DUAL Review 038
Palit RTX 4070 SUPER DUAL Review 038

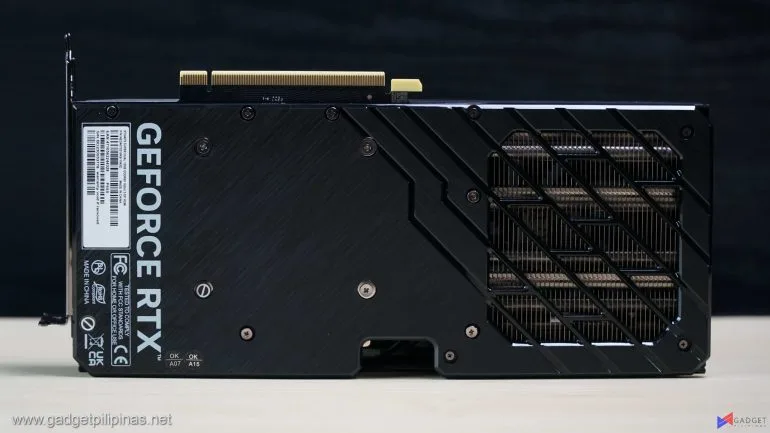

Despite being Palit’s entry-level variant, the Palit RTX 4070 SUPER DUAL comes with a full metal backplate. It has a cutout where the PCB ends to expose the heatsink for better airflow.

Palit RTX 4070 SUPER DUAL Review 044
Palit RTX 4070 SUPER DUAL Review 044

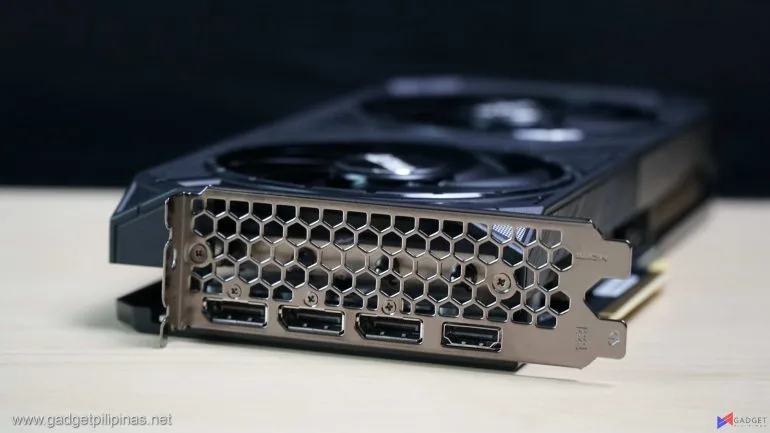

You have the standard video output configuration with three Display Port 1.4a ports, and one HDMI 2.1 port on the RTX 4070 SUPER DUAL.

Palit RTX 4070 SUPER DUAL Review 055
Palit RTX 4070 SUPER DUAL Review 055

The Palit RTX 4070 SUPER DUAL is longer than both our Founders Edition and Twin X2 variants which are also two-slot cards but not by much.

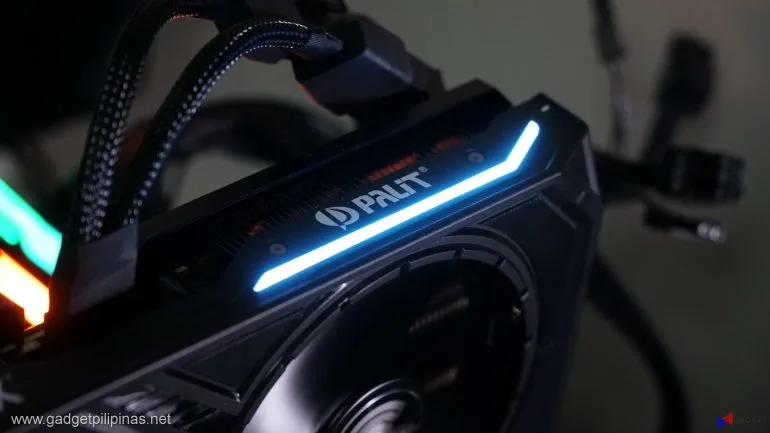

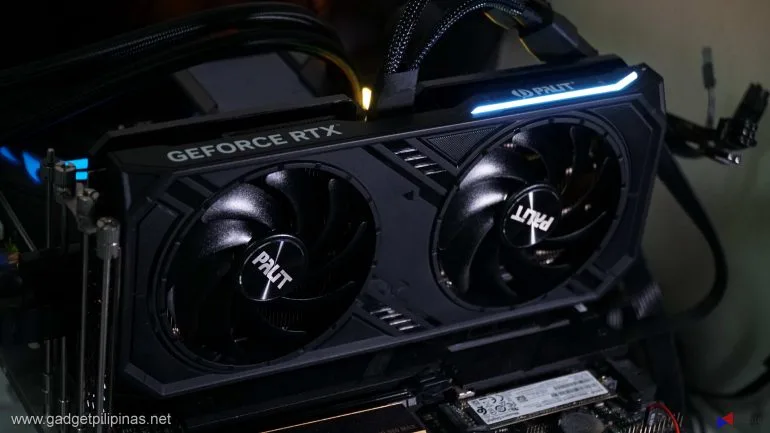

Unlike most MSRP and entry-level variant cards, the Palit RTX 4070 SUPER DUAL surprisingly has RGB lighting underneath the Palit logo. Its RGB lighting can be customized via the Palit Thundermaster software.

Benchmark Setup and Test Methodology

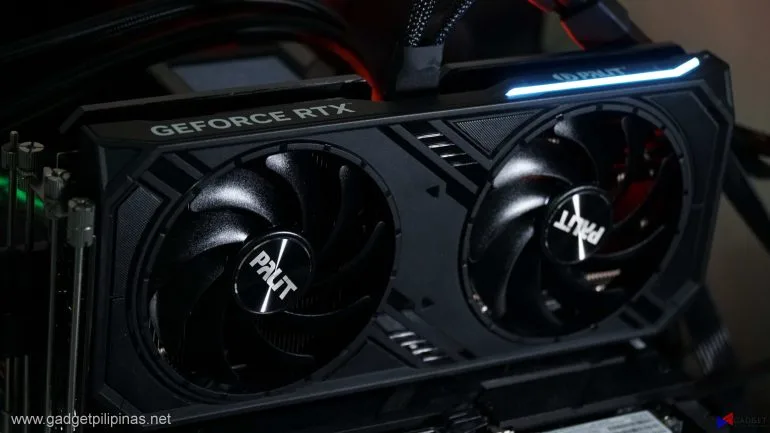

Palit RTX 4070 SUPER DUAL Review 079
Palit RTX 4070 SUPER DUAL Review 079

Gadget Pilipinas’ testing philosophy is to provide detail-oriented results as accurately as possible so that our readers can replicate our tests given that these conditions are met. Different benchmarking apps and sequences are used depending on the component or device being tested.

CPUIntel Core i9 14900K
COOLERASUS ROG RYUJIN II 360mm V2 – Noctua NT-H2 Thermal Paste
MOTHERBOARDASUS ROG Strix Z790-E Gaming
MEMORYKingston Fury Beast RGB 32GB(2x16GB) 6000 MHz DDR5
GPUsRTX 4080 SUPER FE | Gigabyte RTX 4070 Ti AERO | Inno3D RTX 4070 SUPER Twin X2 | RTX 4070 SUPER FE | RTX 4070 FE | 551.22 driver | AMD RX 7800 XT
STORAGEKingston Renegade 2TB PCI-E Gen4 NVMe SSDD
POWER SUPPLYFSP HYDRO GT PRO 1000W Gold ATX 3.0
OPERATING SYSTEMWindows 11 Pro Build 22H2

We use CapFrameX 1.7.2 Beta as our primary FPS capture and analysis tool for all our gaming benchmarks. The latest build version of Windows 11 Pro and WHQL-certified drivers are used for our benchmarks. Readings such as temperatures and power draws are recorded using HWINFO64, and other relevant software for cross-checking.

For more information read our Benchmark Methodology article.

Palit RTX 4070 SUPER DUAL Synthetic and Productivity Benchmarks

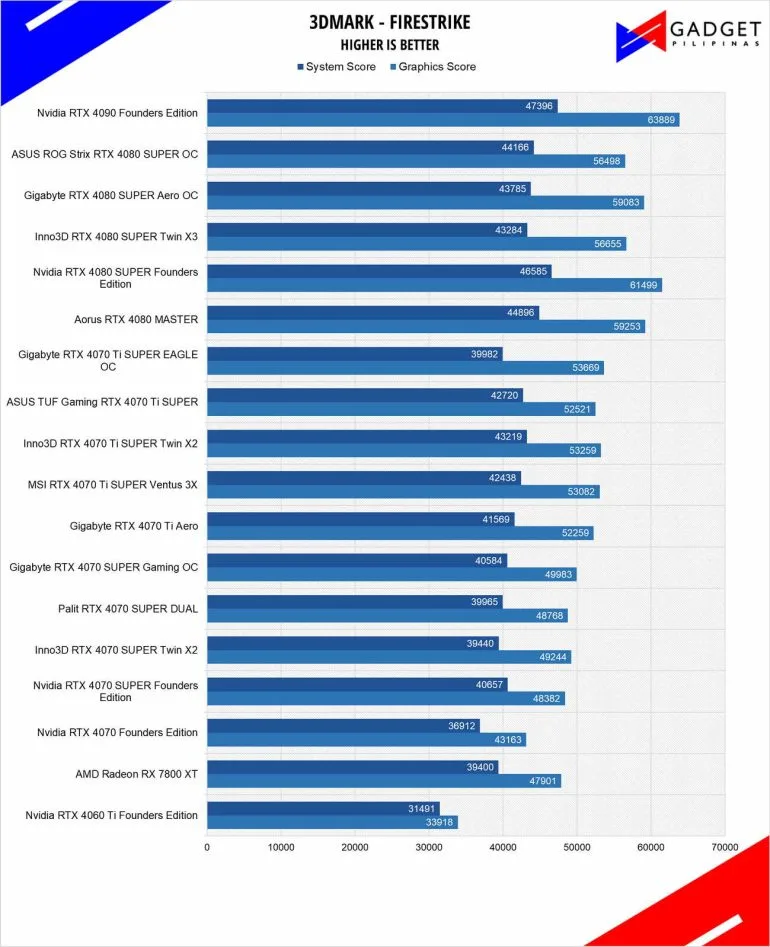

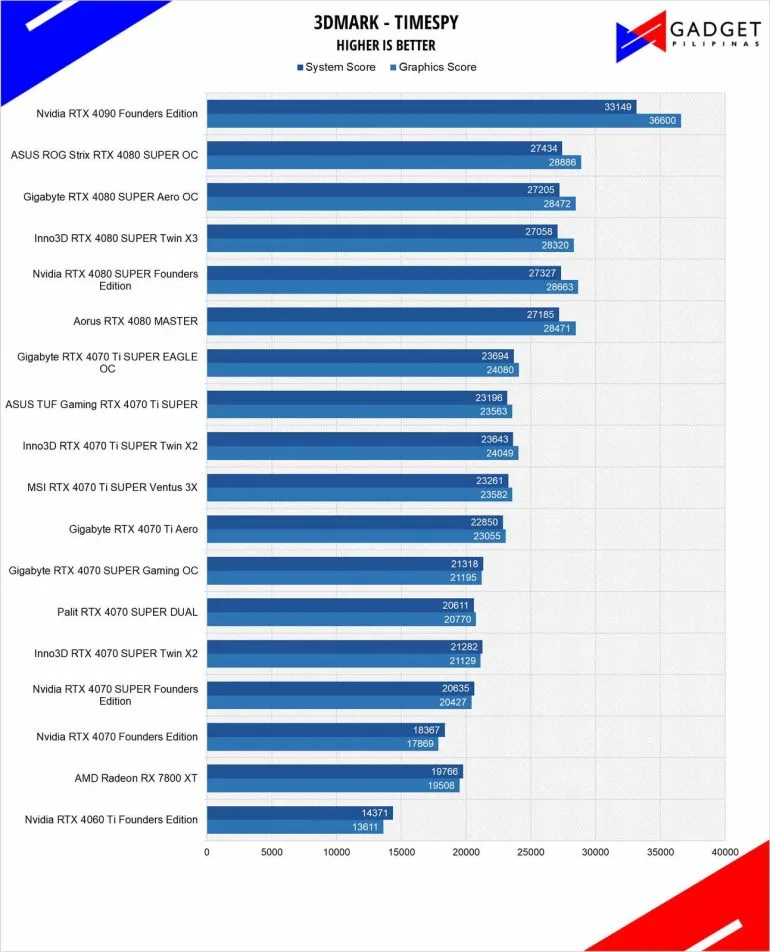

3DMark Firestrike and TimeSpy

3DMark is the go-to benchmark for gamers because of the ability to share and compare results online. We test GPUs both in DX11 Firestike and DX12 Timespy to get a gauge of the performance.

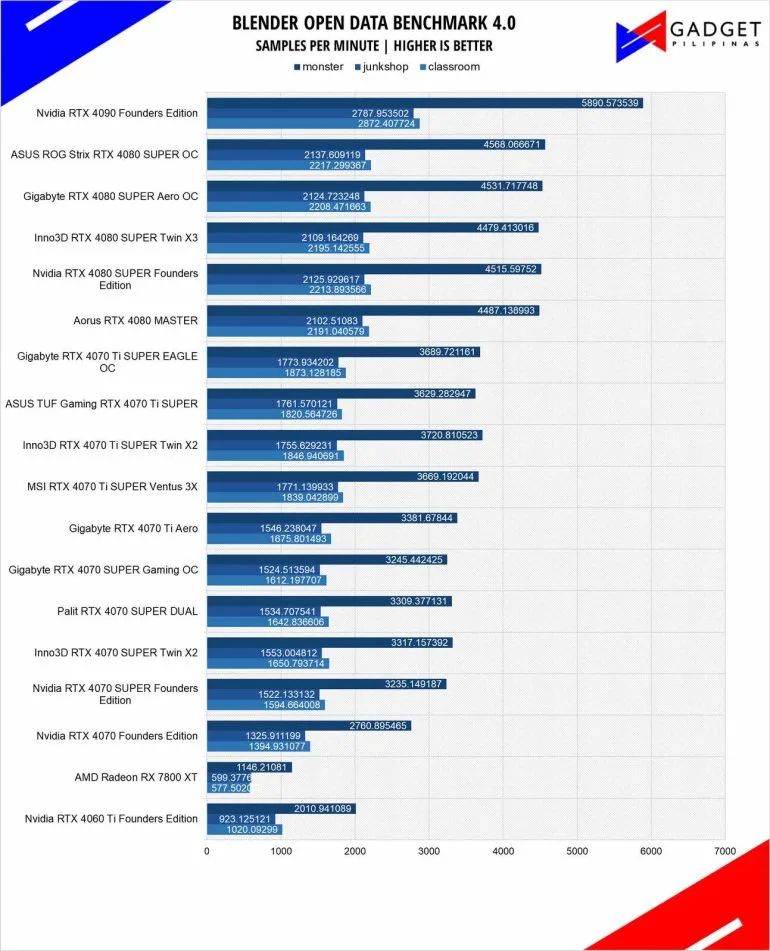

Blender

Palit RTX 4070 SUPER DUAL Review Blender
Palit RTX 4070 SUPER DUAL Review Blender

Blender is a widely used, free, open-source 3D creation suite. It supports the whole 3D pipeline process from modeling, rigging, animation, simulation, rendering, and even motion tracking. Blender has become a standard for CPU benchmarks with the BMW27 and Classroom Scene most used. This prompted the company to release Blender Open Data Benchmark in 2018, a benchmark-specific version allowing users to run a preset benchmark and share the results online like 3DMark.

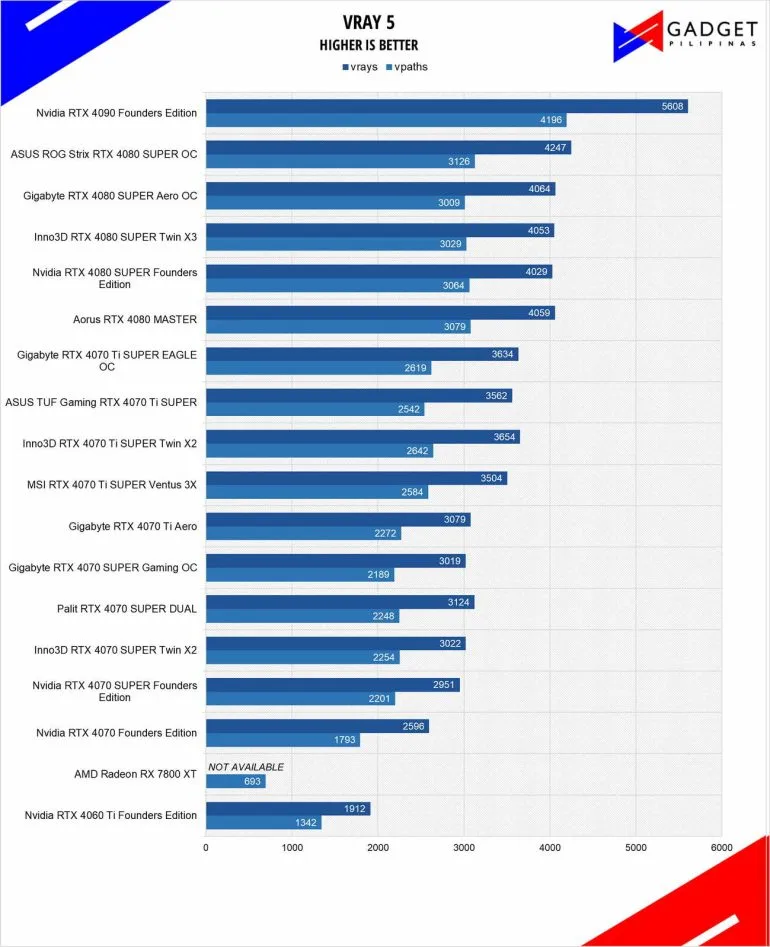

VRAY 5

Palit RTX 4070 SUPER DUAL Review VRAY5
Palit RTX 4070 SUPER DUAL Review VRAY5

V-Ray Benchmark is a stand-alone version of V-Ray developed by Chaos Group. It is designed to test the CPU and GPU by rendering sample scenes at a fixed amount of time. V-Ray is a plug-in mostly utilized by 3D computer graphics software applications mainly for industrial design, product design, architecture, film, and video game production. V-Ray is not limited to 64-threads as it supports multi and mega-threading.

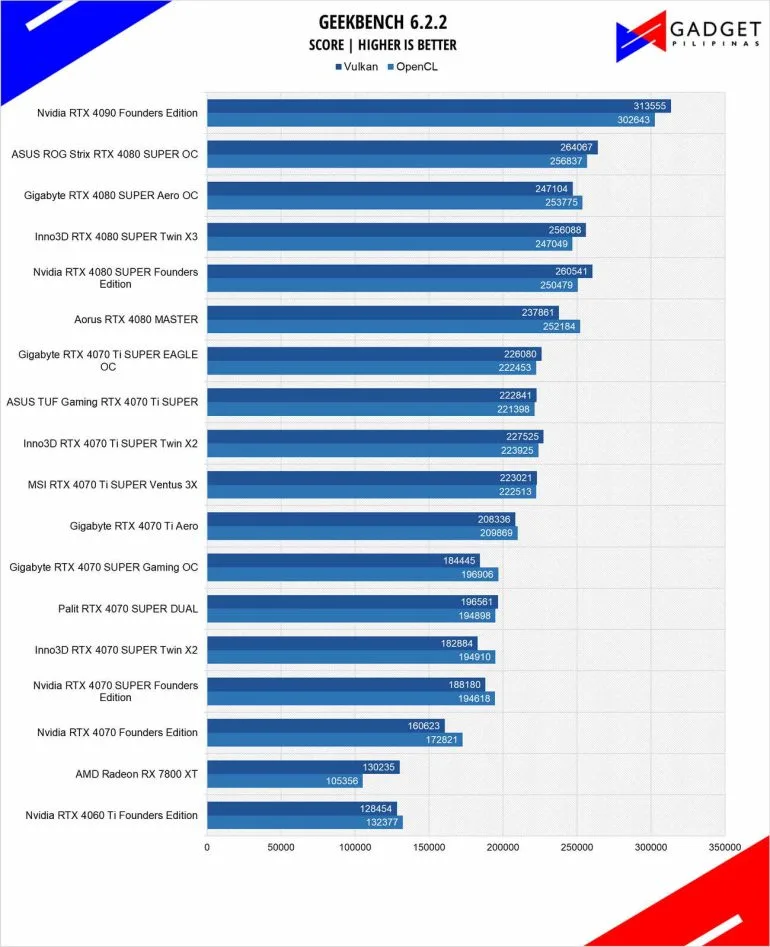

GeekBench 6.2.2

Palit RTX 4070 SUPER DUAL Review Geekbench
Palit RTX 4070 SUPER DUAL Review Geekbench

Geekbench is a multi-platform benchmark used to gauge CPU performance and compare them across Windows, Mac, and Mobile. Geekbench 6 is the latest version and test are done in both OpenCL and Vulkan to gauge a CPU’s compute performance.

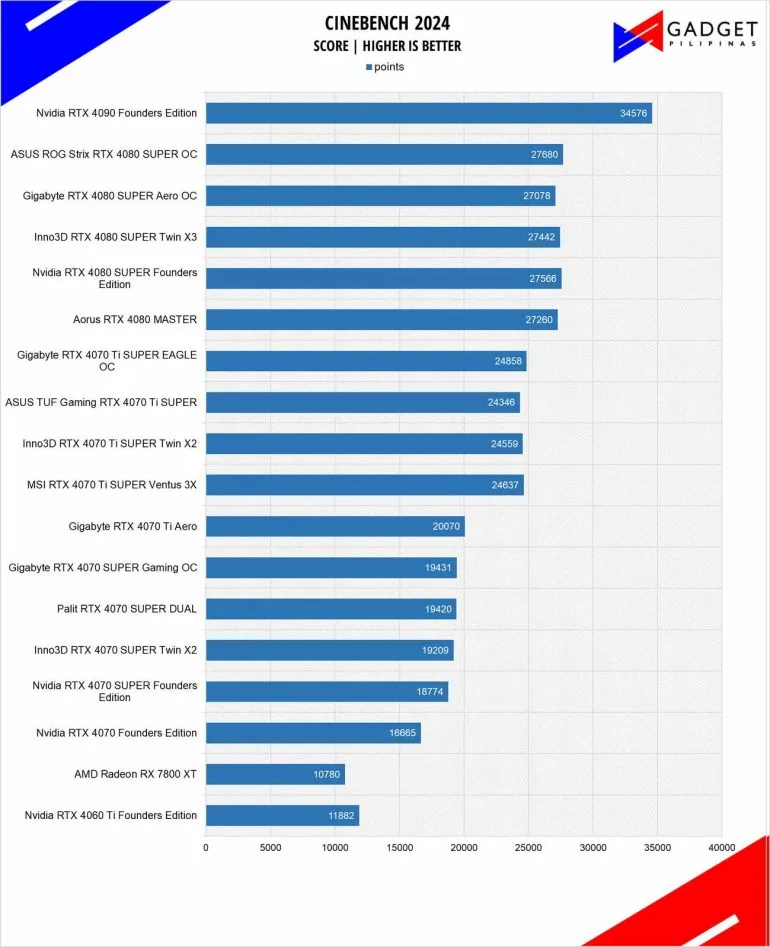

CINEBENCH 2024

Palit RTX 4070 SUPER DUAL Review Cinebench 2024
Palit RTX 4070 SUPER DUAL Review Cinebench 2024

Maxon’s Cinebench benchmark is one of the most iconic benchmark applications used by reviewers and enthusiasts. The latest Cinebench 2024 now supports GPU rendering benchmarks which is why added Cinebench 2024 in our GPU benchmark suite.

Palit RTX 4070 SUPER DUAL Gaming Benchmarks

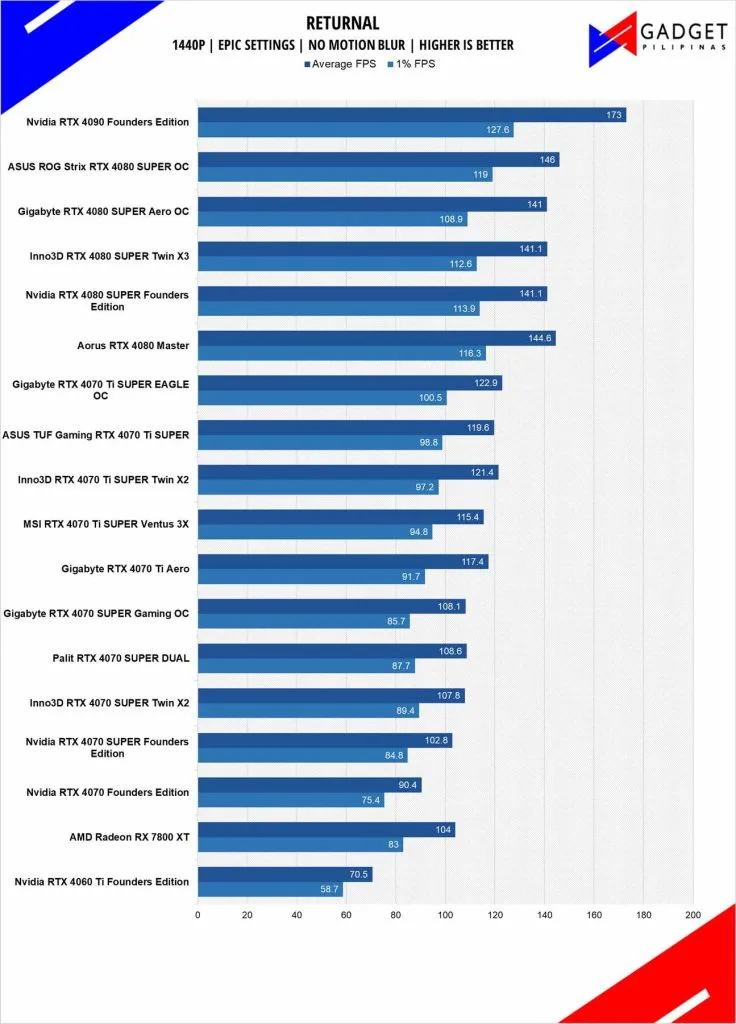

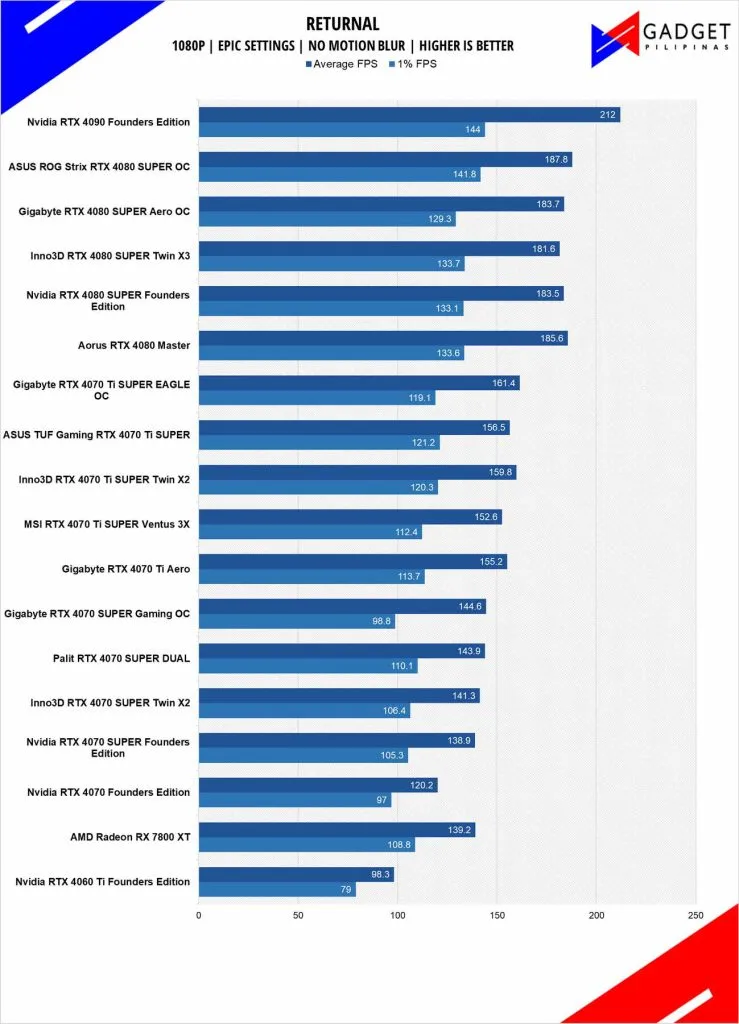

RETURNAL

Returnal is one of the most technologically advanced game since the launch of Cyberpunk 2077. Released last April 2021 on PS5 and February 2023 on PC, it uses Unreal Engine 4 and supports multiple technologies such as Ray Tracing, DLSS, VSR, and FSR.

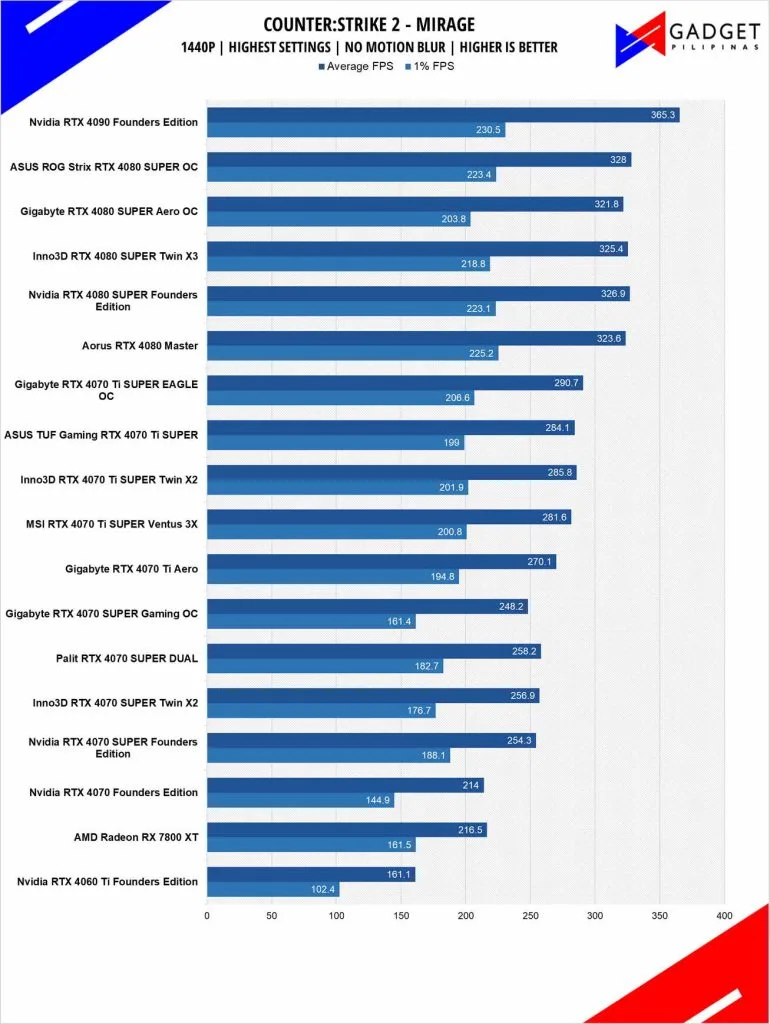

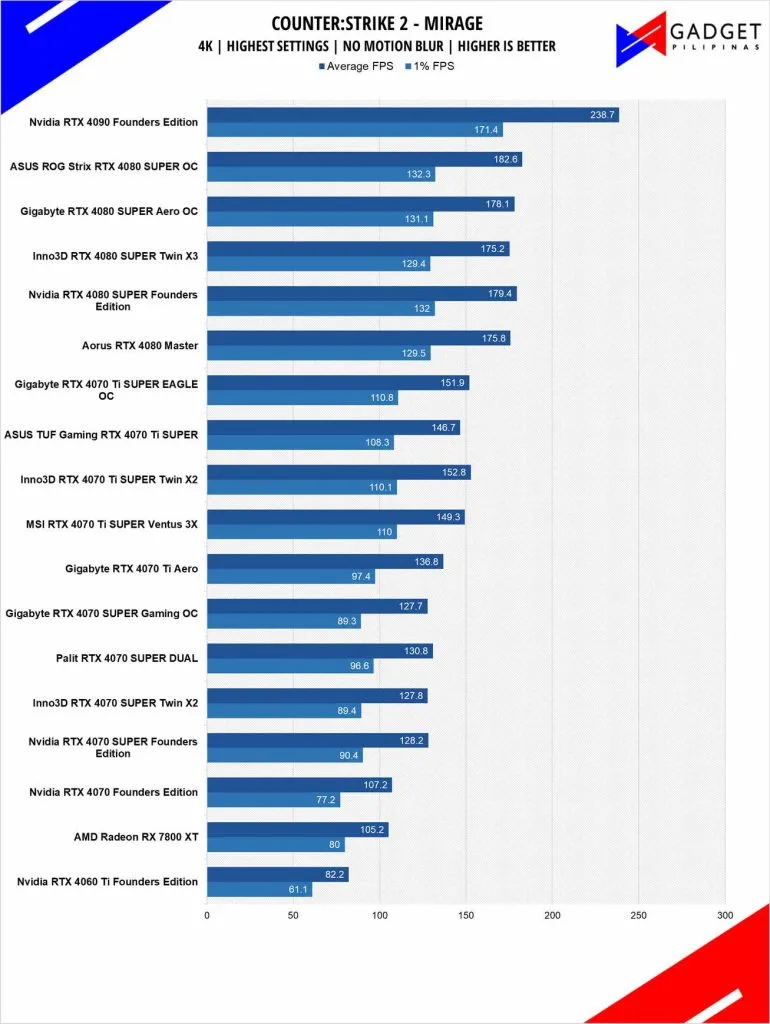

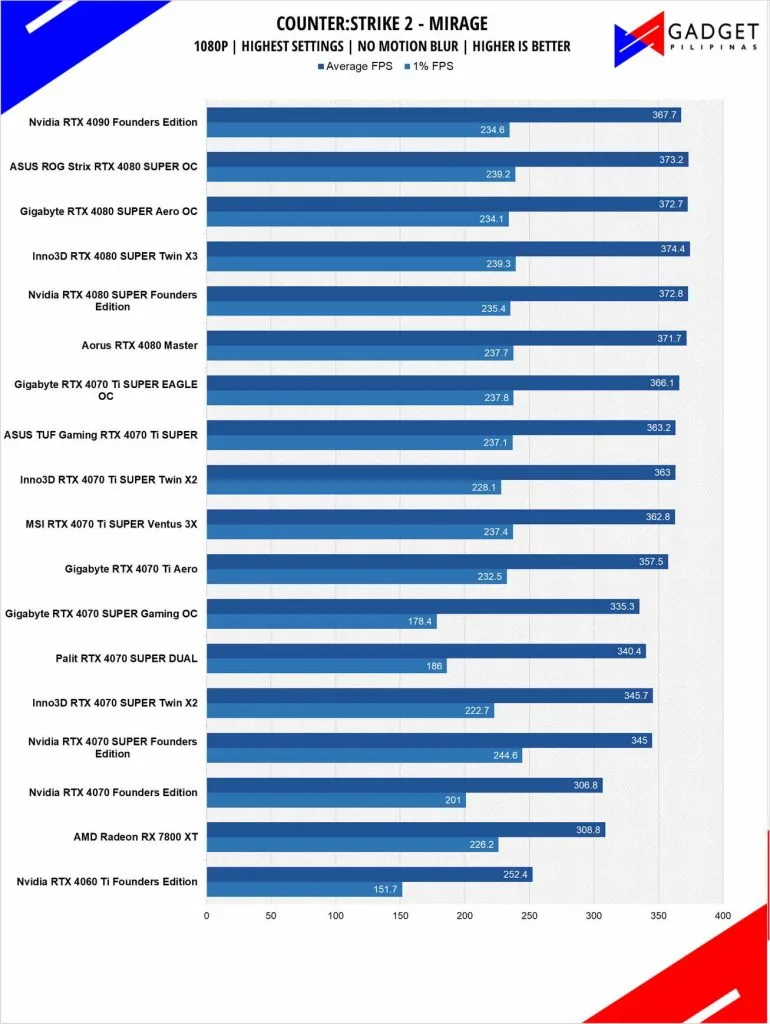

COUNTERSTRIKE 2

CounterStrike 2 or CS2 is a the successor to the now retired CSGO and now uses the Source 2 Engine – the same engine used on DOTA 2. CS2 is a great FPS game to test out CPU performance. Our benchmark process uses a the replay function of the game.

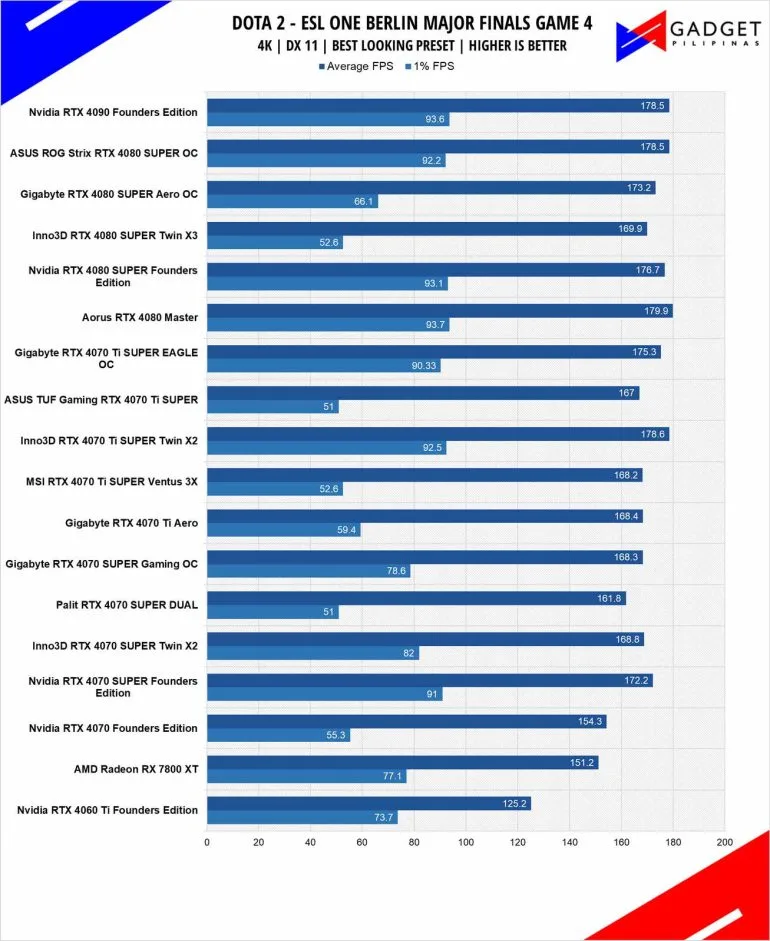

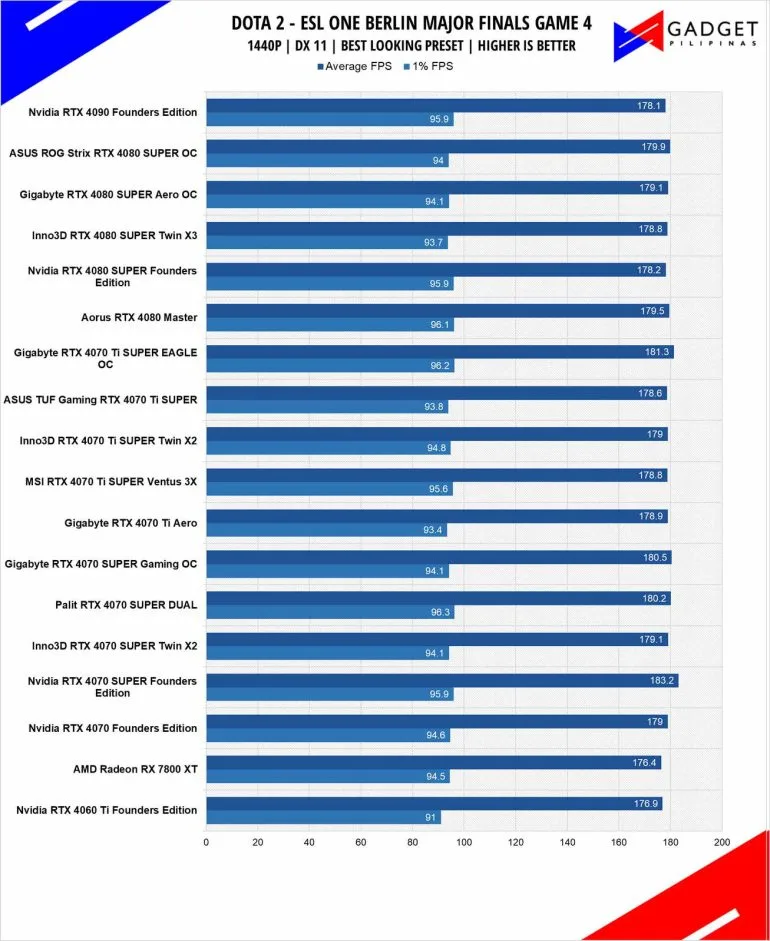

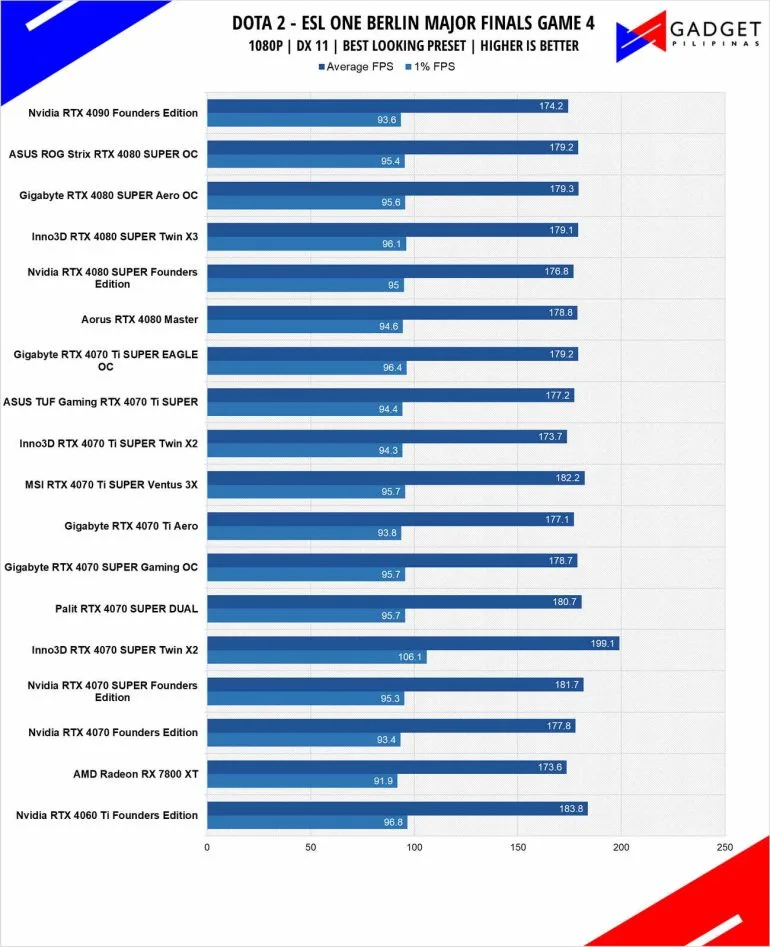

DOTA 2

Dota 2 is a good repesentation among F2P titles especially MOBAs and RTS as it lands on the demanding side of the spectrum. Its gameplay and quality of life updates are far more frequently than most F2P titles thanks to its vast popularity. Our benchmark sequence is based on a replay of OG vs. Gaimin Gladiators in the ESL ONE Berlin Major Finals Game 4 from the team fight that happened from 23:00 to 24:00.

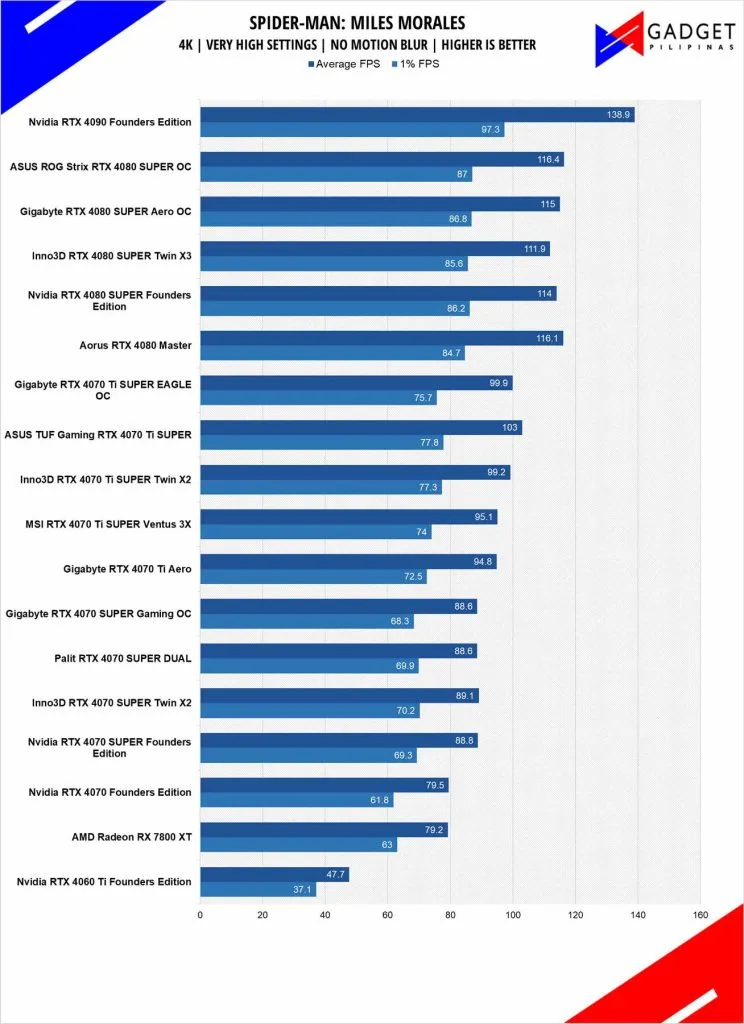

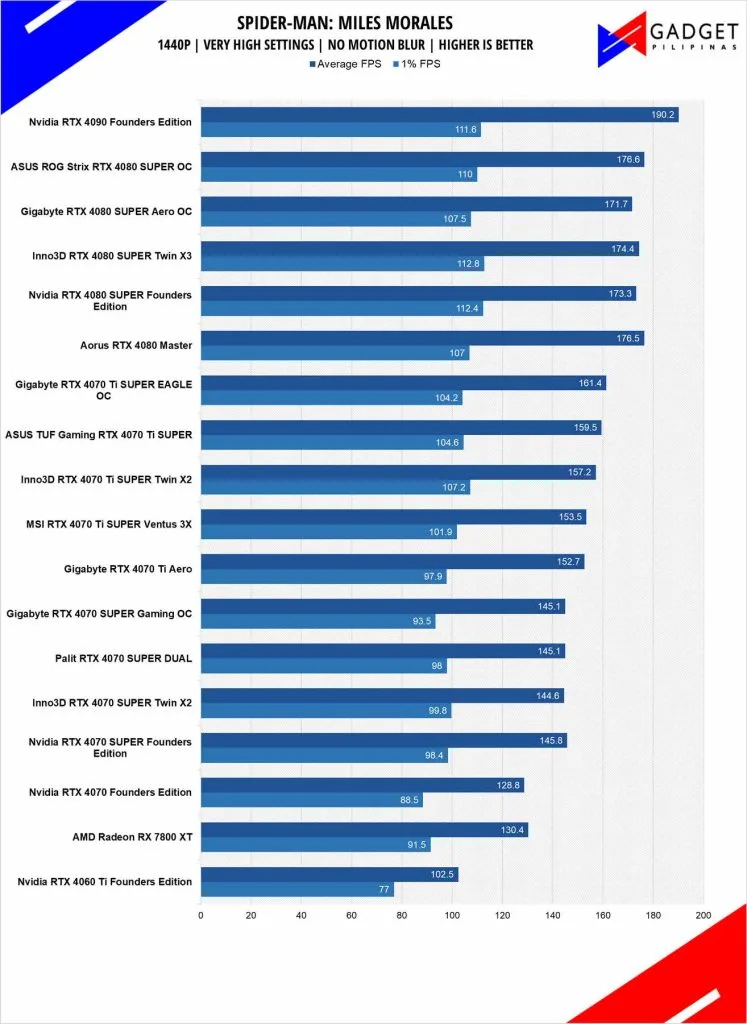

SPIDER-MAN: MILES MORALES

Marvel’s Spider-Man: Miles Morales is developed by Insomniac Games and published by Sony is one of the most popular PC port titles last 2022. It’s one of the few modern game titles that support upscaling technologies FSR, DLSS, and XeSS making it a great title to use for benchmarks.

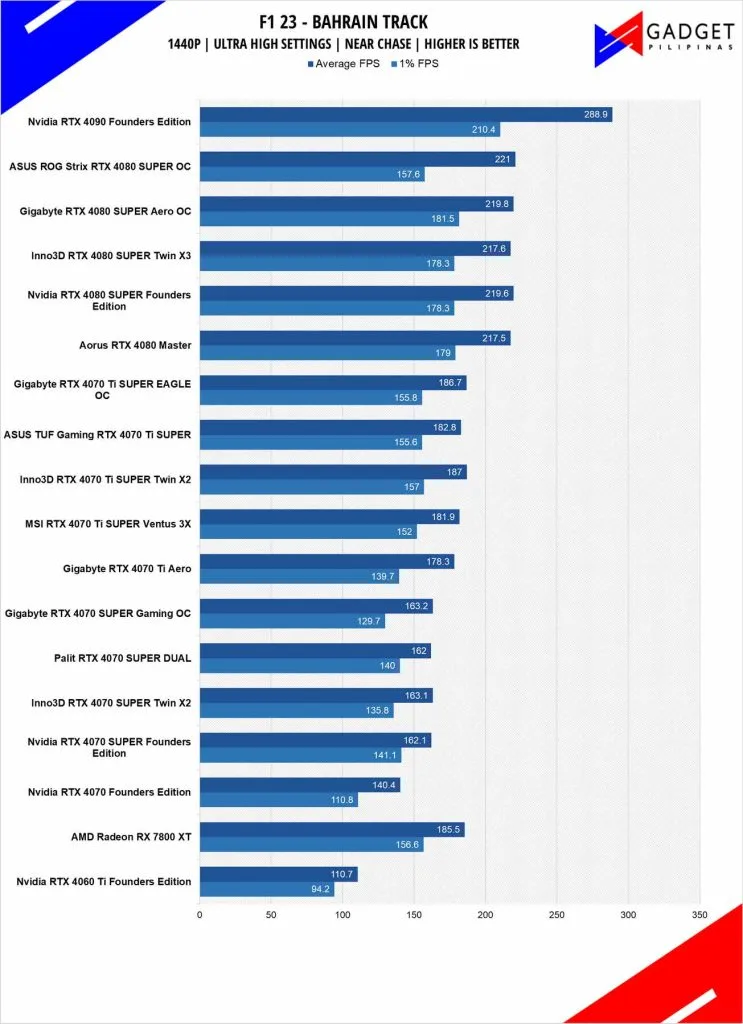

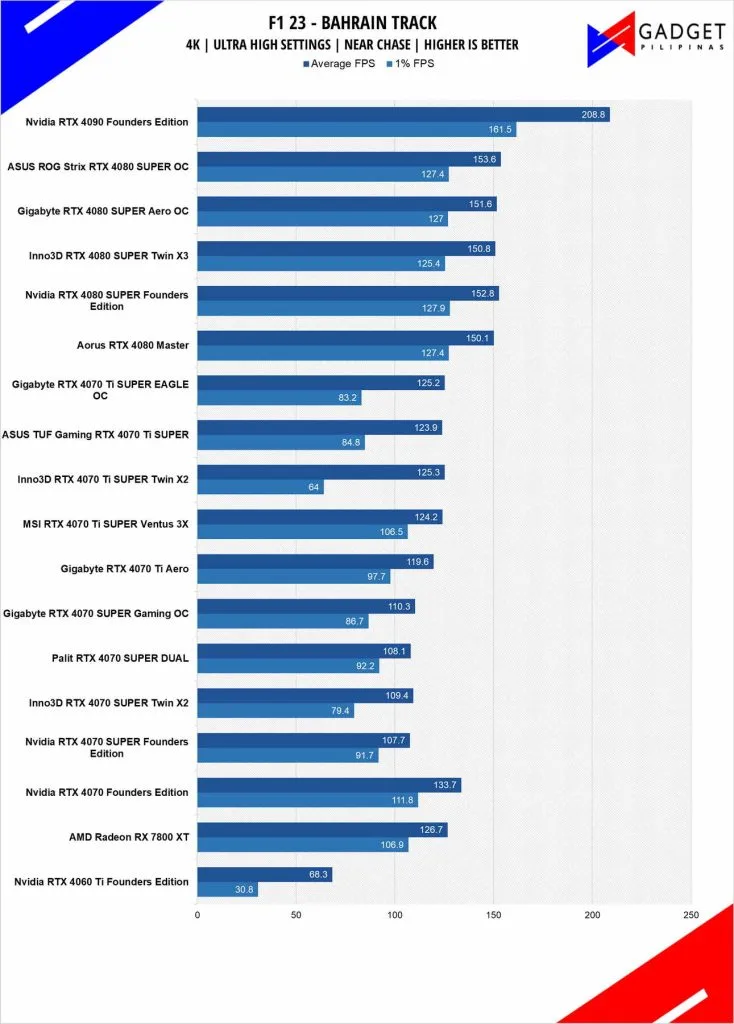

F1 23

F1 23 is the official video game of the 2023 Formula One and Formula 2 championships developed by Codemasters. F1 2023 is the sixteenth installment in the franchise and uses the Ego Engine 4.0. F1 233 is a good representation of racing games thanks to its realistic graphics and fairly demanding spec requirements as well as support for Ray Tracing and the latest upscaling technologies such as DLSS, XeSS, and FSR.

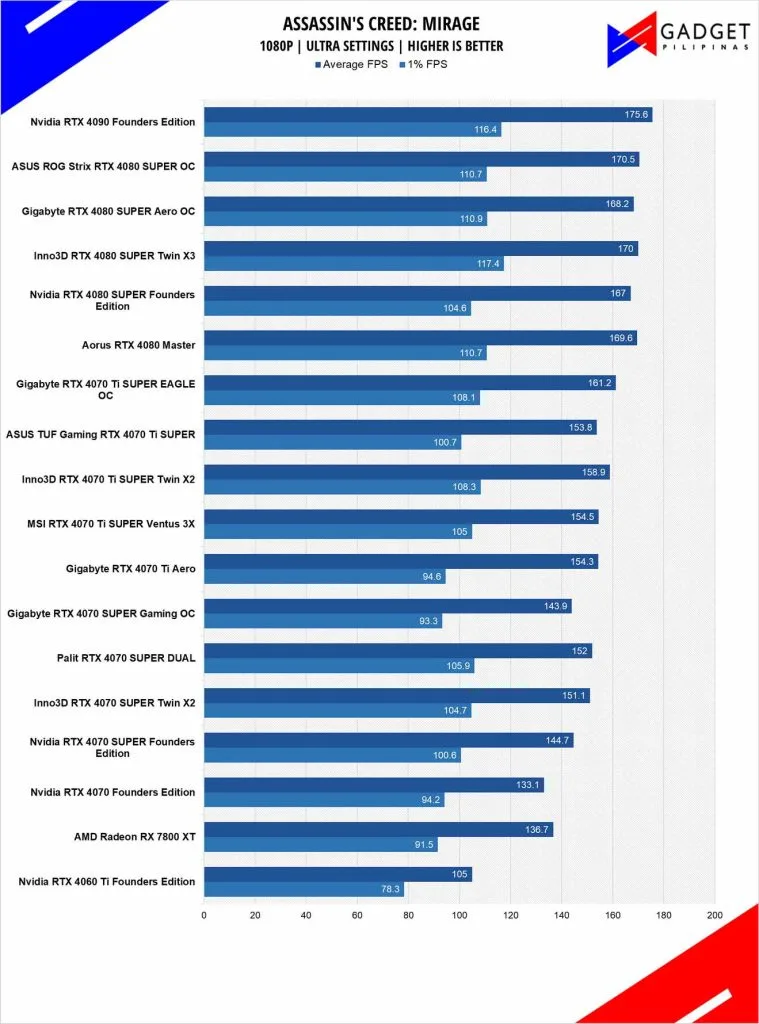

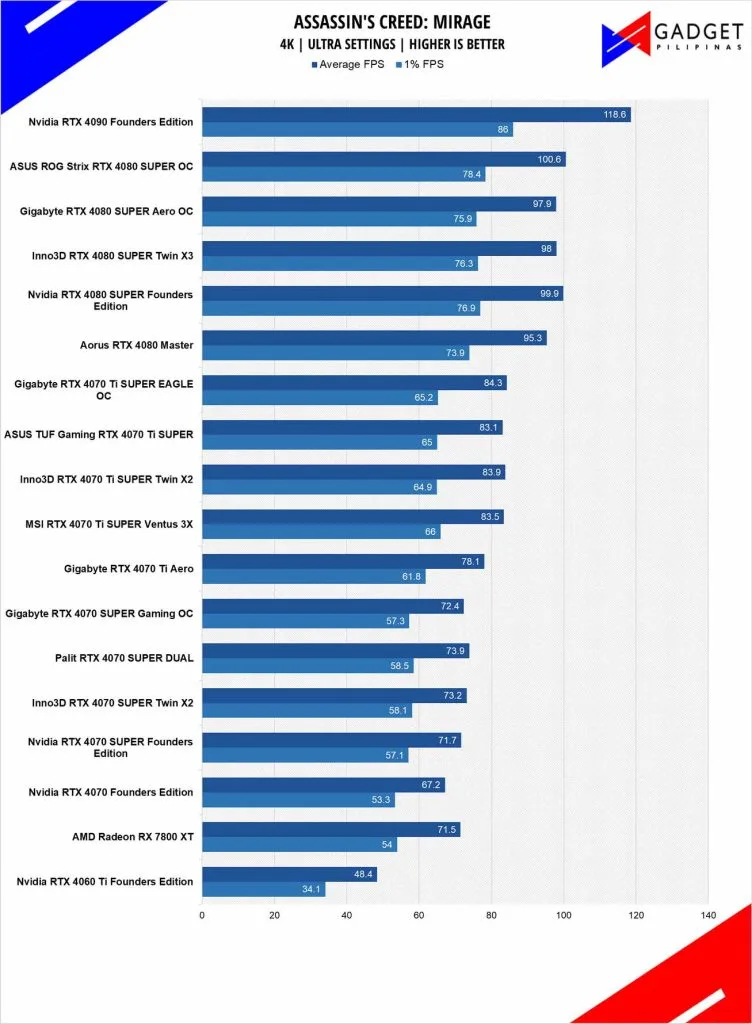

ASSASSIN’S CREED: MIRAGE

Assassin’s Creed Mirage is the latest Assassin’s Creed game from Ubisoft making it the thirteenth major installment in the franchise. It uses the AnvilNext 2.0 game engine and is the very first AC game to support the latest upscaling technology such as XeSS, FSR, and DLSS.

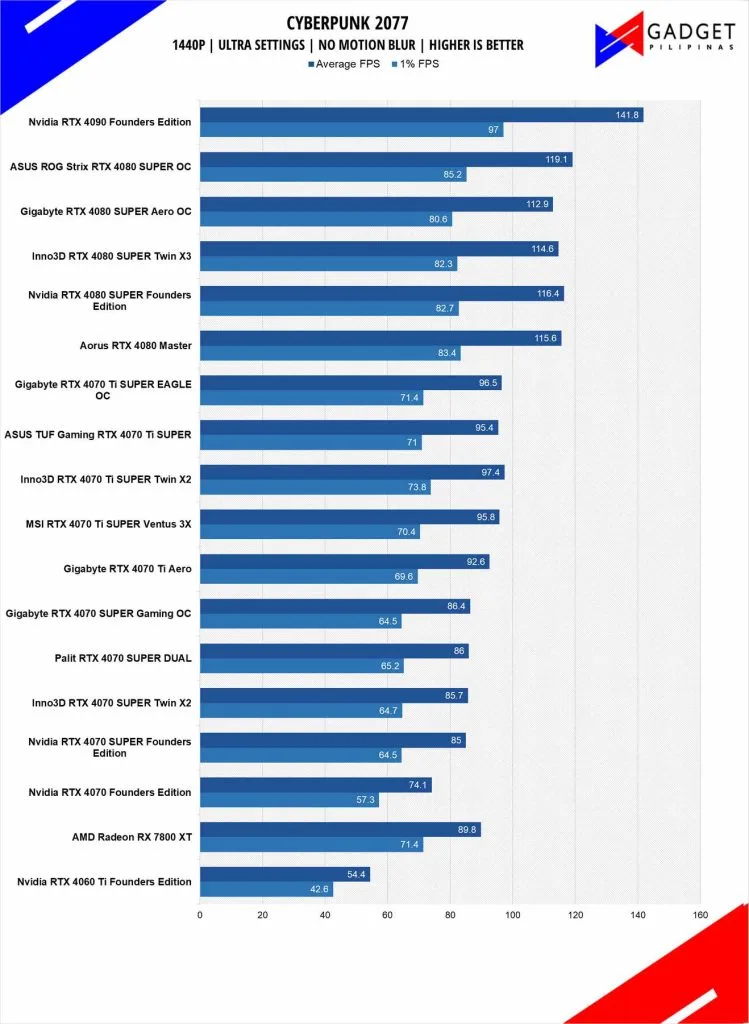

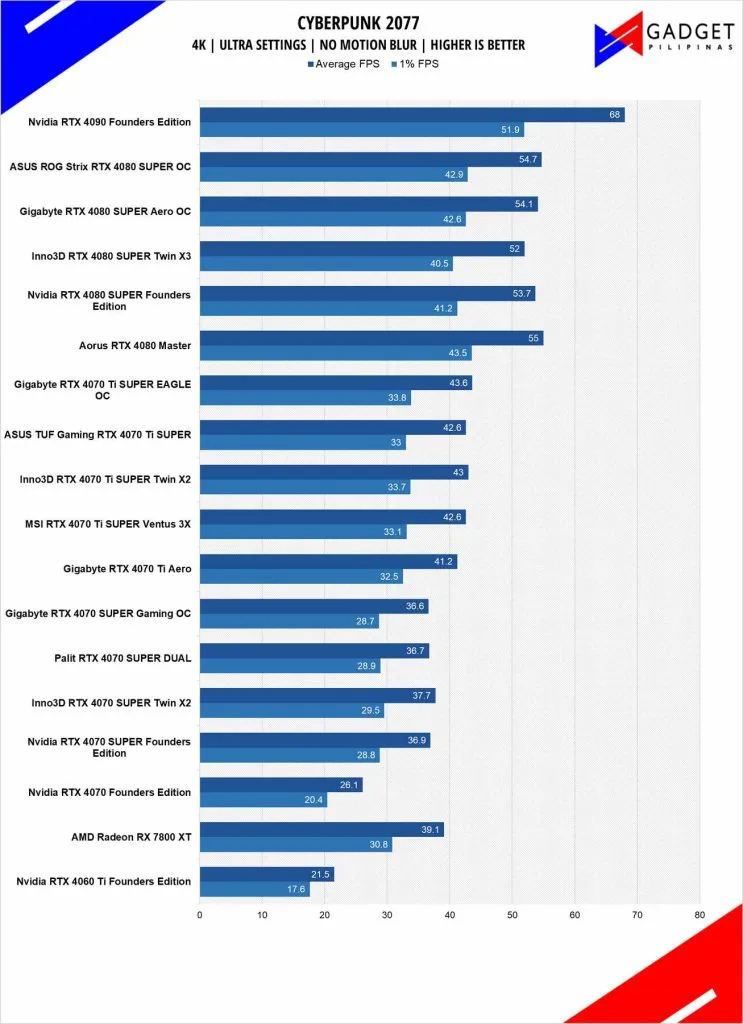

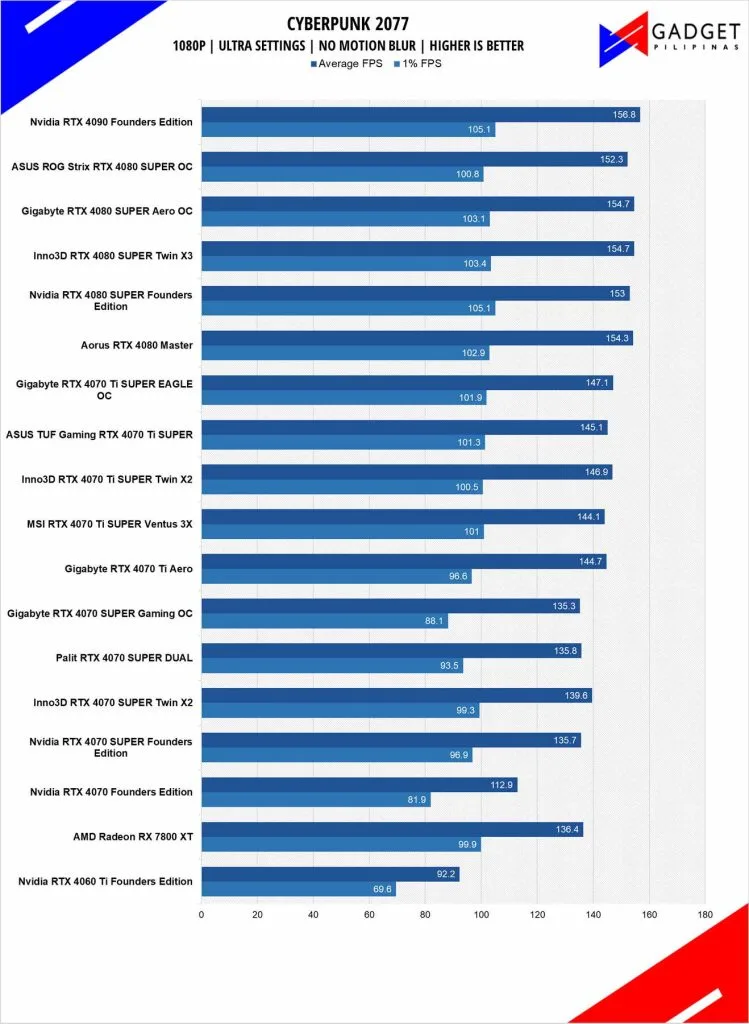

Cyberpunk 2077

Cyberpunk 2077 is arguably the most hyped game of 2020. Developed by CD Projekt Red, the dystopian open-world, action-adventure RPG sports is one of the most demanding titles to date. Cyberpunk 2077 also supports three Ray Tracing settings as well as DLSS which makes the game a great tool to measure Ray tracing performance for both AMD and Nvidia graphics cards.

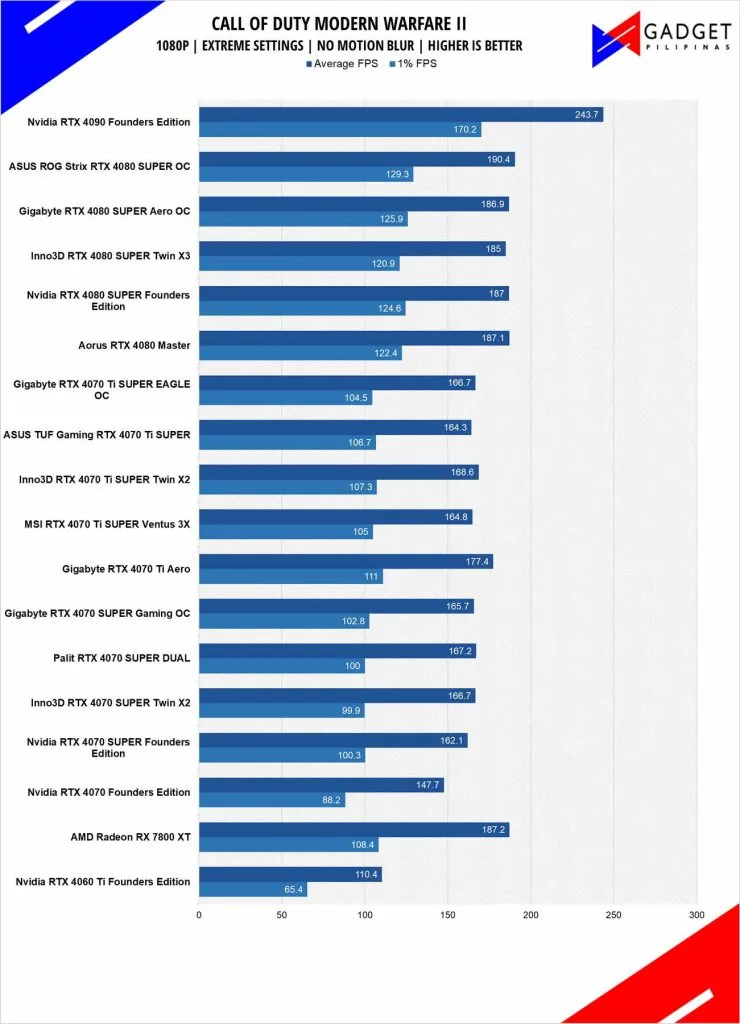

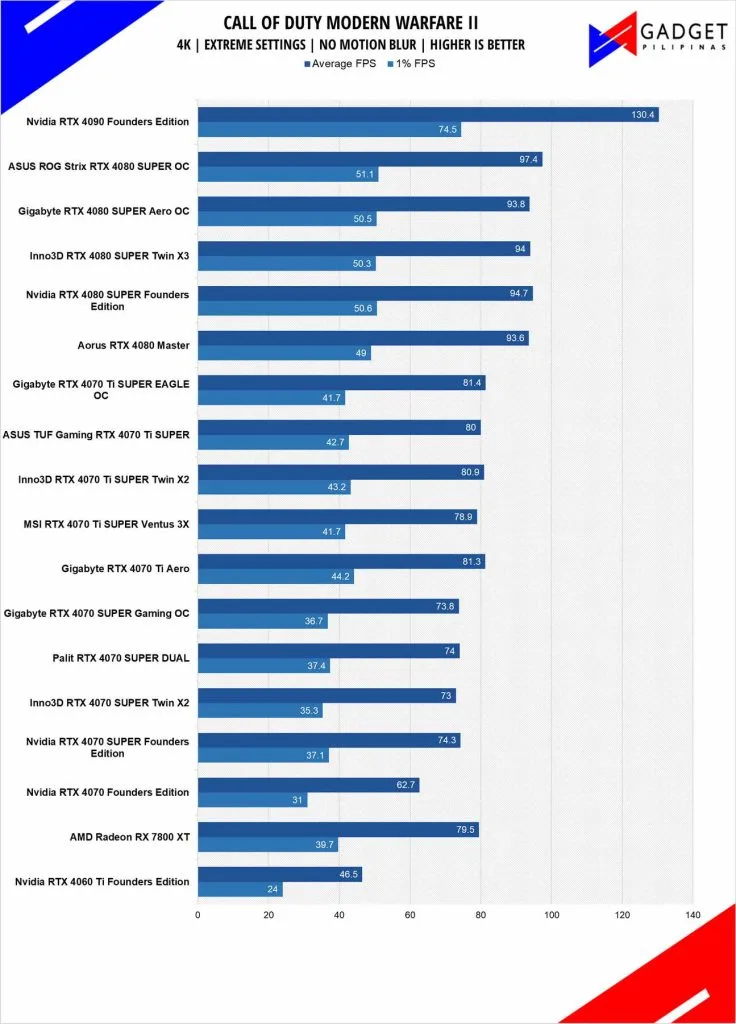

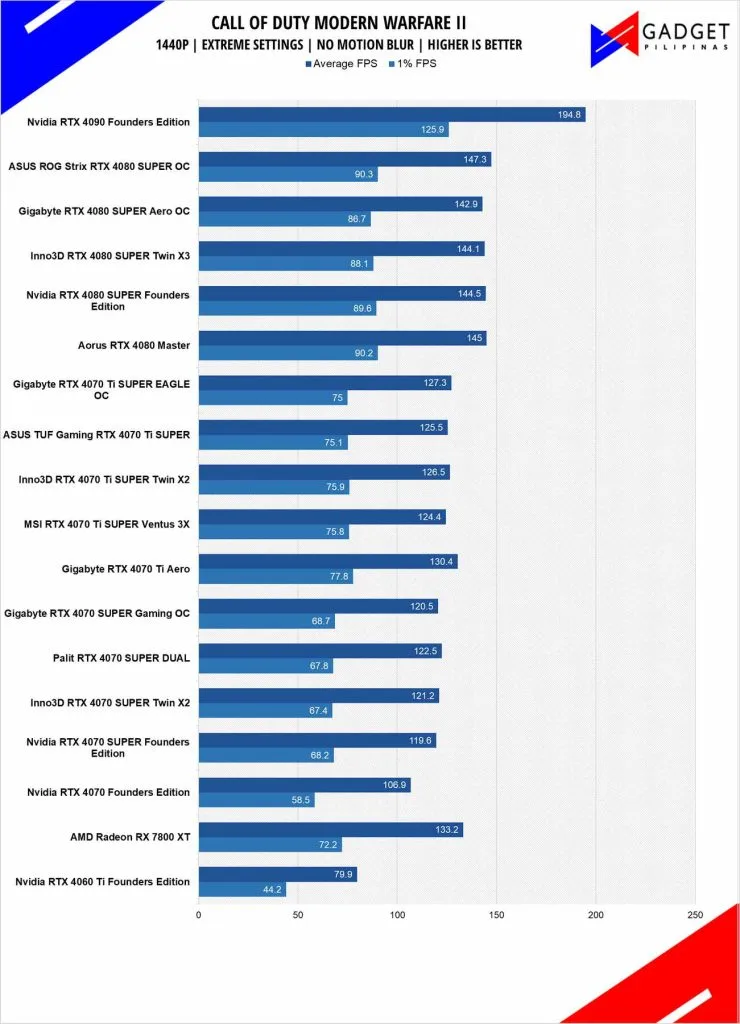

CALL OF DUTY MODERN WARFARE

The latest installment in the Call of Duty franchise is a sequel to the much-loved Modern Warfare game that launched in 2019. Call of Duty Modern Warfare II is one of the most demanding titles to date, pushing the latest hardware from Intel, AMD, and Nvidia. CODMW2 is one of the few games that comes with the DLSS feature without Ray Tracing.

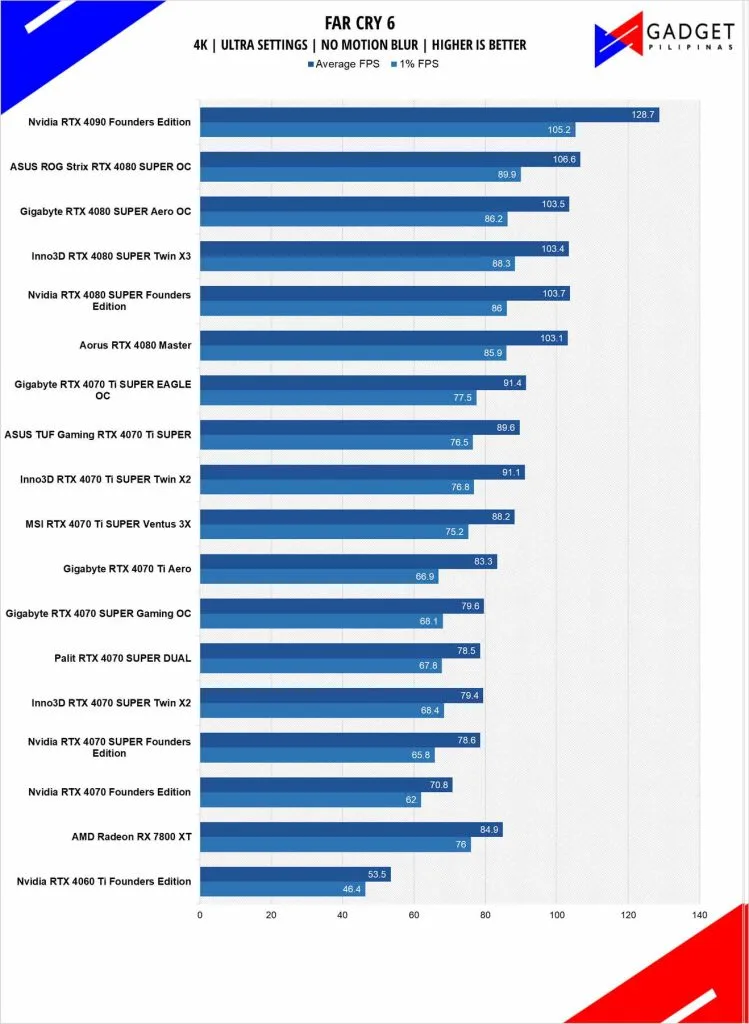

Far Cry 6

FarCry 6 is an FPS game published by Ubisoft and uses the Dunia engine. It heavily relies on and takes advantage of DirectX 12 to render a realistic environment that makes it taxing to both the CPU and GPU. It’s also the first game of the franchise to support Ray Tracing.

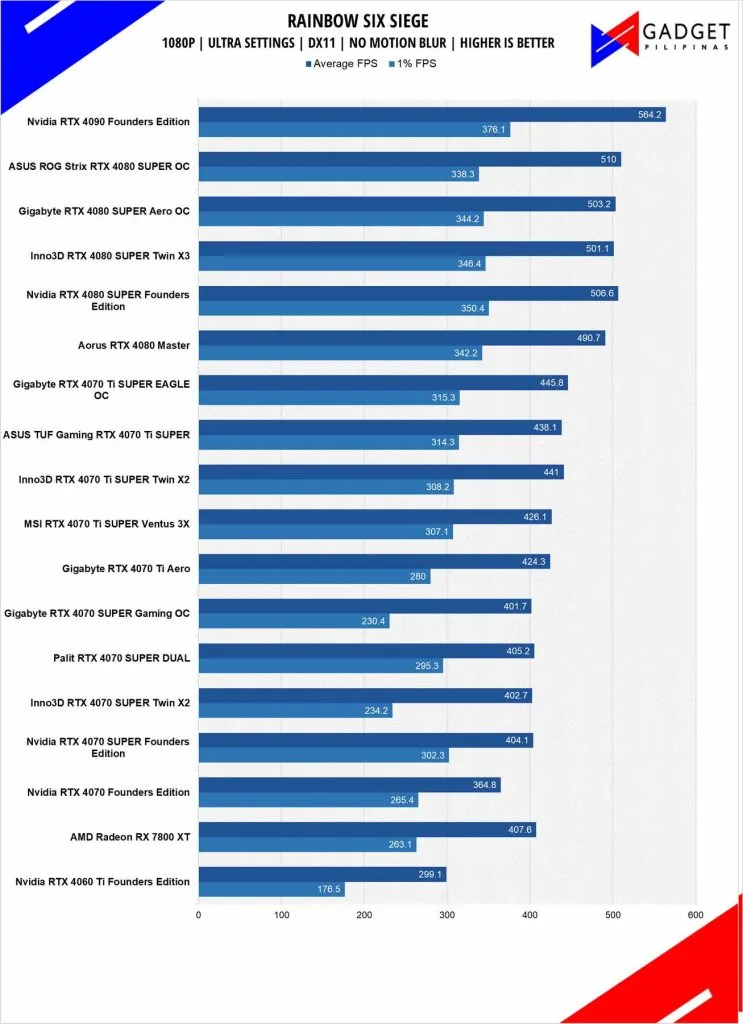

Rainbow Six Siege

Rainbow Six Seige is one of the few popular AAA games that’s still popular in 2021 due to its competitive gameplay mechanics. R6S uses the AnvilNext game engine, which the game’s publisher, Ubisoft, developed. As of writing, Rainbow Six Siege is currently the most popular Tom Clancy title beating out Wildlands, Breakpoint, and even Division 2.

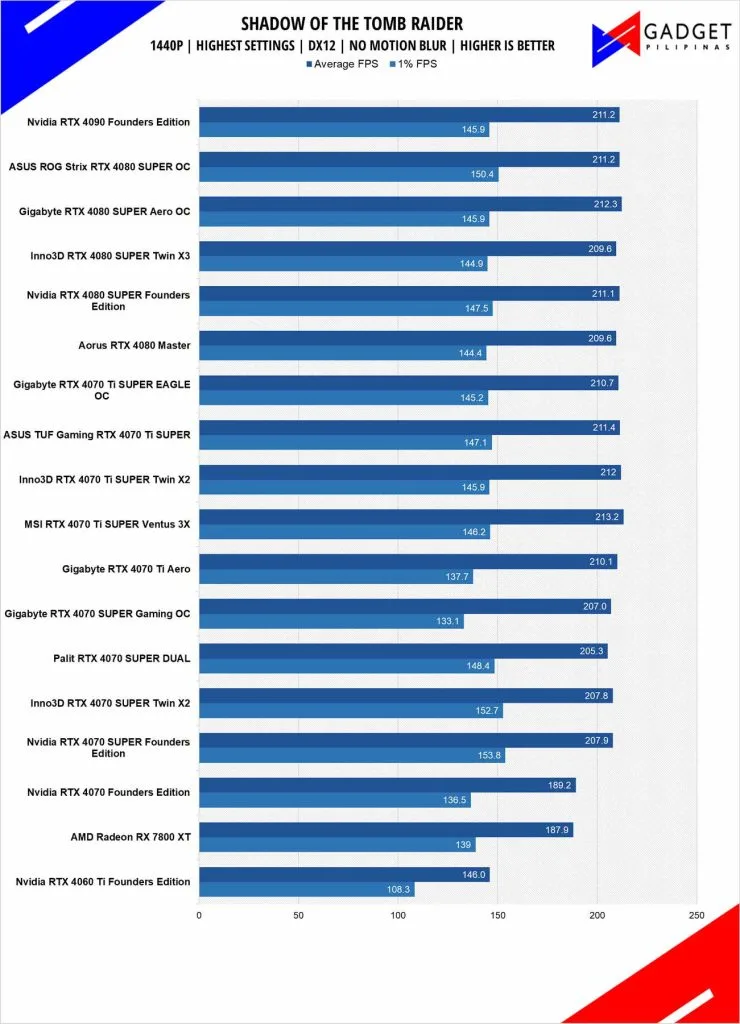

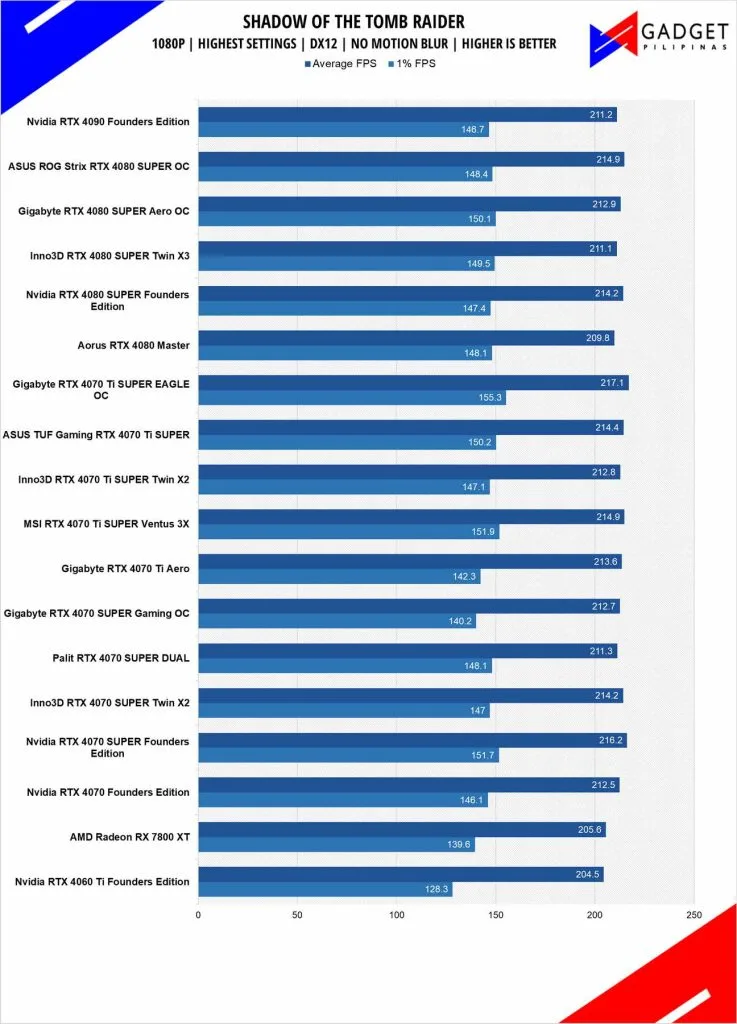

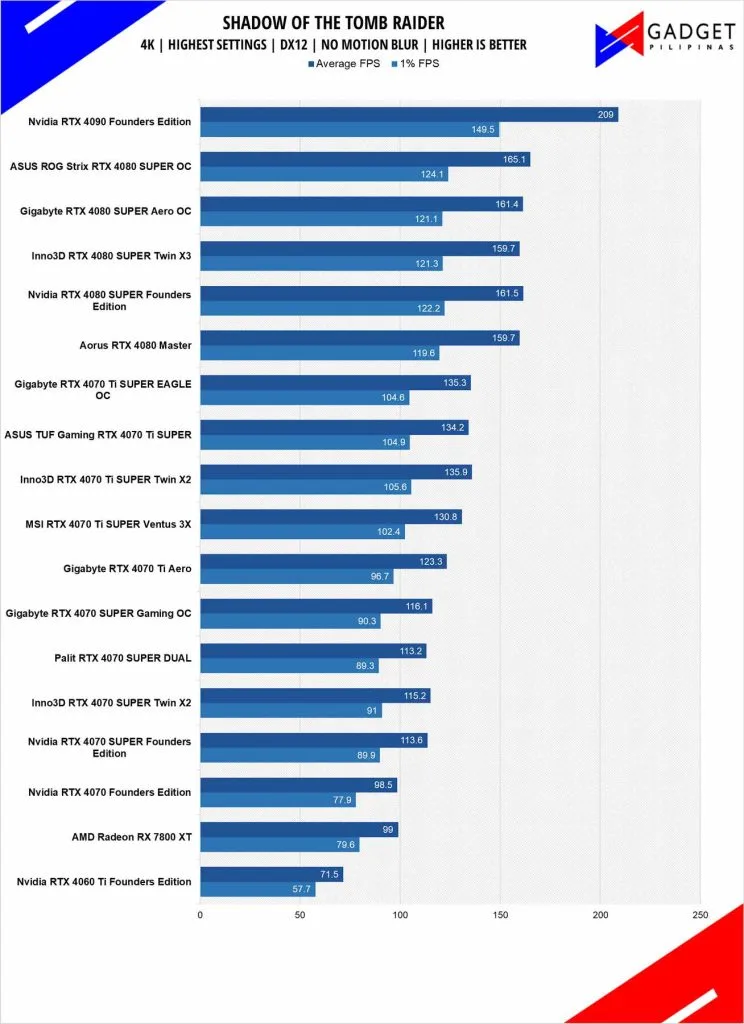

Shadow of The Tomb Raider

Shadow of The Tomb Raider or SOTR is the latest installment of the Lara Croft Tomb Raider franchise. Developed by Square Enix, SOTR uses the Foundation engine and is further enhanced by Eidos Montreal. SOTR is also one of the first games to come out with Ray Tracing and DLSS support.

Metro Exodus

Metro Exodus is the third Metro game trilogy based on Dmitry Glukhovsky’s novels. The game is a first-person shooter with survival horror and stealth elements. The post-apocalyptic game uses 4A Engine by 4A games. Released last 2019, Metro Exodus remains to be one of the most graphically pleasing and demanding games that’s popular to date.

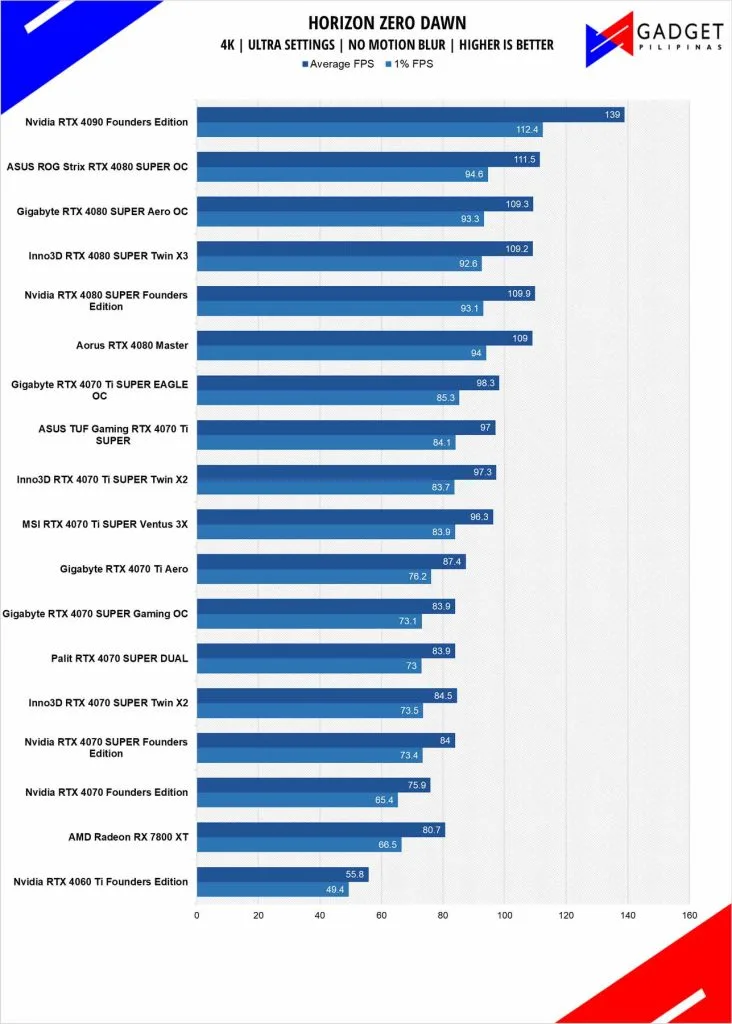

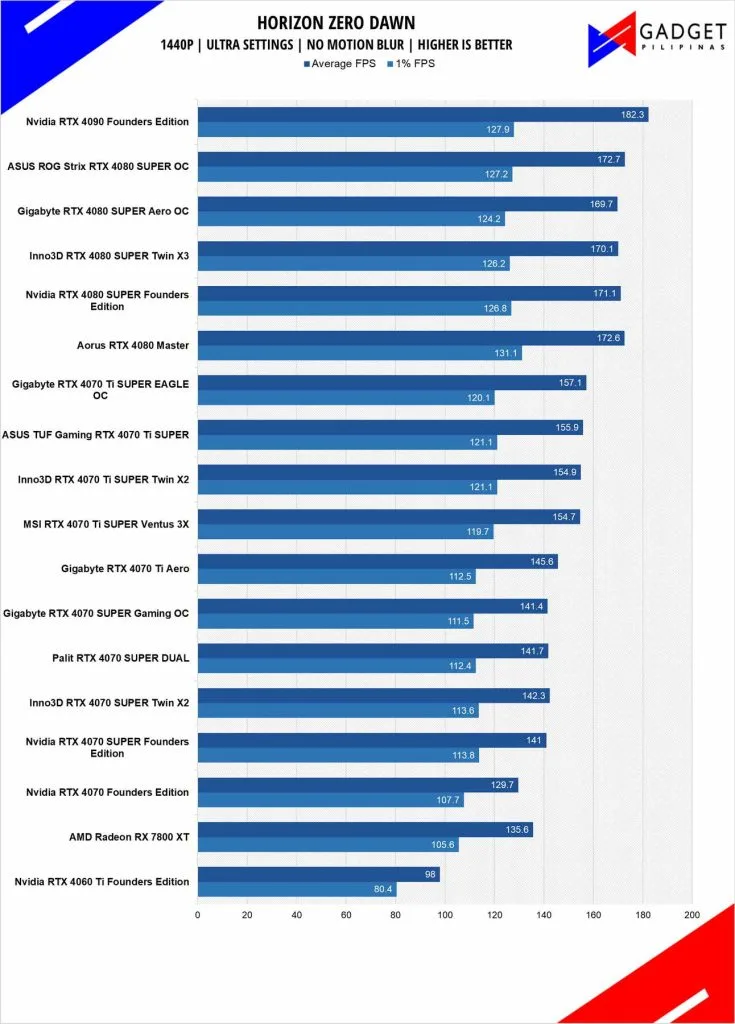

HORIZON ZERO DAWN

Horizon Zero Dawn is one of the most popular console-port RPG developed by Guerilla Games and published by Sony Interactive Entertainment. Horizon Zero Dawn is a multi-award-winning action RPG, and its popularity resulted in an exclusive Complete Edition game bundle on Steam.

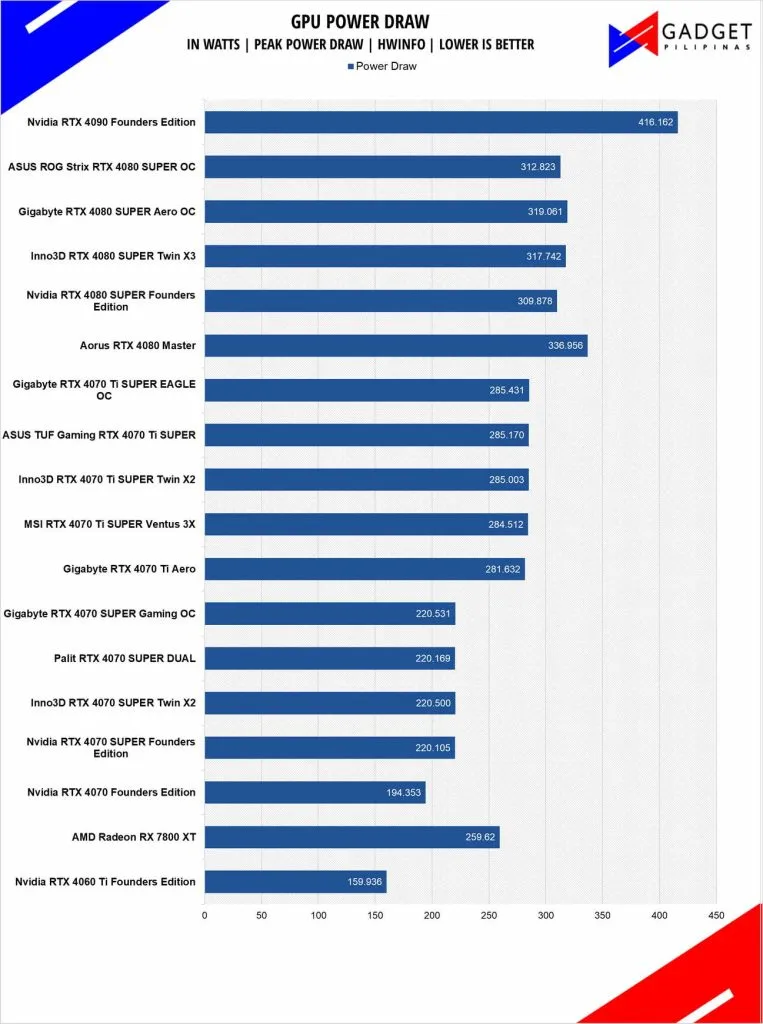

Palit RTX 4070 SUPER DUAL Temperatures and Power Draw

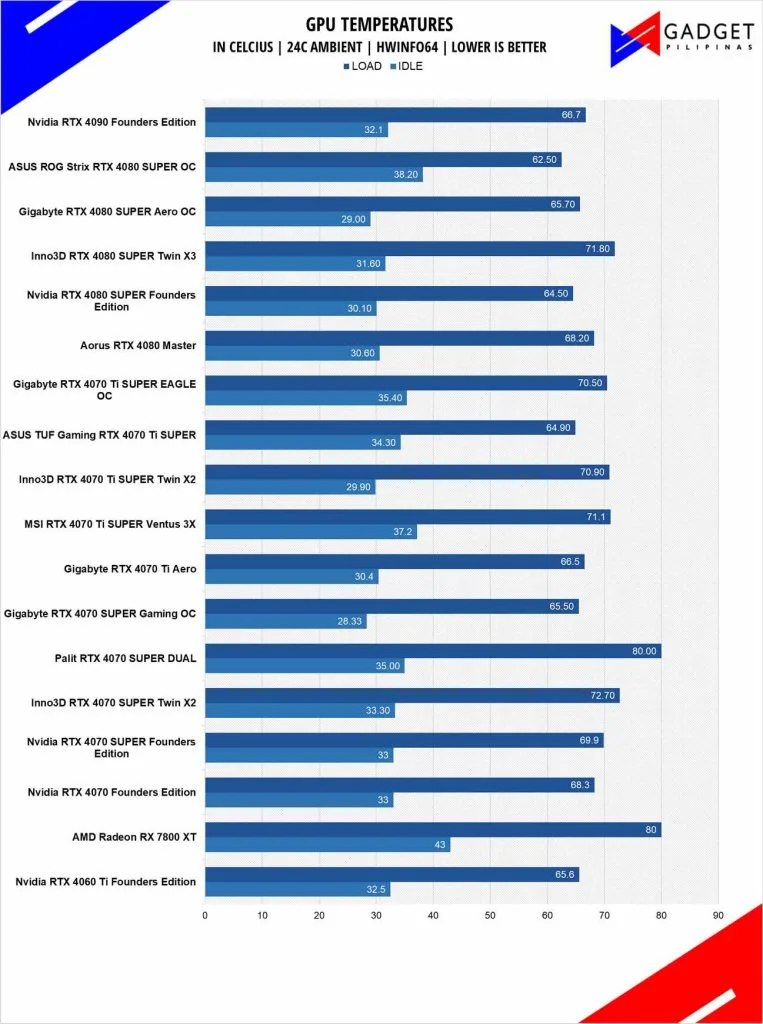

Despite being larger than the other two-slot RTX 4070 SUPER GPUs, the Palit RTX 4070 SUPER performed the worst out of all our RTX 4070 SUPERs with a peak temperature of 80°C making it our hottest GPU alongside the AMD Radeon RX 7800 XT.

Power Draw at 220.169W is inline with the RTX 4070 SUPER’s ‘rated TGP of 220W.

Performance Summary Conclusion

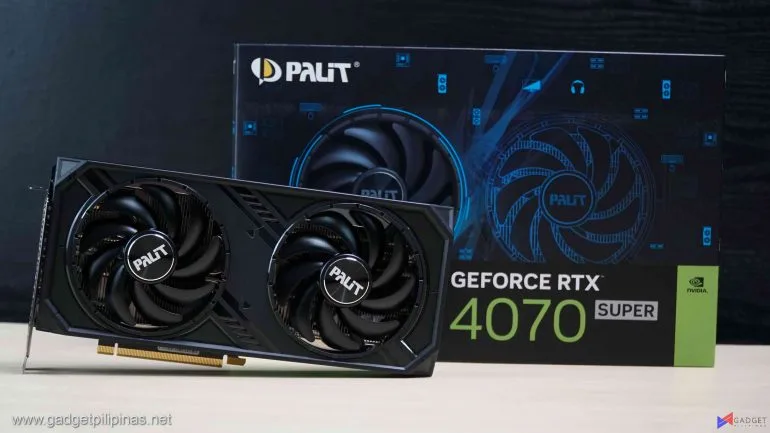

Palit RTX 4070 SUPER DUAL Review PH
Palit RTX 4070 SUPER DUAL Review PH

The Palit RTX 4070 SUPER DUAL performs pretty much in line with other RTX 4070 SUPERs in our test suite even beating our RTX 4070 SUPER Founders Edition in some cases. Unfortunately, that comes at the cost of temperatures. To be clear, 80 degrees for a GPU isn’t a big deal especially when you’re not dropping frames. But that leaves you with little headroom for overclocking should you need the extra performance and of course, once you get less airflow with dust.

The Palit RTX 4070 SUPER offers decent aesthetics, at least compared to our Twin X2 variant, and RGB lighting that isn’t common with entry-level, MSRP cards. That said, the Palit RTX 4070 SUPER DUAL tries to be a jack of all trades by getting points in aesthetics, features, and performance as opposed to other entry-level GPUs compromising on every department apart to maximize performance. If you lean towards the latter, then this card isn’t for you.

Those looking for a well-rounded card that can fit any build and are looking to tweak their GPU to compensate for the high temperatures, then the Palit RTX 4070 SUPER retailing at Php 36,995 is a steal deal – so much that the aforementioned trade-off is worth taking considering the lower than SRP savings you’re getting.

Palit RTX 4070 SUPER Review Badge
Palit RTX 4070 SUPER Review Badge

Grant is a Financial Management graduate from UST. His passion for gadgets and tech crossed him over in the industry where he could apply his knowledge as an enthusiast and in-depth analytic skills as a Finance Major. His passion allows him to earn at the same time help Gadget Pilipinas' readers in making smart, value-based decisions and purchases with his reviews and guides.
