The Steam Machine is Valve’s distinctive approach to bringing the rich Steam gaming library and flexible PC hardware directly into the living room. Designed to bridge the gap between traditional consoles and customizable gaming PCs, Steam Machine integrates the best of both worlds, offering high performance, easy access to games, and a console-like experience for users who crave convenience alongside power.
Steam Machine Technical Specifications
The Steam Machine boasts over six times the horsepower of the Steam Deck. It uses a semi-custom AMD Zen 4 processor with 6 cores and 12 threads, clocking up to 4.8 GHz with a 30W TDP. It uses a semi-custom AMD RDNA 3 GPU with 28 compute units running at a sustained 2.45 GHz clock and a 110W TDP. The machine is equipped with 16GB DDR5 system RAM and 8GB GDDR6 VRAM.
The device can be configured with either a 512GB or a 2TB NVMe SSD. Both models include a high-speed microSD card slot for additional storage. Connectivity features include dual-band Wi-Fi 6E (2×2), Bluetooth 5.3 with a dedicated antenna, and an integrated 2.4 GHz Steam Controller wireless adapter.

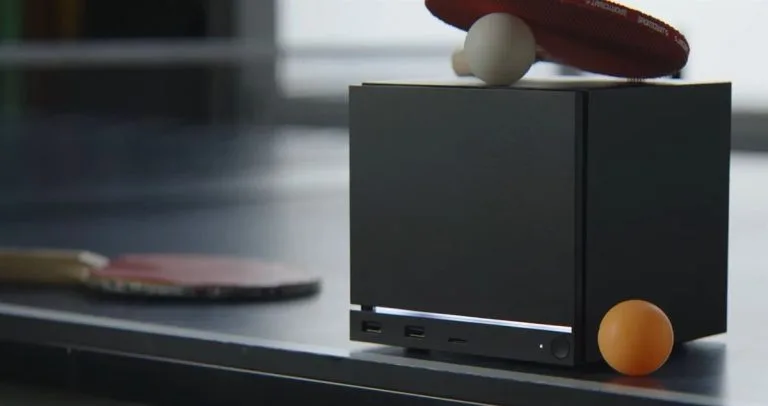

The Steam Machine also supports DisplayPort 1.4 with resolutions up to 4K at 240Hz or 8K at 60Hz, HDR, FreeSync, daisy-chaining, and Gigabit Ethernet. HDMI 2.0 provides up to 4K at 120Hz with similar features. For I/O, it has front-facing USB-A 3.2 Gen 1 ports, rear USB-A 2.0 ports, and a USB-C 3.2 Gen 2 port. There’s even a customizable 17-LED RGB strip that indicates system status.
Physically, the Steam Machine is compact and lightweight at 152 mm tall, 162.4 mm deep, and 156 mm wide, weighing 2.6 kg.
SteamOS and User Experience
Running on SteamOS 3, based on Arch Linux, the machine offers a KDE Plasma desktop environment for flexibility beyond gaming. SteamOS provides a tailored user interface optimized for controller navigation, game discovery, and multimedia functionality, ensuring seamless living room integration.
Integration With Steam Controller and Accessories
Steam Machine is optimized for use with the Steam Controller and other peripherals. This focus supports intuitive gameplay and broad compatibility with diverse genres found on Steam. Accessories like wireless controllers and streaming devices underscore Valve’s commitment to a unified, accessible ecosystem.
Frequently Asked Questions (FAQ)
Q: What is a Steam Machine?
A: A Steam Machine is a PC-based device designed to run SteamOS and deliver console-style gaming in the living room.
Q: Can I customize a Steam Machine?
A: Yes, most Steam Machines offer flexible configurations and allow hardware upgrades and customization.
Q: What are the specifications of the Steam Machine?
A: The Steam Machine uses a semi-custom AMD Zen 4 6-core/12-thread CPU up to 4.8 GHz, an AMD RDNA 3 GPU with 28 compute units, 16GB DDR5 RAM plus 8GB GDDR6 VRAM, and storage options of 512GB or 2TB NVMe SSD, with Wi-Fi 6E, Bluetooth 5.3, and extensive display and USB connectivity.
Q: Do Steam Machines support game streaming?
A: Steam Machine is designed to support in-home streaming and synchronize with Steam accounts for seamless gaming experiences.
Q: What operating system do Steam Machines use?
A: Steam Machines run on SteamOS 3, an Arch Linux-based operating system built by Valve for gaming.
