Kingston FURY, the high-performance division of Kingston Technology, announces the Kingston FURY Renegade G5 PCIe 5.0 NVMe M.2 SSD, for gaming and high-power users seeking maximum performance.
“We’re eager to announce this addition to the Kingston FURY family of high-performance solutions,” said Kingston. “Between the power of Kingston FURY Renegade G5 SSD and Kingston FURY memory, high-power users and hardware enthusiasts can create their ultimate system.”

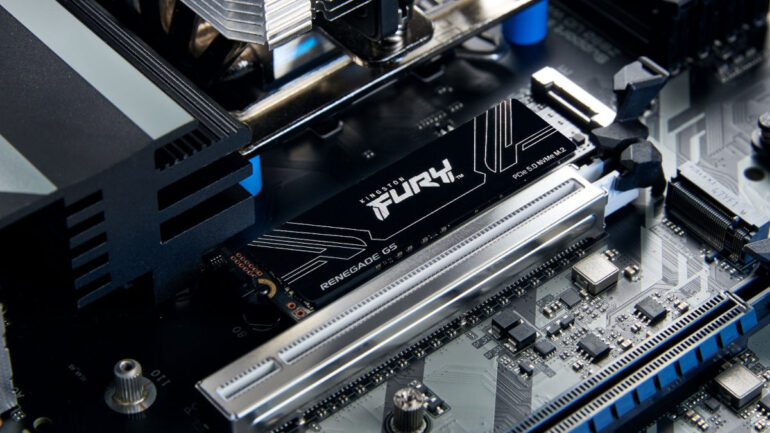

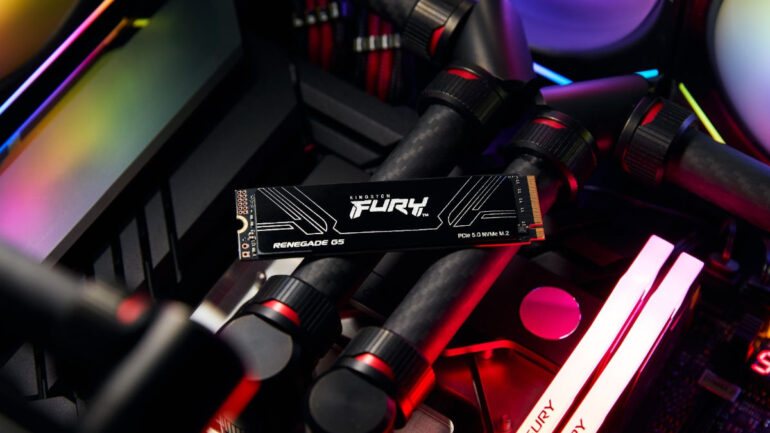

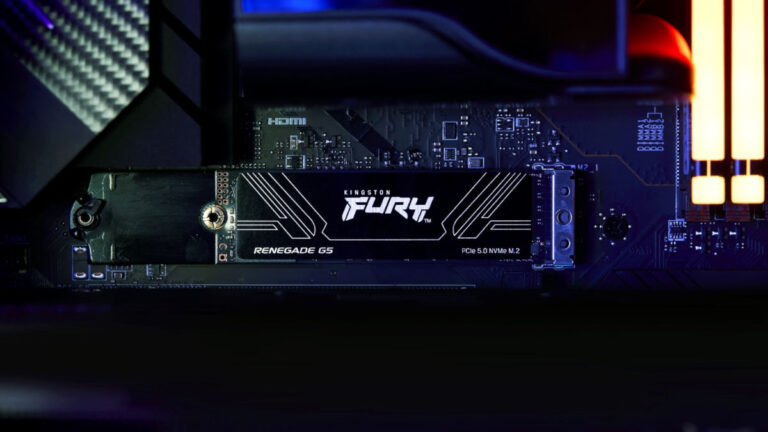

Kingston FURY Renegade G5
The Kingston FURY Renegade G5 leverages the latest PCIe Gen5 x 4 controller and 3D TLC NAND to reach speeds of up to 14,8000/14,000 MB/s read/write and over 2M IOPS. It is optimized for performance PC and workstations to eliminate storage bottlenecks and significantly reduce load times. This makes it ideal for when you’re in high-intensity gaming, editing, or a data-heavy workflow.
The new NVMe M.2 SSD from Kingston FURY was engineered for smooth operation with the Silicon Motion SM2508 controller based on 6nm lithography and low-power DDR4 DRAM cache. Moreover, the tech also reduces heat and energy consumption.
The Kingston FURY Renegade G5 is available in 1024GB, 2048GB, and 4096GB. It is backed by a limited five-year warranty, free technical support, and Kingston reliability.
Full Specifications
- Extreme PCIe Gen5 Speeds: PCIe Gen5 x4 speeds up to 14,800/14,000MB/s1 read/write and up to 2,200,000/2,200,000 IOPS1 performance
- Advanced Thermal Design: Designed with the Silicon Motion SM2508 controller based on 6nm lithography, which allows for better thermal management, low-power DDR4 DRAM cache providing less power consumption, independent Buck IC for consistent power draw, and a 12-layer PCB for enhanced signal quality and superior data integrity
- Seamless Integration: Compact M.2 2280 form factor and is backward compatible with Gen3 and Gen4 systems
- Maximized Capacity: Full capacities up to 4096GB to store your favorite games and media
- Form Factor: M.2 2280
- Interface: PCIe 5.0 x4 NVMe
- Capacities: 1024GB, 2048GB, 4096GB
- Controller: Silicon Motion SM2508
- NAND: 3D TLC
- DRAM Cache: Yes
- DirectStorage Supported: Yes
- Sequential Read/Write:
- 1024GB – up to 14,200/11,000MB/s
- 2048GB – up to 14,700/14,000MB/s
- 4096GB – up to 14,800/14,000MB/s
- Random 4k Read/Write:
- 1024GB – up to 2,200,200/2,150,000 IOPS
- 2048GB – 4096GB – up to 2,200,000/2,200,000 IOPS
- Endurance (TBW/DWPD):
- 1024GB – 1.0PB
- 2048GB – 2.0PB
- 4096GB – 4.0PB
- Power Consumption:
- 1024GB – 0.27W Avg / 6.6W @ 14.2G / 6.6W (MAX)
- 2048GB – 0.27W Avg / 7.0W @ 14.7G / 7.0W (MAX)
- 4096GB – 0.27W Avg / 7.1W @ 14.8G / 9.5W (MAX)
- Storage Temperature: -40°C~85°C
- Operating Temperature: 0°C ~ 70°C
- Dimensions: 80mm x 22mm x 2.3mm
- Weight:
- 1024GB – 7.3g
- 2048GB-4096GB – 7.7g
- Vibration Operating: 2.17G Peak (7-800Hz)
- Vibration Non-operating: 20G Peak (20-1000Hz)
- MTBF: 2,000,000 hours
- Warranty/support: Limited 5-year warranty with free technical support
For more information, visit the official Kingston website and Facebook.
