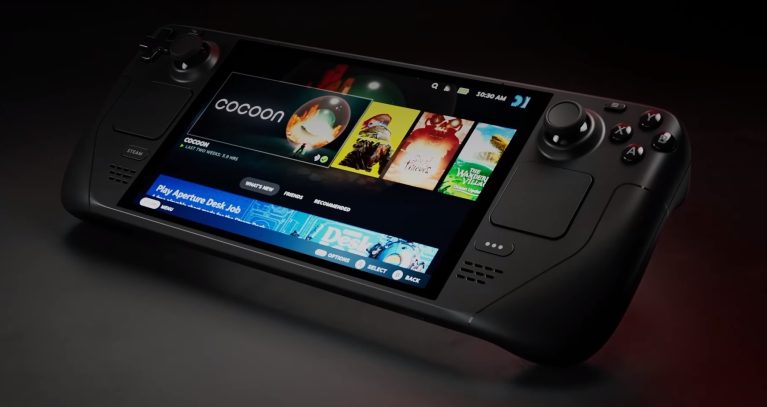

Steam Deck OLED 1

Contents (maximize to view)

The Steam Deck was such a well-loved device, thanks to the capabilities that it delivered for a price that was very accessible. Now, Valve has announced the Steam Deck OLED, which brings welcome upgrades from its predecessor.

To start off, the new version has a larger and brighter 7.4-inch HDR OLED display. While the resolution is the same (1280 x 800), it’s now capable of delivering up to a 90Hz refresh rate. That’s a good upgrade from the Steam Deck’s 60Hz 7-inch IPS LCD. The device is also lighter at approximately 640 grams (vs 669 grams).

Steam Deck OLED 2

Under the hood, Steam Deck OLED is powered by a 6nm AMD APU built on with 8 RDNA 2 Compute Units, along with 16GB of slightly faster LPDDR5 RAM and comes in either 512GB or 1TB storage capacity and still supports a microSD card.

For connectivity, Steam Deck OLED features Bluetooth 5.3 and a dedicated Bluetooth Antenna. Now, it also, supports Wi-Fi 6E allowing for speeds that exceed 1Gbps and lower latency.

Steam Deck OLED 3

The battery has also been upped to a 50Whr unit, which according to Valve should give you around 3 to 12 hours of gameplay, depending on your settings and what game your playing. You can check out the full list of improvements here.

Bye Bye Steam Deck 64GB and 512GB

Valve has also announced that it will be phasing out the Steam Deck’s 64GB and 512GB models, with its last stocks to be sold at discounted prices, leaving only the 256GB model for the old version.

Steam Deck OLED Specifications

Compute
Processor6 nm AMD APU
CPUZen 2 4c/8t, 2.4-3.5GHz (up to 448 GFlops FP32)
GPU8 RDNA 2 CUs, 1.6GHz (1.6 TFlops FP32)
APU power4-15W
RAM16 GB LPDDR5 on-board RAM (6400 MT/s quad 32-bit channels)
Storage512GB NVMe SSD
1TB NVMe SSD
Both include high-speed microSD card slot
Controls and Input
Gamepad controlsA B X Y buttons
D-pad
L & R analog triggers
L & R bumpers
View & Menu buttons
4 x assignable grip buttons
Thumbsticks2 x full-size analog sticks with capacitive touch
HapticsHD haptics
Trackpads2 x 32.5mm square trackpads with haptic feedback
Pressure-sensitivity for configurable click strength
Gyro6-Axis IMU
Display
Resolution1280 x 800 x RGB
TypeHDR OLED
Display size7.4” diagonal
Maximum brightness1,000 nits peak brightness (HDR)
600 nits (SDR)
Contrast ratio> 1,000,000 : 1
Color gamut110% P3
Refresh rateup to 90Hz
Response time<0.1 ms
Touch enabledHigh-performance touch
Sensors
LightDual ambient light sensor ALS
Connectivity
BluetoothBluetooth 5.3 (support for controllers, accessories, and audio)
Dedicated Bluetooth antenna
Wi-FiTri-band Wi-Fi 6E radio, 2.4GHz, 5GHz, and 6GHz 2 x 2 MIMO, IEEE 802.11a/b/g/n/ac/ax
Audio
ChannelsStereo with embedded DSP for an immersive listening experience
MicrophonesDual microphone array
Headphone / mic jack3.5mm stereo headphone / headset jack
DigitalMultichannel audio via DisplayPort over USB-C, standard USB-C, or Bluetooth 5.3
Power
InputPD 3.0 Type C power supply, 45W
2.5m cable
Battery50Whr battery. 3-12 hours of gameplay
Battery life estimates based on running titles at 30FPS, 50% brightness, and 50% volume. Running titles under different settings may result in faster battery discharge.
Expansion
microSDUHS-I supports SD, SDXC, and SDHC
External connectivity for controllers & displaysDisplay port over Type C; up to 8K @60Hz or 4K @120Hz, USB3 gen 2
Size and Weight
Size298mm x 117mm x 49mm
WeightApprox. 640 grams
Software
Operating SystemSteamOS 3 (Arch-based)
DesktopKDE Plasma

Steam Deck OLED Pricing

Steam Deck OLED is priced at USD 549.99 for the 512GB and 649.99 for the 1TB variant. Both will come with a carrying case, but the latter will have a removable liner, as well as an exclusive startup movie, and virtual keyboard theme.

Sources 1, 2, 3

f926e6d0d904fe0136e191ccce71a963?s=150&d=mp&r=g
 | Website

Emman has been writing technical and feature articles since 2010. Prior to this, he became one of the instructors at Asia Pacific College in 2008, and eventually landed a job as Business Analyst and Technical Writer at Integrated Open Source Solutions for almost 3 years.
