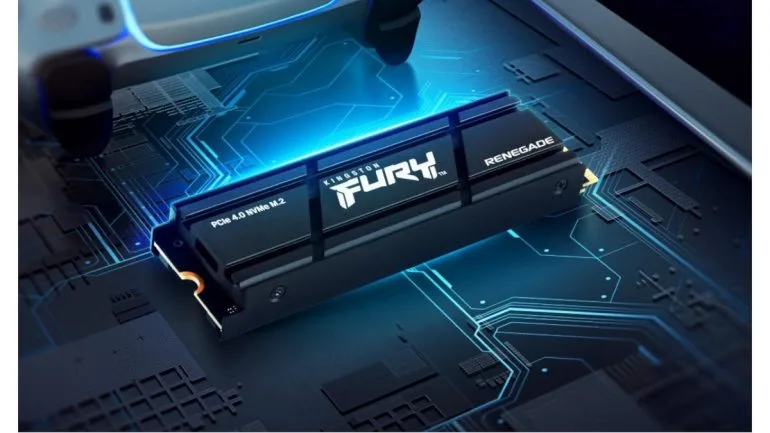

Kingston FURY SSD To Include Heatsink Option

Kingston FURY announced the addition of the Kingston FURY Renegade SSD with Heatsink, its second-generation PCIe 4.0 NVMe M.2 drive for console and PC gamers which can maintain speed and temperature while still delivering top-notch performance using the Gen 4×4 controller.

By using all the available bandwidth of PCIe 4.0, Kingston FURY Renegade SSDs achieve speeds up to 7,300/7,000MB/s read/write and up to 1,000,000 IOPS to deliver consistency for a great gaming experience.

• Kingston FURY Renegade SSD with a low profile, graphene aluminum heat spreader keeps your drive cool during intense usage and brings superior performance to the tightest of spaces in gaming PCs and laptops.

• Kingston FURY Renegade SSD with Heatsink, the ultimate in aesthetics with an additional layer of thermal dispersion, so when the game heats up, your PS5 console stays cool.

“The design of the Kingston FURY Renegade SSD pushes the limits of PCIe Gen4 technology to provide users with high-performance storage to complement the latest CPUs and GPUs with unbound storage. With the introduction of the optional heatsink model, users can meet the increasingly high standards of future gaming platforms with speed and thermal stability.”

Kingston team

Kingston FURY Renegade SSD details

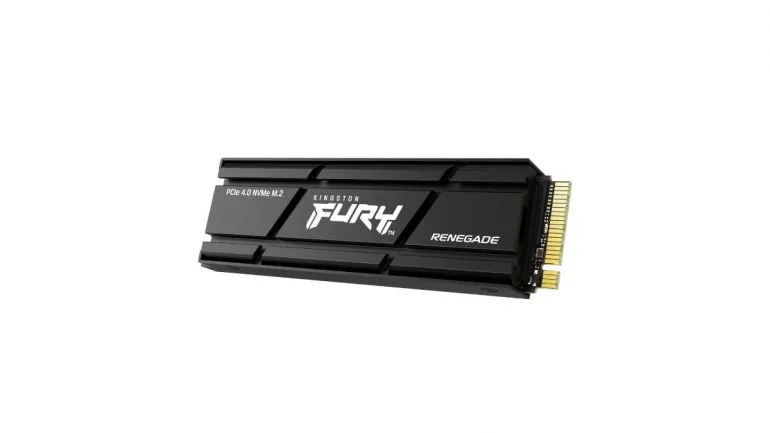

Kingston FURY Renegade PCIe 4.0 NVMe M.2 SSD with Heatsink Features and Specifications:

• Level up with PCIe 4.0 NVMe: Dominate with cutting-edge Gen 4×4 intense speeds up to 7,300/7,000MB/s1 read/write and up to 1,000,000 IOPS1 performance.
• More space to play: Get all the latest titles and DLC available. Performance with high capacities of up to 4TB2 to store your favorite games and media.

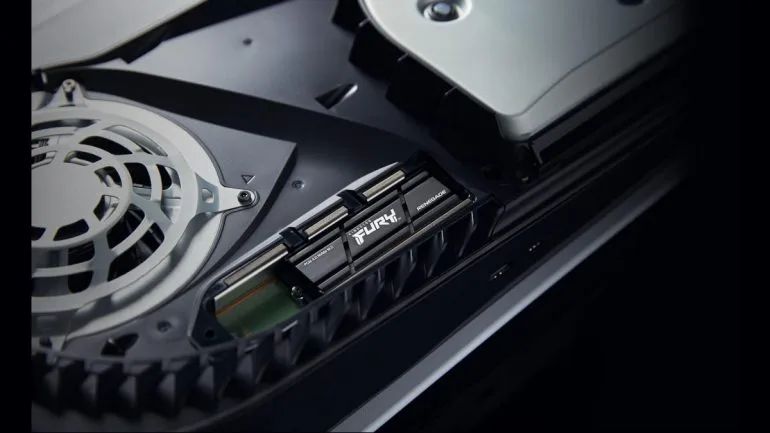

• PS5 Ready: Game-changing storage designed to maximize your play. The optional integrated aluminum heatsink model provides an additional layer of thermal dispersion to cool the drive and maintain peak performance.
• Form Factor: M.2 2280
• Interface: PCIe 4.0 x4 NVMe
• Capacities: 500GB, 1TB, 2TB, 4TB
• Controller: Phison E18
• NAND: 3D TLC
• Sequential Read/Write:
  • 500GB – 7,300/3,900MB/s
  • 1TB – 7,300/6,000MB/s
  • 2TB – 7,300/7,000MB/s
  • 4TB – 7,300/7,000MB/s
• Random 4K Read/Write:
  • 500GB – up to 450,000/900,000 IOPS
  • 1TB – up to 900,000/1,000,000 IOPS
  • 2TB – up to 1,000,000/1,000,000 IOPS
  • 4TB – up to 1,000,000/1,000,000 IOPS
• Endurance (Total Bytes Written):
  • 500GB – 500TB
  • 1TB – 1.0PB
  • 2TB – 2.0PB
  • 4TB – 4.0PB
• Power Consumption:
  • 500GB – 5mW Idle / 0.34W Avg / 2.7W (MAX) Read / 4.1W (MAX) Write
  • 1TB – 5mW Idle / 0.33W Avg / 2.8W (MAX) Read / 6.3W (MAX) Write
  • 2TB – 5mW Idle / 0.36W Avg / 2.8W (MAX) Read / 9.9W (MAX) Write
  • 4TB – 5mW Idle / 0.36W Avg / 2.7W (MAX) Read / 10.2W (MAX) Write
• Storage Temperature: -40°C~85°C
• Operating Temperature: 0°C~70°C
• Dimensions:
  • Heat spreader:
    • 500GB-1TB – 80mm x 22mm x 2.21mm
    • 2TB-4TB – 80mm x 22mm x 3.5mm
  • Heatsink:
    • 80mm x 23.67mm x 10.5mm
• Weight:
  • Heat spreader:
    • 500GB-1TB – 7g
    • 2TB-4TB – 9.7g
  • Heatsink:
    • 500GB-1TB – 32.1g
    • 2TB-4TB – 34.9g
• Vibration Operating: 2.17G Peak (7-800Hz)
• Vibration Non-operating: 20G Peak (20-1000Hz)
• MTBF: 1,800,000 hours
• Warranty/Support: Limited 5-year warranty with free technical support

For more information, click here.
